Description

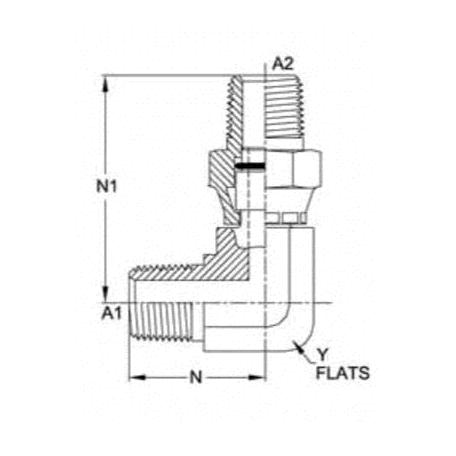

MP-MPS 90 Elbow
Description
Variations (4)
5700-04-04-FG
$52.82Attribute: 5700-04-04-FG (04MP-04MPS 90 Elb...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.220 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 1.650 |
| CENTERLINE LENGTH M IN | 1.070 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1771 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5700-06-06-FG
$65.91Attribute: 5700-06-06-FG (06MP-06MPS 90 Elb...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.340 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.640 |
| CENTERLINE LENGTH M IN | 1.220 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5700-08-08-FG
$97.61Attribute: 5700-08-08-FG (08MP-08MPS 90 Elb...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.44/0.46 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 0.937 |
| OVERALL LENGTH L IN | 2.027 |
| CENTERLINE LENGTH M IN | 1.490 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3687 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5700-12-12-FG
$120.25Attribute: 5700-12-12-FG (12MP-12MPS 90 Elb...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF SWIVEL |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.620 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 2.140 |
| CENTERLINE LENGTH M IN | 1.590 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.6 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | NPT |
|---|---|
| Shape | Elbow |
PDF Documents
Download CAD and Drawings
Open PDF
