Tube Fittings and Adapters

5653-FG

Scraped 2026-02-15 08:27:45

Description

Description

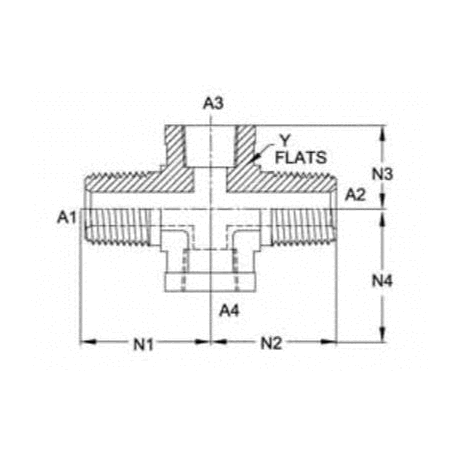

MP-MP-FP-FP Cross

Variations (2)

5653-04-04-04-04-FG

$68.18

Attribute: 5653-04-04-04-04-FG (04MP-04MP-0...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1/4-18
THREAD B1 DRILL IN0.281
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.281
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEFEMALE NPTF
THREAD 3 SIZE1/4-18
THREAD 3 DRILL IN0.281
THREAD 3 SPECIFICATIONSAE J476
THREAD 4 TYPEFEMALE NPTF
THREAD 4 SIZE1/4-18
THREAD 4 DRILL IN0.281
THREAD 4 SPECIFICATIONSAE J476
BODY HEX IN0.750
OVERALL LENGTH L IN2.180
OVERALL LENGTH L2 IN1.760
CENTERLINE LENGTH M IN1.090
CENTERLINE LENGTH M2 IN1.090
CENTERLINE LENGTH M3 IN0.880
CENTERLINE LENGTH M4 IN0.880
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.225
CALIFORNIA RESIDENTSPROP-65 WARNING

5653-06-06-06-06-FG

$46.37

Attribute: 5653-06-06-06-06-FG (06MP-06MP-0...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE3/8-18
THREAD B1 DRILL IN0.406
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.406
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEFEMALE NPTF
THREAD 3 SIZE3/8-18
THREAD 3 DRILL IN0.406
THREAD 3 SPECIFICATIONSAE J476
THREAD 4 TYPEFEMALE NPTF
THREAD 4 SIZE3/8-18
THREAD 4 DRILL IN0.406
THREAD 4 SPECIFICATIONSAE J476
BODY HEX IN0.875
OVERALL LENGTH L IN2.440
OVERALL LENGTH L2 IN2.040
CENTERLINE LENGTH M IN1.220
CENTERLINE LENGTH M2 IN1.220
CENTERLINE LENGTH M3 IN1.020
CENTERLINE LENGTH M4 IN1.020
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.3437
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections NPT
Shape Cross

PDF Documents

Download CAD and Drawings Open PDF
