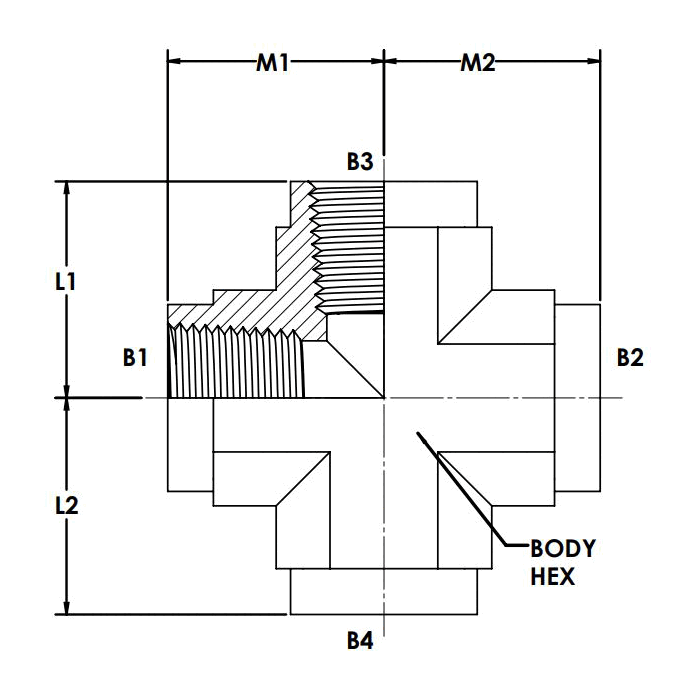

5652-FG

5652-02-02-02-02-FG

$23.78

Attribute: 5652-02-02-02-02-FG (02FP-02FP-0...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1/8-27
THREAD 4 DRILL IN	0.188
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.320
OVERALL LENGTH L2 IN	1.320
CENTERLINE LENGTH M IN	0.660
CENTERLINE LENGTH M2 IN	0.660
CENTERLINE LENGTH M3 IN	0.660
CENTERLINE LENGTH M4 IN	0.660
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-02-02-02-02-SS

$185.58

Attribute: 5652-02-02-02-02-SS (02FP-02FP-0...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1/8-27
THREAD 4 DRILL IN	0.188
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.320
OVERALL LENGTH L2 IN	1.320
CENTERLINE LENGTH M IN	0.660
CENTERLINE LENGTH M2 IN	0.660
CENTERLINE LENGTH M3 IN	0.660
CENTERLINE LENGTH M4 IN	0.660
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.112
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-04-04-04-04-FG

$29.83

Attribute: 5652-04-04-04-04-FG (04FP-04FP-0...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1/4-18
THREAD 4 DRILL IN	0.281
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.760
OVERALL LENGTH L2 IN	1.760
CENTERLINE LENGTH M IN	0.880
CENTERLINE LENGTH M2 IN	0.880
CENTERLINE LENGTH M3 IN	0.880
CENTERLINE LENGTH M4 IN	0.880
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-04-04-04-04-SS

$188.13

Attribute: 5652-04-04-04-04-SS (04FP-04FP-0...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1/4-18
THREAD 4 DRILL IN	0.281
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.760
OVERALL LENGTH L2 IN	1.760
CENTERLINE LENGTH M IN	0.880
CENTERLINE LENGTH M2 IN	0.880
CENTERLINE LENGTH M3 IN	0.880
CENTERLINE LENGTH M4 IN	0.880
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2312
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-06-06-06-06-FG

$34.30

Attribute: 5652-06-06-06-06-FG (06FP-06FP-0...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	3/8-18
THREAD 4 DRILL IN	0.406
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	2.040
CENTERLINE LENGTH M IN	1.020
CENTERLINE LENGTH M2 IN	1.020
CENTERLINE LENGTH M3 IN	1.020
CENTERLINE LENGTH M4 IN	1.020
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.325
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-06-06-06-06-SS

$263.64

Attribute: 5652-06-06-06-06-SS (06FP-06FP-0...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	3/8-18
THREAD 4 DRILL IN	0.406
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	2.040
CENTERLINE LENGTH M IN	1.020
CENTERLINE LENGTH M2 IN	1.020
CENTERLINE LENGTH M3 IN	1.020
CENTERLINE LENGTH M4 IN	1.020
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.283
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-08-08-08-08-FG

$49.32

Attribute: 5652-08-08-08-08-FG (08FP-08FP-0...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1/2-14
THREAD 4 DRILL IN	0.531
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.460
OVERALL LENGTH L2 IN	2.460
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	1.230
CENTERLINE LENGTH M3 IN	1.230
CENTERLINE LENGTH M4 IN	1.230
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-08-08-08-08-SS

$405.17

Attribute: 5652-08-08-08-08-SS (08FP-08FP-0...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1/2-14
THREAD 4 DRILL IN	0.531
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.460
OVERALL LENGTH L2 IN	2.460
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	1.230
CENTERLINE LENGTH M3 IN	1.230
CENTERLINE LENGTH M4 IN	1.230
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.596
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-12-12-12-12-FG

$97.66

Attribute: 5652-12-12-12-12-FG (12FP-12FP-1...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	3/4-14
THREAD 4 DRILL IN	0.719
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.720
OVERALL LENGTH L2 IN	2.720
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	1.360
CENTERLINE LENGTH M3 IN	1.360
CENTERLINE LENGTH M4 IN	1.360
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.88
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-12-12-12-12-SS

$339.79

Attribute: 5652-12-12-12-12-SS (12FP-12FP-1...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	3/4-14
THREAD 4 DRILL IN	0.719
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.720
OVERALL LENGTH L2 IN	2.720
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	1.360
CENTERLINE LENGTH M3 IN	1.360
CENTERLINE LENGTH M4 IN	1.360
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8312
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-16-16-16-16-FG

$141.42

Attribute: 5652-16-16-16-16-FG (16FP-16FP-1...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1-11-1/2
THREAD 4 DRILL IN	0.938
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	3.240
OVERALL LENGTH L2 IN	3.240
CENTERLINE LENGTH M IN	1.620
CENTERLINE LENGTH M2 IN	1.620
CENTERLINE LENGTH M3 IN	1.620
CENTERLINE LENGTH M4 IN	1.620
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.3062
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-16-16-16-16-SS

$739.64

Attribute: 5652-16-16-16-16-SS (16FP-16FP-1...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1-11-1/2
THREAD 4 DRILL IN	0.938
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	3.240
OVERALL LENGTH L2 IN	3.240
CENTERLINE LENGTH M IN	1.620
CENTERLINE LENGTH M2 IN	1.620
CENTERLINE LENGTH M3 IN	1.620
CENTERLINE LENGTH M4 IN	1.620
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.4687
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-20-20-20-20-FG

$229.24

Attribute: 5652-20-20-20-20-FG (20FP-20FP-2...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1-1/4-11-1/2
THREAD 4 DRILL IN	1.250
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	3.400
OVERALL LENGTH L2 IN	3.400
CENTERLINE LENGTH M IN	1.700
CENTERLINE LENGTH M2 IN	1.700
CENTERLINE LENGTH M3 IN	1.700
CENTERLINE LENGTH M4 IN	1.700
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-20-20-20-20-SS

$864.48

Attribute: 5652-20-20-20-20-SS (20FP-20FP-2...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1-1/4-11-1/2
THREAD 4 DRILL IN	1.250
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	3.400
OVERALL LENGTH L2 IN	3.400
CENTERLINE LENGTH M IN	1.700
CENTERLINE LENGTH M2 IN	1.700
CENTERLINE LENGTH M3 IN	1.700
CENTERLINE LENGTH M4 IN	1.700
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.3687
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-24-24-24-24-FG

$567.46

Attribute: 5652-24-24-24-24-FG (24FP-24FP-2...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/2-11-1/2
THREAD 3 DRILL IN	1.500
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1-1/2-11-1/2
THREAD 4 DRILL IN	1.500
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	2.561
OVERALL LENGTH L IN	4.160
OVERALL LENGTH L2 IN	4.160
CENTERLINE LENGTH M IN	2.080
CENTERLINE LENGTH M2 IN	2.080
CENTERLINE LENGTH M3 IN	2.080
CENTERLINE LENGTH M4 IN	2.080
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-24-24-24-24-SS

$2,682.23

Attribute: 5652-24-24-24-24-SS (24FP-24FP-2...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/2-11-1/2
THREAD 3 DRILL IN	1.500
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	1-1/2-11-1/2
THREAD 4 DRILL IN	1.500
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	2.561
OVERALL LENGTH L IN	4.160
OVERALL LENGTH L2 IN	4.160
CENTERLINE LENGTH M IN	2.080
CENTERLINE LENGTH M2 IN	2.080
CENTERLINE LENGTH M3 IN	2.080
CENTERLINE LENGTH M4 IN	2.080
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-32-32-32-32-FG

$525.72

Attribute: 5652-32-32-32-32-FG (32FP-32FP-3...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	2-11-1/2
THREAD 3 DRILL IN	1.938
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	2-11-1/2
THREAD 4 DRILL IN	1.938
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	2.812
OVERALL LENGTH L IN	4.780
OVERALL LENGTH L2 IN	4.780
CENTERLINE LENGTH M IN	2.390
CENTERLINE LENGTH M2 IN	2.390
CENTERLINE LENGTH M3 IN	2.390
CENTERLINE LENGTH M4 IN	2.390
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.8687
CALIFORNIA RESIDENTS	PROP-65 WARNING

5652-32-32-32-32-SS

$6,702.87

Attribute: 5652-32-32-32-32-SS (32FP-32FP-3...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	2-11-1/2
THREAD 3 DRILL IN	1.938
THREAD 3 SPECIFICATION	SAE J476
THREAD 4 TYPE	FEMALE NPTF
THREAD 4 SIZE	2-11-1/2
THREAD 4 DRILL IN	1.938
THREAD 4 SPECIFICATION	SAE J476
BODY HEX IN	2.812
OVERALL LENGTH L IN	4.780
OVERALL LENGTH L2 IN	4.780
CENTERLINE LENGTH M IN	2.390
CENTERLINE LENGTH M2 IN	2.390
CENTERLINE LENGTH M3 IN	2.390
CENTERLINE LENGTH M4 IN	2.390
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT
Shape	Cross

ID	10145293
Category	Tube Fittings and Adapters

Description

Description

Variations (18)

5652-02-02-02-02-FG

5652-02-02-02-02-SS

5652-04-04-04-04-FG

5652-04-04-04-04-SS

5652-06-06-06-06-FG

5652-06-06-06-06-SS

5652-08-08-08-08-FG

5652-08-08-08-08-SS

5652-12-12-12-12-FG

5652-12-12-12-12-SS

5652-16-16-16-16-FG

5652-16-16-16-16-SS

5652-20-20-20-20-FG

5652-20-20-20-20-SS

5652-24-24-24-24-FG

5652-24-24-24-24-SS

5652-32-32-32-32-FG

5652-32-32-32-32-SS

General Attributes

PDF Documents
