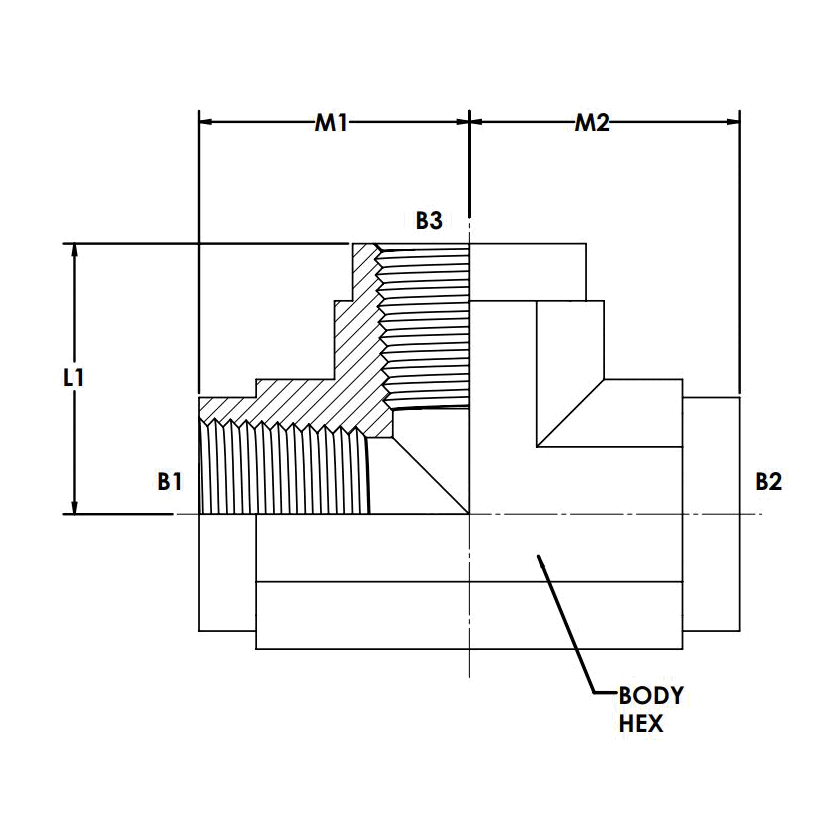

5605-FG

5605-02-02-02-FG

$12.11

Attribute: 5605-02-02-02-FG (02FP-02FP-02FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	0.660
CENTERLINE LENGTH M2 IN	0.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.082
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-02-02-02-SS

$104.79

Attribute: 5605-02-02-02-SS (02FP-02FP-02FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	0.660
CENTERLINE LENGTH M2 IN	0.660
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0859
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-04-04-02-FG

$23.08

Attribute: 5605-04-04-02-FG (04FP-04FP-02FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	0.880
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-04-04-04-FG

$13.43

Attribute: 5605-04-04-04-FG (04FP-04FP-04FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	0.880
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.19
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-04-04-04-SS

$136.60

Attribute: 5605-04-04-04-SS (04FP-04FP-04FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	0.880
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-04-04-06-FG

$30.46

Attribute: 5605-04-04-06-FG (04FP-04FP-06FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.010
CENTERLINE LENGTH M2 IN	1.010
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	5
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-06-06-06-FG

$19.64

Attribute: 5605-06-06-06-FG (06FP-06FP-06FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.020
CENTERLINE LENGTH M2 IN	1.020
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.26
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-06-06-06-SS

$155.80

Attribute: 5605-06-06-06-SS (06FP-06FP-06FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.020
CENTERLINE LENGTH M2 IN	1.020
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2771
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-08-08-08-FG

$28.55

Attribute: 5605-08-08-08-FG (08FP-08FP-08FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.452
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-08-08-08-SS

$274.32

Attribute: 5605-08-08-08-SS (08FP-08FP-08FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4739
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-12-12-12-FG

$41.54

Attribute: 5605-12-12-12-FG (12FP-12FP-12FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.682
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-12-12-12-SS

$408.91

Attribute: 5605-12-12-12-SS (12FP-12FP-12FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.719
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-16-16-16-FG

$65.12

Attribute: 5605-16-16-16-FG (16FP-16FP-16FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.620
CENTERLINE LENGTH M2 IN	1.620
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.178
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-16-16-16-SS

$796.99

Attribute: 5605-16-16-16-SS (16FP-16FP-16FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.620
CENTERLINE LENGTH M2 IN	1.620
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-20-20-20-FG

$133.54

Attribute: 5605-20-20-20-FG (20FP-20FP-20FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.075
OVERALL LENGTH L IN	1.875
CENTERLINE LENGTH M IN	1.700
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.4687
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-20-20-20-SS

$1,532.05

Attribute: 5605-20-20-20-SS (20FP-20FP-20FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.075
OVERALL LENGTH L IN	1.875
CENTERLINE LENGTH M IN	1.700
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.1445
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-24-24-24-FG

$239.13

Attribute: 5605-24-24-24-FG (24FP-24FP-24FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/2-11-1/2
THREAD 3 DRILL IN	1.500
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.562
CENTERLINE LENGTH M IN	2.080
CENTERLINE LENGTH M2 IN	2.080
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-24-24-24-SS

$2,235.22

Attribute: 5605-24-24-24-SS (24FP-24FP-24FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/2-11-1/2
THREAD 3 DRILL IN	1.500
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.562
CENTERLINE LENGTH M IN	2.080
CENTERLINE LENGTH M2 IN	2.080
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.1102
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-32-32-32-FG

$324.83

Attribute: 5605-32-32-32-FG (32FP-32FP-32FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	2-11-1/2
THREAD 3 DRILL IN	1.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.812
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.390
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.425
CALIFORNIA RESIDENTS	PROP-65 WARNING

5605-32-32-32-SS

$2,530.02

Attribute: 5605-32-32-32-SS (32FP-32FP-32FP...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	2-11-1/2
THREAD 3 DRILL IN	1.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.812
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.390
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.3937
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT
Shape	Tee

ID	10145265
Category	Tube Fittings and Adapters

Description

Description

Variations (20)

5605-02-02-02-FG

5605-02-02-02-SS

5605-04-04-02-FG

5605-04-04-04-FG

5605-04-04-04-SS

5605-04-04-06-FG

5605-06-06-06-FG

5605-06-06-06-SS

5605-08-08-08-FG

5605-08-08-08-SS

5605-12-12-12-FG

5605-12-12-12-SS

5605-16-16-16-FG

5605-16-16-16-SS

5605-20-20-20-FG

5605-20-20-20-SS

5605-24-24-24-FG

5605-24-24-24-SS

5605-32-32-32-FG

5605-32-32-32-SS

General Attributes

PDF Documents
