5603-FG

5603-02-02-02-FG

$18.31

Attribute: 5603-02-02-02-FG (02MP-02FP-02MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476

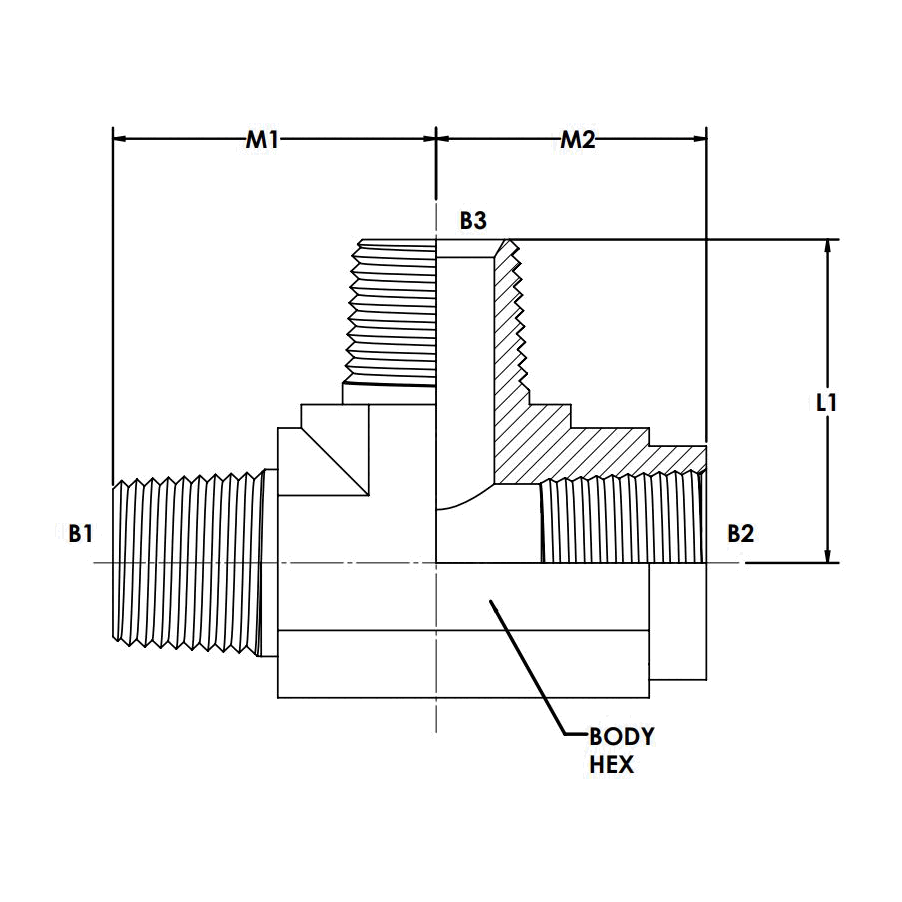

BODY HEX IN	0.562
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.780
CENTERLINE LENGTH M2 IN	0.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0851
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-02-02-02-SS

$331.97

Attribute: 5603-02-02-02-SS (02MP-02FP-02MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.780
CENTERLINE LENGTH M2 IN	0.660
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-04-04-04-FG

$18.86

Attribute: 5603-04-04-04-FG (04MP-04FP-04MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.197
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-04-04-04-SS

$423.03

Attribute: 5603-04-04-04-SS (04MP-04FP-04MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1946
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-06-06-04-FG

$26.11

Attribute: 5603-06-06-04-FG (06MP-06FP-04MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-06-06-06-FG

$26.18

Attribute: 5603-06-06-06-FG (06MP-06FP-06MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.020
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2908
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-06-06-06-SS

$290.72

Attribute: 5603-06-06-06-SS (06MP-06FP-06MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.020
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.275
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-08-08-08-FG

$29.63

Attribute: 5603-08-08-08-FG (08MP-08FP-08MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.470
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4562
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-08-08-08-SS

$762.09

Attribute: 5603-08-08-08-SS (08MP-08FP-08MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.470
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.45
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-12-12-12-FG

$62.61

Attribute: 5603-12-12-12-FG (12MP-12FP-12MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.590
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6812
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-12-12-12-SS

$906.66

Attribute: 5603-12-12-12-SS (12MP-12FP-12MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.590
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7338
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-16-16-16-FG

$108.93

Attribute: 5603-16-16-16-FG (16MP-16FP-16MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.970
CENTERLINE LENGTH M2 IN	1.620
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.34
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-16-16-16-SS

$1,370.06

Attribute: 5603-16-16-16-SS (16MP-16FP-16MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.970
CENTERLINE LENGTH M2 IN	1.620
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-20-20-20-FG

$192.86

Attribute: 5603-20-20-20-FG (20MP-20FP-20MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.380
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-20-20-20-SS

$1,547.95

Attribute: 5603-20-20-20-SS (20MP-20FP-20MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.380
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

5603-24-24-24-FG

$481.21

Attribute: 5603-24-24-24-FG (24MP-24FP-24MP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE NPTF
THREAD 3 SIZE	1-1/2-11-1/2
THREAD 3 DRILL IN	1.500
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.640
CENTERLINE LENGTH M2 IN	2.080
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.83
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT
Shape	Tee

ID	10145221
Category	Tube Fittings and Adapters

Description

Description

Variations (16)

5603-02-02-02-FG

5603-02-02-02-SS

5603-04-04-04-FG

5603-04-04-04-SS

5603-06-06-04-FG

5603-06-06-06-FG

5603-06-06-06-SS

5603-08-08-08-FG

5603-08-08-08-SS

5603-12-12-12-FG

5603-12-12-12-SS

5603-16-16-16-FG

5603-16-16-16-SS

5603-20-20-20-FG

5603-20-20-20-SS

5603-24-24-24-FG

General Attributes

PDF Documents
