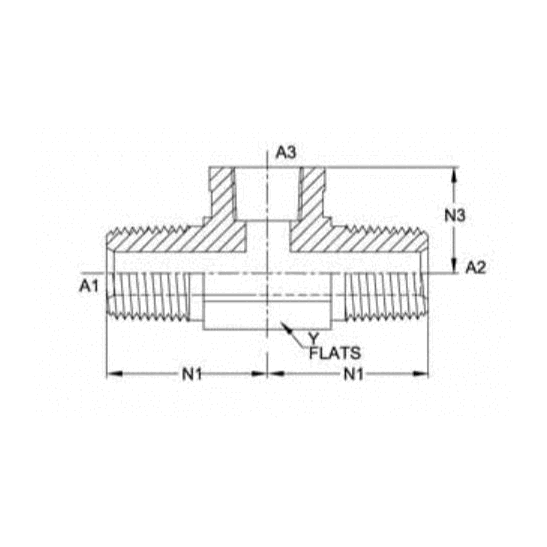

5601-FG

5601-02-02-02-FG

$23.14

Attribute: 5601-02-02-02-FG (02MP-02MP-02FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	0.780
CENTERLINE LENGTH M2 IN	0.780
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-02-02-02-SS

$129.16

Attribute: 5601-02-02-02-SS (02MP-02MP-02FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	0.780
CENTERLINE LENGTH M2 IN	0.780
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-04-04-04-FG

$27.96

Attribute: 5601-04-04-04-FG (04MP-04MP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-04-04-04-SS

$264.19

Attribute: 5601-04-04-04-SS (04MP-04MP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2041
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-06-06-06-FG

$27.91

Attribute: 5601-06-06-06-FG (06MP-06MP-06FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2937
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-06-06-06-SS

$304.06

Attribute: 5601-06-06-06-SS (06MP-06MP-06FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2805
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-08-08-08-FG

$53.36

Attribute: 5601-08-08-08-FG (08MP-08MP-08FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.470
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.475
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-08-08-08-SS

$388.24

Attribute: 5601-08-08-08-SS (08MP-08MP-08FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.470
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4775
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-12-12-12-FG

$77.23

Attribute: 5601-12-12-12-FG (12MP-12MP-12FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.590
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.725
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-12-12-12-SS

$909.90

Attribute: 5601-12-12-12-SS (12MP-12MP-12FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.590
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.797
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-16-16-16-FG

$115.09

Attribute: 5601-16-16-16-FG (16MP-16MP-16FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.970
CENTERLINE LENGTH M2 IN	1.970
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-16-16-16-SS

$1,035.58

Attribute: 5601-16-16-16-SS (16MP-16MP-16FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.970
CENTERLINE LENGTH M2 IN	1.970
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.35
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-20-20-20-FG

$156.38

Attribute: 5601-20-20-20-FG (20MP-20MP-20FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	2.380
CENTERLINE LENGTH M2 IN	2.380
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.8
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-24-24-24-FG

$415.45

Attribute: 5601-24-24-24-FG (24MP-24MP-24FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/2-11-1/2
THREAD 3 DRILL IN	1.500
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.080
CENTERLINE LENGTH M IN	2.640
CENTERLINE LENGTH M2 IN	2.640
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

5601-32-32-32-FG

$830.56

Attribute: 5601-32-32-32-FG (32MP-32MP-32FP...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	2-11-1/2
THREAD 3 DRILL IN	1.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.812
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	3.000
CENTERLINE LENGTH M2 IN	3.000
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	5
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT
Shape	Tee

ID	10145177
Category	Tube Fittings and Adapters
