Description

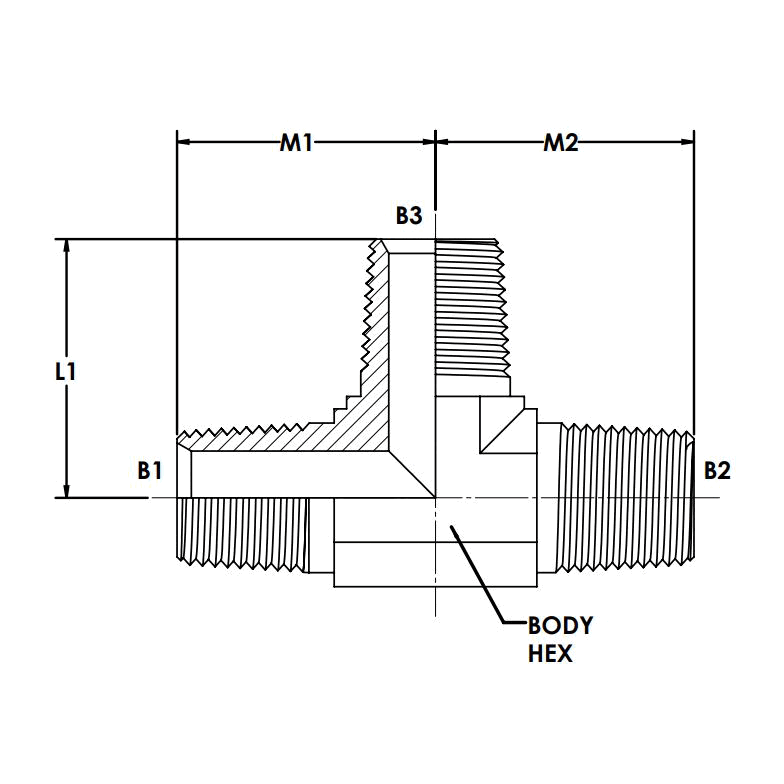

MP-MP-MP TEE
Description
Variations (16)
5600-02-02-02-FG
$23.43Attribute: 5600-02-02-02-FG (02MP-02MP-02MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/8-27 |
| THREAD 3 DRILL IN | 0.188 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.438 |
| OVERALL LENGTH L IN | 0.780 |
| CENTERLINE LENGTH M IN | 0.780 |
| CENTERLINE LENGTH M2 IN | 0.780 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0625 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.683 |
5600-02-02-02-SS
$68.03Attribute: 5600-02-02-02-SS (02MP-02MP-02MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL IN | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/8-27 |
| THREAD 3 DRILL IN | 0.188 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.438 |
| OVERALL LENGTH L IN | 0.780 |
| CENTERLINE LENGTH M IN | 0.780 |
| CENTERLINE LENGTH M2 IN | 0.780 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.683 |
5600-04-04-04-FG
$21.90Attribute: 5600-04-04-04-FG (04MP-04MP-04MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1375 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.68 |
5600-04-04-04-SS
$97.96Attribute: 5600-04-04-04-SS (04MP-04MP-04MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.2812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.68 |
5600-06-06-06-FG
$32.25Attribute: 5600-06-06-06-FG (06MP-06MP-06MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.406 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 1.220 |
| CENTERLINE LENGTH M IN | 1.220 |
| CENTERLINE LENGTH M2 IN | 1.220 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2438 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.919 |
5600-06-06-06-SS
$197.48Attribute: 5600-06-06-06-SS (06MP-06MP-06MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.406 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 1.220 |
| CENTERLINE LENGTH M IN | 1.220 |
| CENTERLINE LENGTH M2 IN | 1.220 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.2311 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.919 |
5600-08-08-08-FG
$42.08Attribute: 5600-08-08-08-FG (08MP-08MP-08MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.531 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 1.470 |
| CENTERLINE LENGTH M IN | 1.470 |
| CENTERLINE LENGTH M2 IN | 1.470 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3651 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.907 |
5600-08-08-08-SS
$247.99Attribute: 5600-08-08-08-SS (08MP-08MP-08MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.531 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 1.470 |
| CENTERLINE LENGTH M IN | 1.470 |
| CENTERLINE LENGTH M2 IN | 1.470 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3625 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.907 |
5600-12-12-12-FG
$51.49Attribute: 5600-12-12-12-FG (12MP-12MP-12MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 3/4-14 |
| THREAD 3 DRILL IN | 0.719 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 1.590 |
| CENTERLINE LENGTH M IN | 1.590 |
| CENTERLINE LENGTH M2 IN | 1.590 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5187 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.163 |
5600-12-12-12-SS
$507.99Attribute: 5600-12-12-12-SS (12MP-12MP-12MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 3/4-14 |
| THREAD 3 DRILL IN | 0.719 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 1.590 |
| CENTERLINE LENGTH M IN | 1.590 |
| CENTERLINE LENGTH M2 IN | 1.590 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.55 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.163 |
5600-16-16-16-FG
$136.06Attribute: 5600-16-16-16-FG (16MP-16MP-16MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.938 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1-11-1/2 |
| THREAD 3 DRILL IN | 0.938 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 1.970 |
| CENTERLINE LENGTH M IN | 1.970 |
| CENTERLINE LENGTH M2 IN | 1.970 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.95 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 13.575 |
5600-16-16-16-SS
$580.51Attribute: 5600-16-16-16-SS (16MP-16MP-16MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.938 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1-11-1/2 |
| THREAD 3 DRILL IN | 0.938 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 1.970 |
| CENTERLINE LENGTH M IN | 1.970 |
| CENTERLINE LENGTH M2 IN | 1.970 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.9583 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 13.575 |
5600-20-20-20-FG
$226.49Attribute: 5600-20-20-20-FG (20MP-20MP-20MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.250 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-1/4-11-1/2 |
| THREAD B2 DRILL IN | 1.250 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1-1/4-11-1/2 |
| THREAD 3 DRILL IN | 1.250 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.380 |
| CENTERLINE LENGTH M IN | 2.380 |
| CENTERLINE LENGTH M2 IN | 2.380 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.6 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 24.694 |
5600-24-24-24-FG
$256.41Attribute: 5600-24-24-24-FG (24MP-24MP-24MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL IN | 1.500 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-1/2-11-1/2 |
| THREAD B2 DRILL IN | 1.500 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1-1/2-11-1/2 |
| THREAD 3 DRILL IN | 1.500 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 2.640 |
| CENTERLINE LENGTH M IN | 2.640 |
| CENTERLINE LENGTH M2 IN | 2.640 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.9312 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 35.417 |
5600-32-32-32-FG
$473.93Attribute: 5600-32-32-32-FG (32MP-32MP-32MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 2-11-1/2 |
| THREAD B1 DRILL IN | 1.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 2-11-1/2 |
| THREAD B2 DRILL IN | 1.938 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 2-11-1/2 |
| THREAD 3 DRILL IN | 1.938 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 2.500 |
| OVERALL LENGTH L IN | 3.000 |
| CENTERLINE LENGTH M IN | 3.000 |
| CENTERLINE LENGTH M2 IN | 3.000 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 3.7872 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 63.75 |
5600-32-32-32-SS
$2,395.44Attribute: 5600-32-32-32-SS (32MP-32MP-32MP...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 2-11-1/2 |
| THREAD B1 DRILL IN | 1.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 2-11-1/2 |
| THREAD B2 DRILL IN | 1.938 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 2-11-1/2 |
| THREAD 3 DRILL IN | 1.938 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 2.500 |
| OVERALL LENGTH L IN | 3.000 |
| CENTERLINE LENGTH M IN | 3.000 |
| CENTERLINE LENGTH M2 IN | 3.000 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 12.6 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 63.75 |
General Attributes
| Connections | NPT |
|---|---|
| Shape | Tee |
PDF Documents
Download CAD and Drawings
Open PDF
