5502-FG

5502-01-02-FG

$18.26

Attribute: 5502-01-02-FG (01MP-02FP 90 Stre...)

Stock Status: True

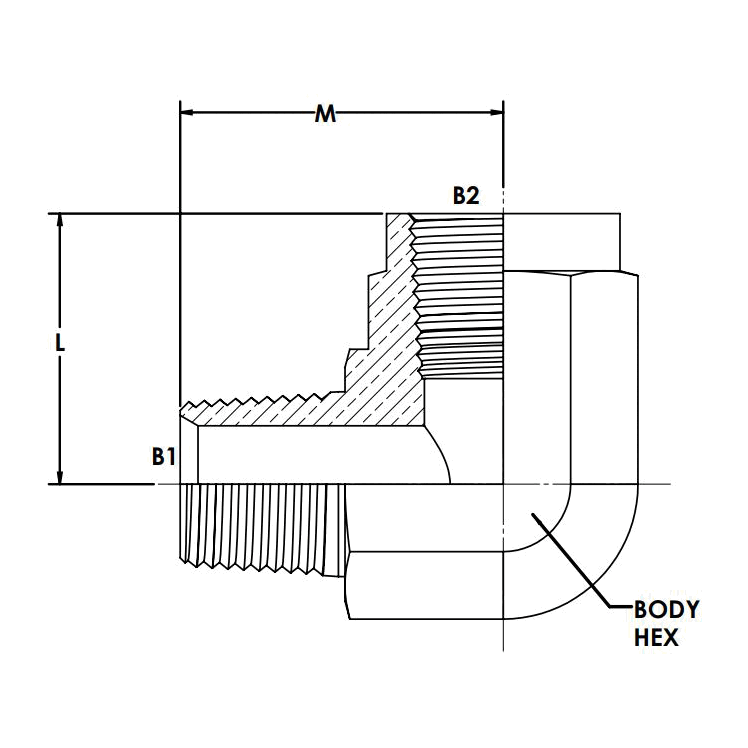

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/16-27
THREAD B1 DRILL IN	0.117
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.561

5502-02-02-FG

$8.32

Attribute: 5502-02-02-FG (02MP-02FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0687
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.561

5502-02-02-SS

$46.86

Attribute: 5502-02-02-SS (02MP-02FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0687
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.561

5502-02-04-FG

$13.09

Attribute: 5502-02-04-FG (02MP-04FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	0.900
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.145
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.2

5502-02-04-SS

$58.28

Attribute: 5502-02-04-SS (02MP-04FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	0.900
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.15
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.2

5502-02-06-FG

$24.07

Attribute: 5502-02-06-FG (02MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.030
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2125
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.872

5502-02-06-SS

$106.03

Attribute: 5502-02-06-SS (02MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.030
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.872

5502-04-02-FG

$13.39

Attribute: 5502-04-02-FG (04MP-02FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.725

5502-04-02-SS

$190.54

Attribute: 5502-04-02-SS (04MP-02FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.725

5502-04-04-FG

$9.89

Attribute: 5502-04-04-FG (04MP-04FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.148
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.379

5502-04-04-SS

$105.05

Attribute: 5502-04-04-SS (04MP-04FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1663
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.379

5502-04-06-FG

$17.09

Attribute: 5502-04-06-FG (04MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.225
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.114

5502-04-06-SS

$170.41

Attribute: 5502-04-06-SS (04MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2289
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.114

5502-06-04-FG

$18.31

Attribute: 5502-06-04-FG (06MP-04FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.010
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.243
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.099

5502-06-04-SS

$112.70

Attribute: 5502-06-04-SS (06MP-04FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.010
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.375
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.099

5502-06-06-FG

$12.21

Attribute: 5502-06-06-FG (06MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2351
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.114

5502-06-06-SS

$109.43

Attribute: 5502-06-06-SS (06MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2312
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.114

5502-06-08-FG

$19.89

Attribute: 5502-06-08-FG (06MP-08FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.280
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.325
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.387

5502-06-08-SS

$393.20

Attribute: 5502-06-08-SS (06MP-08FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.280
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3755
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.387

5502-08-04-FG

$20.77

Attribute: 5502-08-04-FG (08MP-04FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.010
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2562
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.416

5502-08-04-SS

$186.12

Attribute: 5502-08-04-SS (08MP-04FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.010
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.416

5502-08-06-FG

$20.93

Attribute: 5502-08-06-FG (08MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.25
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.433

5502-08-06-SS

$230.23

Attribute: 5502-08-06-SS (08MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2458
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.433

5502-08-08-FG

$18.56

Attribute: 5502-08-08-FG (08MP-08FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.366
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.742

5502-08-08-SS

$205.02

Attribute: 5502-08-08-SS (08MP-08FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4062
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.742

5502-08-12-FG

$38.50

Attribute: 5502-08-12-FG (08MP-12FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6312
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.941

5502-08-12-SS

$398.76

Attribute: 5502-08-12-SS (08MP-12FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5669
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.941

5502-12-06-FG

$59.01

Attribute: 5502-12-06-FG (12MP-06FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.040
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4125
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.539

5502-12-08-FG

$34.66

Attribute: 5502-12-08-FG (12MP-08FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4011
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.967

5502-12-08-SS

$561.21

Attribute: 5502-12-08-SS (12MP-08FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.967

5502-12-12-FG

$31.89

Attribute: 5502-12-12-FG (12MP-12FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.941

5502-12-12-SS

$337.13

Attribute: 5502-12-12-SS (12MP-12FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.6278
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.941

5502-12-16-FG

$68.56

Attribute: 5502-12-16-FG (12MP-16FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.770
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.05
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.208

5502-12-16-SS

$889.38

Attribute: 5502-12-16-SS (12MP-16FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.770
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.208

5502-16-12-FG

$68.86

Attribute: 5502-16-12-FG (16MP-12FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6187
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.946

5502-16-16-FG

$51.93

Attribute: 5502-16-16-FG (16MP-16FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.0937
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.999

5502-16-16-SS

$705.97

Attribute: 5502-16-16-SS (16MP-16FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.0761
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.999

5502-16-20-FG

$114.24

Attribute: 5502-16-20-FG (16MP-20FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	2.350
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5437
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.258

5502-20-16-FG

$76.06

Attribute: 5502-20-16-FG (20MP-16FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	2.380
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.0125
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	12.619

5502-20-20-FG

$89.35

Attribute: 5502-20-20-FG (20MP-20FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	2.380
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.406

5502-20-20-SS

$1,077.28

Attribute: 5502-20-20-SS (20MP-20FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	2.380
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.4562
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.406

5502-20-24-FG

$264.57

Attribute: 5502-20-24-FG (20MP-24FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.080
CENTERLINE LENGTH M IN	2.610
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.5
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	33.505

5502-24-20-FG

$115.63

Attribute: 5502-24-20-FG (24MP-20FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	2.640
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.3125
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	17.692

5502-24-24-FG

$184.83

Attribute: 5502-24-24-FG (24MP-24FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.080
CENTERLINE LENGTH M IN	2.640
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.9437
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	33.763

5502-24-24-SS

$1,420.90

Attribute: 5502-24-24-SS (24MP-24FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.080
CENTERLINE LENGTH M IN	2.640
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.4429
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	33.763

5502-32-32-FG

$515.18

Attribute: 5502-32-32-FG (32MP-32FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.812
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	3.000
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.2812
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	47.031

5502-32-32-SS

$2,761.43

Attribute: 5502-32-32-SS (32MP-32FP 90 Stre...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.812
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	3.000
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.4812
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	47.031

Connections	NPT
Shape	Elbow

ID	10145010
Category	Tube Fittings and Adapters

Description

Description

Variations (47)

5502-01-02-FG

5502-02-02-FG

5502-02-02-SS

5502-02-04-FG

5502-02-04-SS

5502-02-06-FG

5502-02-06-SS

5502-04-02-FG

5502-04-02-SS

5502-04-04-FG

5502-04-04-SS

5502-04-06-FG

5502-04-06-SS

5502-06-04-FG

5502-06-04-SS

5502-06-06-FG

5502-06-06-SS

5502-06-08-FG

5502-06-08-SS

5502-08-04-FG

5502-08-04-SS

5502-08-06-FG

5502-08-06-SS

5502-08-08-FG

5502-08-08-SS

5502-08-12-FG

5502-08-12-SS

5502-12-06-FG

5502-12-08-FG

5502-12-08-SS

5502-12-12-FG

5502-12-12-SS

5502-12-16-FG

5502-12-16-SS

5502-16-12-FG

5502-16-16-FG

5502-16-16-SS

5502-16-20-FG

5502-20-16-FG

5502-20-20-FG

5502-20-20-SS

5502-20-24-FG

5502-24-20-FG

5502-24-24-FG

5502-24-24-SS

5502-32-32-FG

5502-32-32-SS

General Attributes

PDF Documents
