5500-FG

5500-02-02-FG

$8.86

Attribute: 5500-02-02-FG (02MP-02MP 90 Elbo...)

Stock Status: True

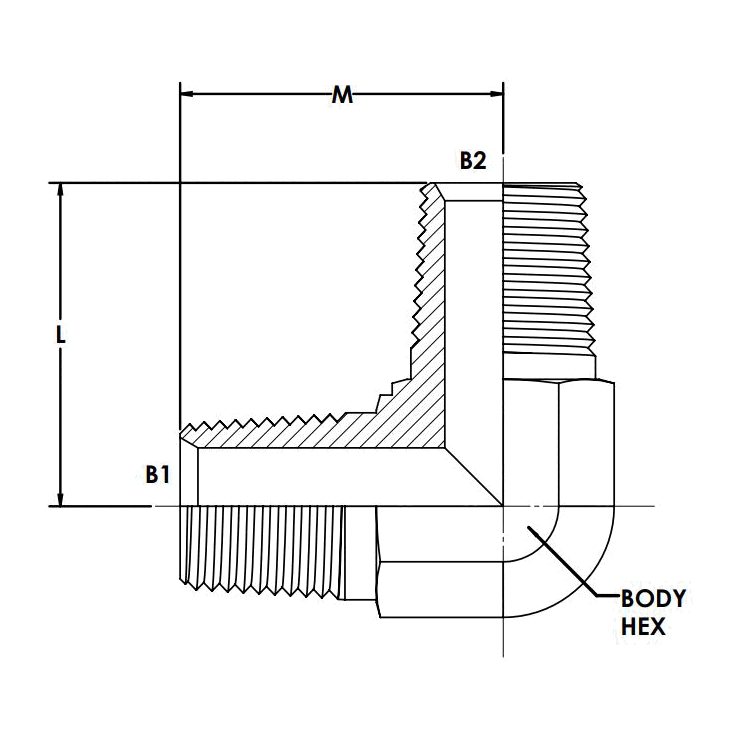

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.046
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.437

5500-02-02-SS

$38.79

Attribute: 5500-02-02-SS (02MP-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.05
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.437

5500-04-02-FG

$19.74

Attribute: 5500-04-02-FG (04MP-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.900
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.91

5500-04-02-SS

$60.60

Attribute: 5500-04-02-SS (04MP-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.900
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.09
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.91

5500-04-04-FG

$8.22

Attribute: 5500-04-04-FG (04MP-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.098
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.056

5500-04-04-SS

$63.79

Attribute: 5500-04-04-SS (04MP-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1062
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.056

5500-06-02-FG

$19.84

Attribute: 5500-06-02-FG (06MP-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.175
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.681

5500-06-04-FG

$17.47

Attribute: 5500-06-04-FG (06MP-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1871
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.908

5500-06-04-SS

$84.44

Attribute: 5500-06-04-SS (06MP-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1733
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.908

5500-06-06-FG

$12.11

Attribute: 5500-06-06-FG (06MP-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.18
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.908

5500-06-06-SS

$116.40

Attribute: 5500-06-06-SS (06MP-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1833
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.908

5500-08-04-FG

$26.28

Attribute: 5500-08-04-FG (08MP-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.280
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.275
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.867

5500-08-06-FG

$18.46

Attribute: 5500-08-06-FG (08MP-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.280
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2656
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.867

5500-08-06-SS

$301.06

Attribute: 5500-08-06-SS (08MP-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.280
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.26
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.867

5500-08-08-FG

$16.93

Attribute: 5500-08-08-FG (08MP-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.268
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.184

5500-08-08-SS

$153.73

Attribute: 5500-08-08-SS (08MP-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2687
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.184

5500-12-06-FG

$44.99

Attribute: 5500-12-06-FG (12MP-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.400
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3937
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.35

5500-12-08-FG

$28.99

Attribute: 5500-12-08-FG (12MP-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4125
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.778

5500-12-08-SS

$219.15

Attribute: 5500-12-08-SS (12MP-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4412
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.778

5500-12-12-FG

$25.15

Attribute: 5500-12-12-FG (12MP-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.406
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.778

5500-12-12-SS

$240.22

Attribute: 5500-12-12-SS (12MP-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4141
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.778

5500-16-08-FG

$45.98

Attribute: 5500-16-08-FG (16MP-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7187
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.393

5500-16-12-FG

$47.69

Attribute: 5500-16-12-FG (16MP-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.71
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.393

5500-16-16-FG

$38.74

Attribute: 5500-16-16-FG (16MP-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7187
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.047

5500-16-16-SS

$444.64

Attribute: 5500-16-16-SS (16MP-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.047

5500-20-16-FG

$173.31

Attribute: 5500-20-16-FG (20MP-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.350
CENTERLINE LENGTH M IN	2.380
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.175
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.406

5500-20-20-FG

$90.28

Attribute: 5500-20-20-FG (20MP-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.380
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.225
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.562

5500-20-20-SS

$565.88

Attribute: 5500-20-20-SS (20MP-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.380
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.017
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.562

5500-24-24-FG

$120.45

Attribute: 5500-24-24-FG (24MP-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.640
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.1
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	23.997

5500-24-24-SS

$855.03

Attribute: 5500-24-24-SS (24MP-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.640
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.55
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	23.997

5500-32-32-FG

$846.16

Attribute: 5500-32-32-FG (32MP-32MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.000
CENTERLINE LENGTH M IN	3.000
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.0003
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	45.156

5500-32-32-SS

$2,282.77

Attribute: 5500-32-32-SS (32MP-32MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.000
CENTERLINE LENGTH M IN	3.000
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	45.156

Connections	NPT
Shape	Elbow

ID	10144950
Category	Tube Fittings and Adapters

Description

Description

Variations (32)

5500-02-02-FG

5500-02-02-SS

5500-04-02-FG

5500-04-02-SS

5500-04-04-FG

5500-04-04-SS

5500-06-02-FG

5500-06-04-FG

5500-06-04-SS

5500-06-06-FG

5500-06-06-SS

5500-08-04-FG

5500-08-06-FG

5500-08-06-SS

5500-08-08-FG

5500-08-08-SS

5500-12-06-FG

5500-12-08-FG

5500-12-08-SS

5500-12-12-FG

5500-12-12-SS

5500-16-08-FG

5500-16-12-FG

5500-16-16-FG

5500-16-16-SS

5500-20-16-FG

5500-20-20-FG

5500-20-20-SS

5500-24-24-FG

5500-24-24-SS

5500-32-32-FG

5500-32-32-SS

General Attributes

PDF Documents
