Description

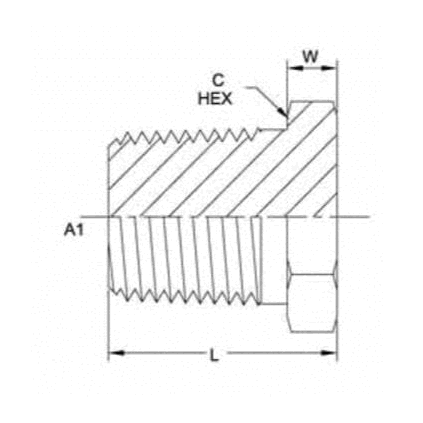

EXTERNAL Hex Pipe Plug
Description
Variations (25)
5406-P-01
$17.37Attribute: 5406-P-01 (01 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/16-27 |
| THREAD B1 DRILL IN | 0.117 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.312 |
| OVERALL LENGTH L IN | 0.531 |
| OVERALL LENGTH L2 IN | 0.151 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-02
$1.23Attribute: 5406-P-02 (02 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.220 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.438 |
| OVERALL LENGTH L IN | 0.562 |
| OVERALL LENGTH L2 IN | 0.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.02 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-02-B
$4.14Attribute: 5406-P-02-B (02 NPTF Hex Head Pi...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.220 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.438 |
| OVERALL LENGTH L IN | 0.562 |
| OVERALL LENGTH L2 IN | 0.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| WEIGHT LBS | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-02-SS
$17.97Attribute: 5406-P-02-SS (02 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.220 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.438 |
| OVERALL LENGTH L IN | 0.562 |
| OVERALL LENGTH L2 IN | 0.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.02 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-04
$1.73Attribute: 5406-P-04 (04 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.750 |
| OVERALL LENGTH L2 IN | 0.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0433 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-04-B
$6.15Attribute: 5406-P-04-B (04 NPTF Hex Head Pi...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.750 |
| OVERALL LENGTH L2 IN | 0.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| WEIGHT LBS | 0.05 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-04-SS
$21.31Attribute: 5406-P-04-SS (04 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.750 |
| OVERALL LENGTH L2 IN | 0.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.06 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-06
$2.37Attribute: 5406-P-06 (06 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 0.710 |
| OVERALL LENGTH L2 IN | 0.220 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0722 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-06-B
$9.81Attribute: 5406-P-06-B (06 NPTF Hex Head Pi...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 0.710 |
| OVERALL LENGTH L2 IN | 0.220 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| WEIGHT LBS | 0.0187 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-06-SS
$27.32Attribute: 5406-P-06-SS (06 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 0.710 |
| OVERALL LENGTH L2 IN | 0.220 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.06 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-08
$4.24Attribute: 5406-P-08 (08 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 1.120 |
| OVERALL LENGTH L2 IN | 0.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1666 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-08-B
$17.45Attribute: 5406-P-08-B (08 NPTF Hex Head Pi...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 1.120 |
| OVERALL LENGTH L2 IN | 0.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-08-SS
$42.92Attribute: 5406-P-08-SS (08 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 1.120 |
| OVERALL LENGTH L2 IN | 0.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.14 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-12
$8.42Attribute: 5406-P-12 (12 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.170 |
| OVERALL LENGTH L2 IN | 0.420 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.28 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-12-B
$33.20Attribute: 5406-P-12-B (12 NPTF Hex Head Pi...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.170 |
| OVERALL LENGTH L2 IN | 0.420 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| WEIGHT LBS | 0.3125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-12-SS
$62.57Attribute: 5406-P-12-SS (12 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.170 |
| OVERALL LENGTH L2 IN | 0.420 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-16
$16.79Attribute: 5406-P-16 (16 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.907 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.360 |
| OVERALL LENGTH L2 IN | 0.420 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.496 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-16-B
$51.91Attribute: 5406-P-16-B (16 NPTF Hex Head Pi...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.907 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.360 |
| OVERALL LENGTH L2 IN | 0.420 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| WEIGHT LBS | 0.2812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-16-SS
$140.34Attribute: 5406-P-16-SS (16 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.907 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.360 |
| OVERALL LENGTH L2 IN | 0.420 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.5 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-20
$22.84Attribute: 5406-P-20 (20 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.142 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 1.750 |
| OVERALL LENGTH L IN | 1.470 |
| OVERALL LENGTH L2 IN | 0.500 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.88 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-20-SS
$489.15Attribute: 5406-P-20-SS (20 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-1/4-11-1/2 |
| THREAD B1 DRILL IN | 1.142 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 1.750 |
| OVERALL LENGTH L IN | 1.470 |
| OVERALL LENGTH L2 IN | 0.500 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.906 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-24
$37.70Attribute: 5406-P-24 (24 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL IN | 1.486 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 2.000 |
| OVERALL LENGTH L IN | 1.570 |
| OVERALL LENGTH L2 IN | 0.570 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.88 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-24-SS
$420.91Attribute: 5406-P-24-SS (24 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-1/2-11-1/2 |
| THREAD B1 DRILL IN | 1.486 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 2.000 |
| OVERALL LENGTH L IN | 1.570 |
| OVERALL LENGTH L2 IN | 0.570 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.258 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-32
$63.40Attribute: 5406-P-32 (32 NPTF Hex Head Pipe...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 2-11-1/2 |
| THREAD B1 DRILL IN | 1.720 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 2.500 |
| OVERALL LENGTH L IN | 1.750 |
| OVERALL LENGTH L2 IN | 0.720 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 2.36 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
5406-P-32-SS
$809.19Attribute: 5406-P-32-SS (32 NPTF Hex Head P...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 2-11-1/2 |
| THREAD B1 DRILL IN | 1.720 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | HEX HEAD PIPE PLUG |
| BODY HEX IN | 2.500 |
| OVERALL LENGTH L IN | 1.750 |
| OVERALL LENGTH L2 IN | 0.720 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.8 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | Other |
|---|---|
| Shape | Plug |
PDF Documents
Download CAD and Drawings
Open PDF
