Tube Fittings and Adapters

5316

Scraped 2026-02-15 08:27:47

Description

Description

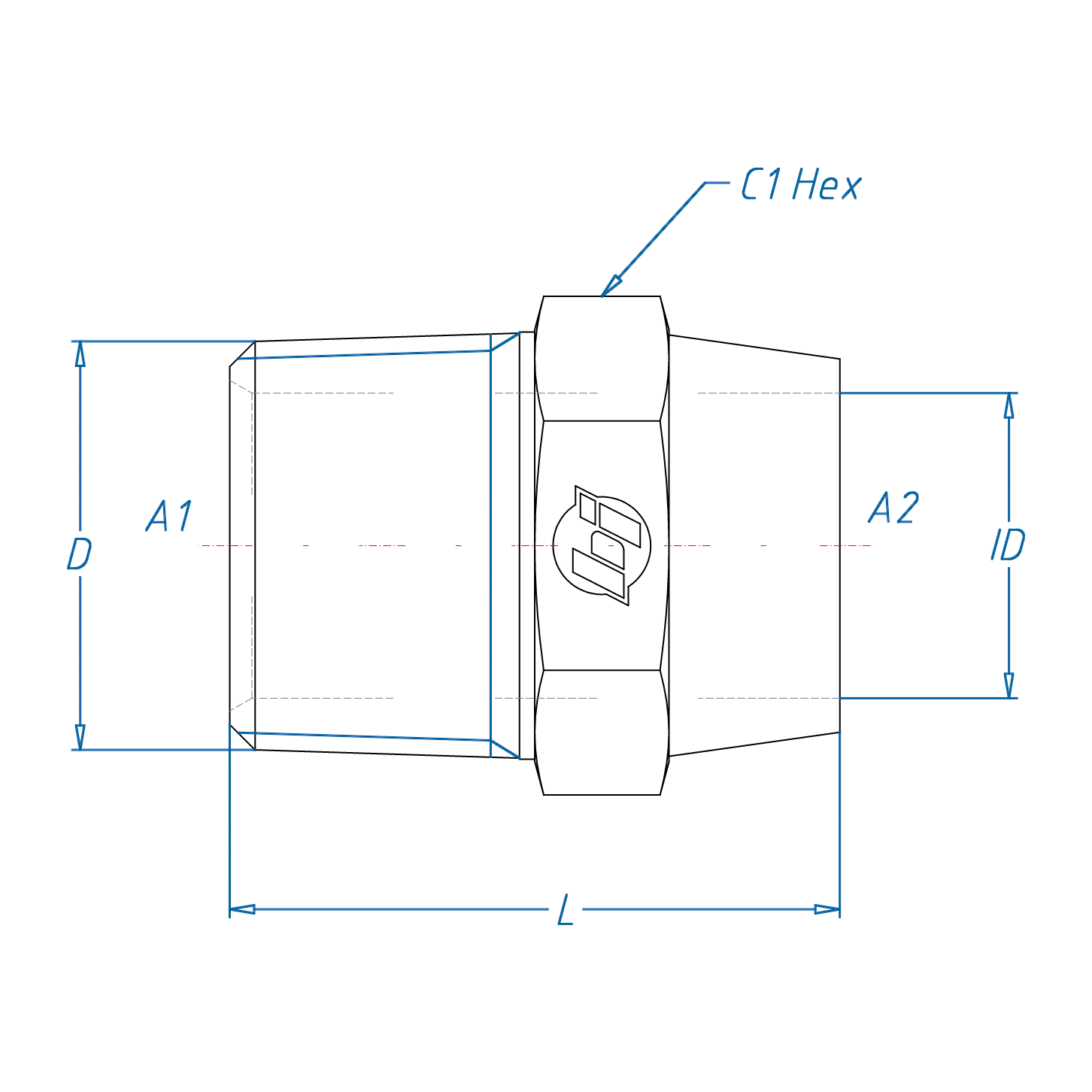

MP-BW Weld-On Fitting 316SS

Variations (8)

5316-04-SS

$31.70

Attribute: 5316-04-SS (04MP-Buttweld Straig...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1/4-18
THREAD B1 DRILL IN0.281
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEBUTTWELD
BODY HEX IN0.625
OVERALL LENGTH L IN1.197
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.0625
CALIFORNIA RESIDENTSPROP-65 WARNING

5316-06-SS

$33.52

Attribute: 5316-06-SS (06MP-Buttweld Straig...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE3/8-18
THREAD B1 DRILL IN0.406
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEBUTTWELD
BODY HEX IN0.750
OVERALL LENGTH L IN1.250
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.0875
CALIFORNIA RESIDENTSPROP-65 WARNING

5316-08-SS

$50.16

Attribute: 5316-08-SS (08MP-Buttweld Straig...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1/2-14
THREAD B1 DRILL IN0.531
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEBUTTWELD
BODY HEX IN0.875
OVERALL LENGTH L IN1.438
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.1187
CALIFORNIA RESIDENTSPROP-65 WARNING

5316-12-SS

$73.29

Attribute: 5316-12-SS (12MP-Buttweld Straig...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE3/4-14
THREAD B1 DRILL IN0.719
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEBUTTWELD
BODY HEX IN1.062
OVERALL LENGTH L IN1.500
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.1625
CALIFORNIA RESIDENTSPROP-65 WARNING

5316-16-SS

$101.84

Attribute: 5316-16-SS (16MP-Buttweld Straig...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1-11-1/2
THREAD B1 DRILL IN0.938
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEBUTTWELD
BODY HEX IN1.375
OVERALL LENGTH L IN1.700
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.2437
CALIFORNIA RESIDENTSPROP-65 WARNING

5316-20-SS

$286.09

Attribute: 5316-20-SS (20MP-Buttweld Straig...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1-1/4-11-1/2
THREAD B1 DRILL IN1.250
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEBUTTWELD
BODY HEX IN1.750
OVERALL LENGTH L IN1.930
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.5062
CALIFORNIA RESIDENTSPROP-65 WARNING

5316-24-SS

$338.96

Attribute: 5316-24-SS (24MP-Buttweld Straig...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE1-1/2-11-1/2
THREAD B1 DRILL IN1.500
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEBUTTWELD
BODY HEX IN2.000
OVERALL LENGTH L IN2.030
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.6
CALIFORNIA RESIDENTSPROP-65 WARNING

5316-32-SS

$509.47

Attribute: 5316-32-SS (32MP-Buttweld Straig...)

Stock Status: True

THREAD B1 TYPEMALE NPTF
THREAD B1 SIZE2-11-1/2
THREAD B1 DRILL IN1.938
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEBUTTWELD
BODY HEX IN2.500
OVERALL LENGTH L IN1.890
SHAPESTRAIGHT
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.775
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections NPT, Weld
Shape Straight

PDF Documents

Download CAD and Drawings Open PDF
