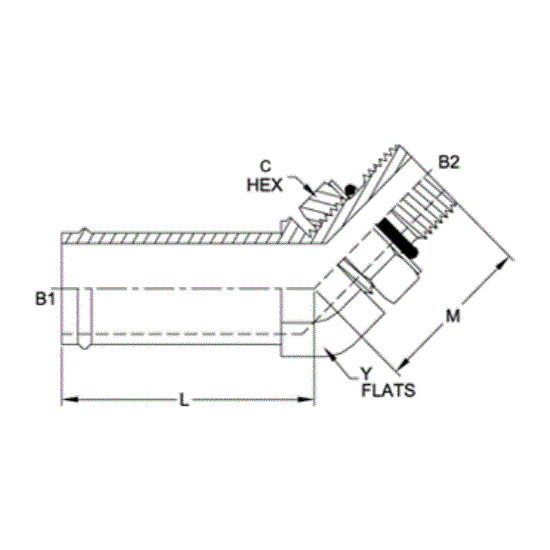

4603-NWO-FG

4603-04-04-NWO-FG

$29.19

Attribute: 4603-04-04-NWO-FG (04HB-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.681
OVERALL LENGTH L2 IN	1.047
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-06-04-NWO-FG

$23.04

Attribute: 4603-06-04-NWO-FG (06HB-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.681
OVERALL LENGTH L2 IN	1.100
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-06-06-NWO-FG

$12.70

Attribute: 4603-06-06-NWO-FG (06HB-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.772
OVERALL LENGTH L2 IN	1.142
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-08-06-NWO-FG

$22.05

Attribute: 4603-08-06-NWO-FG (08HB-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.760
OVERALL LENGTH L2 IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-08-08-NWO-FG

$23.58

Attribute: 4603-08-08-NWO-FG (08HB-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.820
OVERALL LENGTH L2 IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2001
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-10-08-NWO-FG

$41.94

Attribute: 4603-10-08-NWO-FG (10HB-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.820
OVERALL LENGTH L2 IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-10-10-NWO-FG

$34.80

Attribute: 4603-10-10-NWO-FG (10HB-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.874
OVERALL LENGTH L IN	1.846
OVERALL LENGTH L2 IN	1.516
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2875
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-10-12-NWO-FG

$62.32

Attribute: 4603-10-12-NWO-FG (10HB-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.894
OVERALL LENGTH L2 IN	1.724
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4562
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-12-08-NWO-FG

$36.67

Attribute: 4603-12-08-NWO-FG (12HB-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.846
OVERALL LENGTH L2 IN	1.358
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-12-10-NWO-FG

$40.17

Attribute: 4603-12-10-NWO-FG (12HB-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	1.520
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-12-12-NWO-FG

$34.16

Attribute: 4603-12-12-NWO-FG (12HB-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.894
OVERALL LENGTH L2 IN	1.724
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.475
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-12-16-NWO-FG

$54.89

Attribute: 4603-12-16-NWO-FG (12HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.957
OVERALL LENGTH L2 IN	1.854
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6562
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-16-12-NWO-FG

$60.98

Attribute: 4603-16-12-NWO-FG (16HB-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.700
OVERALL LENGTH L2 IN	1.730
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-16-16-NWO-FG

$58.87

Attribute: 4603-16-16-NWO-FG (16HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.311
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.957
OVERALL LENGTH L2 IN	1.854
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6937
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-16-20-NWO-FG

$162.39

Attribute: 4603-16-20-NWO-FG (16HB-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.050
OVERALL LENGTH L2 IN	1.894
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.1187
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-20-12-NWO-FG

$105.73

Attribute: 4603-20-12-NWO-FG (20HB-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.059
OVERALL LENGTH L2 IN	1.840
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.925
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-20-16-NWO-FG

$123.21

Attribute: 4603-20-16-NWO-FG (20HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.312
OVERALL LENGTH L IN	2.060
OVERALL LENGTH L2 IN	1.840
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-20-20-NWO-FG

$99.58

Attribute: 4603-20-20-NWO-FG (20HB-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.059
OVERALL LENGTH L2 IN	1.894
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-24-16-NWO-FG

$172.38

Attribute: 4603-24-16-NWO-FG (24HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.988
OVERALL LENGTH L2 IN	1.909
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-24-20-NWO-FG

$110.46

Attribute: 4603-24-20-NWO-FG (24HB-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.990
OVERALL LENGTH L2 IN	1.894
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.23
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-24-24-NWO-FG

$130.54

Attribute: 4603-24-24-NWO-FG (24HB-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.060
OVERALL LENGTH L2 IN	1.909
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

4603-32-32-NWO-FG

$367.90

Attribute: 4603-32-32-NWO-FG (32HB-32MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	1.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	2.237
OVERALL LENGTH L2 IN	1.860
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	ORB, Hose Barb
Shape	Elbow

ID	10144341
Category	Tube Fittings and Adapters

Description

Description

Variations (22)

4603-04-04-NWO-FG

4603-06-04-NWO-FG

4603-06-06-NWO-FG

4603-08-06-NWO-FG

4603-08-08-NWO-FG

4603-10-08-NWO-FG

4603-10-10-NWO-FG

4603-10-12-NWO-FG

4603-12-08-NWO-FG

4603-12-10-NWO-FG

4603-12-12-NWO-FG

4603-12-16-NWO-FG

4603-16-12-NWO-FG

4603-16-16-NWO-FG

4603-16-20-NWO-FG

4603-20-12-NWO-FG

4603-20-16-NWO-FG

4603-20-20-NWO-FG

4603-24-16-NWO-FG

4603-24-20-NWO-FG

4603-24-24-NWO-FG

4603-32-32-NWO-FG

General Attributes

PDF Documents
