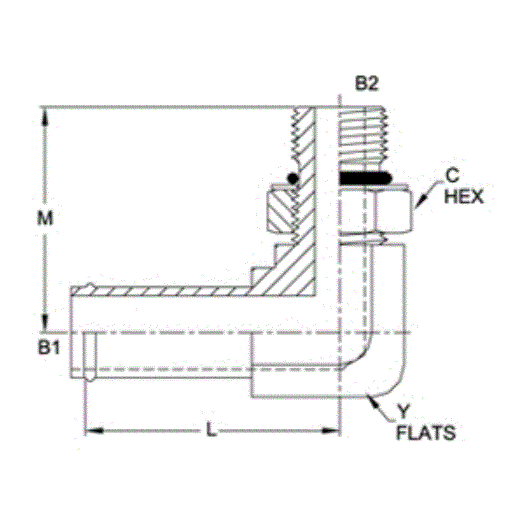

4601-NWO-FG

4601-04-04-NWO-FG

$12.50

Attribute: 4601-04-04-NWO-FG (04HB-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.752
OVERALL LENGTH L2 IN	1.030
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-04-06-NWO-FG

$27.52

Attribute: 4601-04-06-NWO-FG (04HB-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.810
OVERALL LENGTH L2 IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-04-08-NWO-FG

$31.75

Attribute: 4601-04-08-NWO-FG (04HB-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.980
OVERALL LENGTH L2 IN	1.449
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2187
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-05-04-NWO-FG

$18.66

Attribute: 4601-05-04-NWO-FG (05HB-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	0.252
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.810
OVERALL LENGTH L2 IN	1.030
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-05-06-NWO-FG

$17.13

Attribute: 4601-05-06-NWO-FG (05HB-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	0.252
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.810
OVERALL LENGTH L2 IN	1.240
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.111
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-06-04-NWO-FG

$21.01

Attribute: 4601-06-04-NWO-FG (06HB-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.812
OVERALL LENGTH L2 IN	1.190
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1011
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-06-06-NWO-FG

$14.57

Attribute: 4601-06-06-NWO-FG (06HB-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.812
OVERALL LENGTH L2 IN	1.240
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-06-08-NWO-FG

$27.52

Attribute: 4601-06-08-NWO-FG (06HB-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.980
OVERALL LENGTH L2 IN	1.449
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2255
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-08-06-NWO-FG

$15.95

Attribute: 4601-08-06-NWO-FG (08HB-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.980
OVERALL LENGTH L2 IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-08-08-NWO-FG

$23.58

Attribute: 4601-08-08-NWO-FG (08HB-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.980
OVERALL LENGTH L2 IN	1.449
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.225
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-10-08-NWO-FG

$24.07

Attribute: 4601-10-08-NWO-FG (10HB-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.980
OVERALL LENGTH L2 IN	1.441
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-10-10-NWO-FG

$34.90

Attribute: 4601-10-10-NWO-FG (10HB-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.055
OVERALL LENGTH L2 IN	1.701
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-10-12-NWO-FG

$33.57

Attribute: 4601-10-12-NWO-FG (10HB-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.063
OVERALL LENGTH L IN	2.070
OVERALL LENGTH L2 IN	1.941
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5812
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-12-08-NWO-FG

$46.22

Attribute: 4601-12-08-NWO-FG (12HB-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.055
OVERALL LENGTH L2 IN	1.539
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-12-10-NWO-FG

$38.34

Attribute: 4601-12-10-NWO-FG (12HB-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.063
OVERALL LENGTH L IN	2.055
OVERALL LENGTH L2 IN	1.701
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.42
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-12-12-NWO-FG

$32.49

Attribute: 4601-12-12-NWO-FG (12HB-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.197
OVERALL LENGTH L2 IN	1.929
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-12-16-NWO-FG

$54.05

Attribute: 4601-12-16-NWO-FG (12HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.360
OVERALL LENGTH L2 IN	2.030
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8625
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-14-16-NWO-FG

$66.21

Attribute: 4601-14-16-NWO-FG (14HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 7/8
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.300
OVERALL LENGTH L2 IN	2.039
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8812
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-16-10-NWO-FG

$63.01

Attribute: 4601-16-10-NWO-FG (16HB-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.358
OVERALL LENGTH L2 IN	1.920
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.775
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-16-12-NWO-FG

$69.85

Attribute: 4601-16-12-NWO-FG (16HB-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.358
OVERALL LENGTH L2 IN	2.051
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8187
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-16-14-NWO-FG

$76.10

Attribute: 4601-16-14-NWO-FG (16HB-14MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.394
OVERALL LENGTH L2 IN	2.039
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8437
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-16-16-NWO-FG

$67.34

Attribute: 4601-16-16-NWO-FG (16HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.394
OVERALL LENGTH L2 IN	2.039
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.85
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-16-20-NWO-FG

$73.15

Attribute: 4601-16-20-NWO-FG (16HB-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.454
OVERALL LENGTH L2 IN	2.230
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-20-12-NWO-FG

$67.93

Attribute: 4601-20-12-NWO-FG (20HB-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.614
OVERALL LENGTH L2 IN	2.240
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.3062
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-20-16-NWO-FG

$139.90

Attribute: 4601-20-16-NWO-FG (20HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.454
OVERALL LENGTH L2 IN	2.252
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.4386
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-20-20-NWO-FG

$85.21

Attribute: 4601-20-20-NWO-FG (20HB-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.626
OVERALL LENGTH L IN	2.375
OVERALL LENGTH L2 IN	2.255
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.43
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-20-24-NWO-FG

$171.74

Attribute: 4601-20-24-NWO-FG (20HB-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.590
OVERALL LENGTH L2 IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.975
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-24-16-NWO-FG

$177.15

Attribute: 4601-24-16-NWO-FG (24HB-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.697
OVERALL LENGTH L2 IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.6
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-24-20-NWO-FG

$181.39

Attribute: 4601-24-20-NWO-FG (24HB-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.700
OVERALL LENGTH L2 IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.8062
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-24-24-NWO-FG

$185.33

Attribute: 4601-24-24-NWO-FG (24HB-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.697
OVERALL LENGTH L2 IN	2.382
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.7937
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-32-20-NWO-FG

$320.89

Attribute: 4601-32-20-NWO-FG (32HB-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	1.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.060
OVERALL LENGTH L2 IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	3.915
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-32-24-NWO-FG

$381.19

Attribute: 4601-32-24-NWO-FG (32HB-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	1.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.060
OVERALL LENGTH L2 IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	3.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

4601-32-32-NWO-FG

$521.62

Attribute: 4601-32-32-NWO-FG (32HB-32MAORB ...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	1.843
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.059
OVERALL LENGTH L2 IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	3.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	ORB, Hose Barb
Shape	Elbow

ID	10144302
Category	Tube Fittings and Adapters

Description

Description

Variations (33)

4601-04-04-NWO-FG

4601-04-06-NWO-FG

4601-04-08-NWO-FG

4601-05-04-NWO-FG

4601-05-06-NWO-FG

4601-06-04-NWO-FG

4601-06-06-NWO-FG

4601-06-08-NWO-FG

4601-08-06-NWO-FG

4601-08-08-NWO-FG

4601-10-08-NWO-FG

4601-10-10-NWO-FG

4601-10-12-NWO-FG

4601-12-08-NWO-FG

4601-12-10-NWO-FG

4601-12-12-NWO-FG

4601-12-16-NWO-FG

4601-14-16-NWO-FG

4601-16-10-NWO-FG

4601-16-12-NWO-FG

4601-16-14-NWO-FG

4601-16-16-NWO-FG

4601-16-20-NWO-FG

4601-20-12-NWO-FG

4601-20-16-NWO-FG

4601-20-20-NWO-FG

4601-20-24-NWO-FG

4601-24-16-NWO-FG

4601-24-20-NWO-FG

4601-24-24-NWO-FG

4601-32-20-NWO-FG

4601-32-24-NWO-FG

4601-32-32-NWO-FG

General Attributes

PDF Documents
