Tube Fittings and Adapters

4504-FG

Scraped 2026-02-15 08:27:47

Description

Description

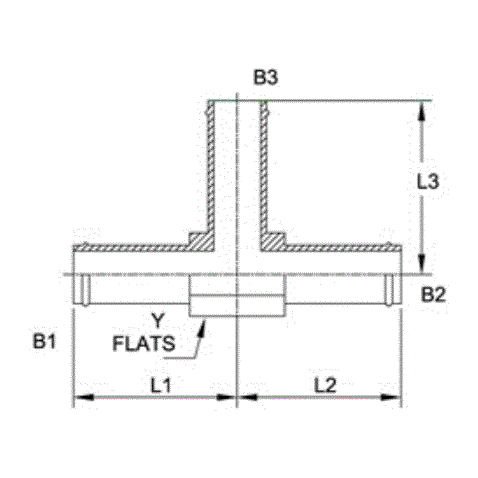

HB-HB-HB Tee

Variations (3)

4504-06-06-06-FG

$37.07

Attribute: 4504-06-06-06-FG (06HB-06HB-06HB...)

Stock Status: True

THREAD B1 TYPEHOSE BARB
THREAD B1 SIZE3/8
THREAD B1 DRILL IN0.297
THREAD B2 TYPEHOSE BARB
THREAD B2 SIZE3/8
THREAD B2 DRILL IN0.297
THREAD 3 TYPEHOSE BARB
THREAD 3 SIZE3/8
THREAD 3 DRILL IN0.297
BODY HEX IN0.562
OVERALL LENGTH L IN1.812
CENTERLINE LENGTH M IN1.812
CENTERLINE LENGTH M2 IN1.812
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.0937
CALIFORNIA RESIDENTSPROP-65 WARNING

4504-06-06-06-SS

$266.99

Attribute: 4504-06-06-06-SS (06HB-06HB-06HB...)

Stock Status: True

THREAD B1 TYPEHOSE BARB
THREAD B1 SIZE3/8
THREAD B1 DRILL IN0.297
THREAD B2 TYPEHOSE BARB
THREAD B2 SIZE3/8
THREAD B2 DRILL IN0.297
THREAD 3 TYPEHOSE BARB
THREAD 3 SIZE3/8
THREAD 3 DRILL IN0.297
BODY HEX IN0.562
OVERALL LENGTH L IN1.812
CENTERLINE LENGTH M IN1.812
CENTERLINE LENGTH M2 IN1.812
SHAPETEE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTSPROP-65 WARNING

4504-08-08-08-SS

$356.29

Attribute: 4504-08-08-08-SS (08HB-08HB-08HB...)

Stock Status: True

THREAD B1 TYPEHOSE BARB
THREAD B1 SIZE1/2
THREAD B1 DRILL IN0.406
THREAD B2 TYPEHOSE BARB
THREAD B2 SIZE1/2
THREAD B2 DRILL IN0.406
THREAD 3 TYPEHOSE BARB
THREAD 3 SIZE1/2
THREAD 3 DRILL IN0.406
BODY HEX IN0.812
OVERALL LENGTH L IN1.980
CENTERLINE LENGTH M IN1.980
CENTERLINE LENGTH M2 IN1.980
SHAPETEE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.23
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections Hose Barb
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
