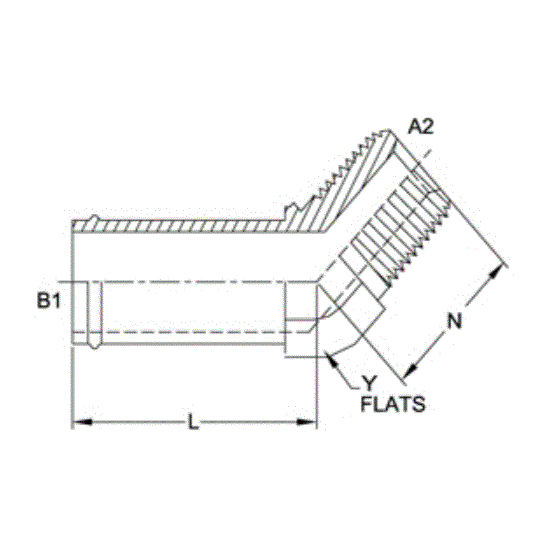

4503-FG

4503-04-02-FG

$14.32

Attribute: 4503-04-02-FG (04HB-02MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.680
OVERALL LENGTH L2 IN	0.640
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.036
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-04-04-FG

$13.19

Attribute: 4503-04-04-FG (04HB-04MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.810
OVERALL LENGTH L2 IN	0.860
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-04-04-SS

$154.31

Attribute: 4503-04-04-SS (04HB-04MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.810
OVERALL LENGTH L2 IN	0.860
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-06-04-FG

$15.80

Attribute: 4503-06-04-FG (06HB-04MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.670
OVERALL LENGTH L2 IN	0.860
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-08-06-FG

$32.59

Attribute: 4503-08-06-FG (08HB-06MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
OVERALL LENGTH L IN	1.687
OVERALL LENGTH L2 IN	0.953
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-08-08-FG

$33.67

Attribute: 4503-08-08-FG (08HB-08MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.830
OVERALL LENGTH L2 IN	1.170
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1812
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-10-06-FG

$35.73

Attribute: 4503-10-06-FG (10HB-06MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.830
OVERALL LENGTH L2 IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-10-08-FG

$23.14

Attribute: 4503-10-08-FG (10HB-08MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.830
OVERALL LENGTH L2 IN	1.170
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1937
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-10-12-FG

$28.79

Attribute: 4503-10-12-FG (10HB-12MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.200
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-12-08-FG

$49.08

Attribute: 4503-12-08-FG (12HB-08MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.846
OVERALL LENGTH L2 IN	1.170
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1937
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-12-12-FG

$25.65

Attribute: 4503-12-12-FG (12HB-12MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.894
OVERALL LENGTH L2 IN	1.200
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.275
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-12-16-FG

$52.42

Attribute: 4503-12-16-FG (12HB-16MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.930
OVERALL LENGTH L2 IN	1.480
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.45
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-16-12-FG

$42.53

Attribute: 4503-16-12-FG (16HB-12MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.930
OVERALL LENGTH L2 IN	1.290
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4187
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-16-16-FG

$40.91

Attribute: 4503-16-16-FG (16HB-16MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.930
OVERALL LENGTH L2 IN	1.480
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4687
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-16-16-SS

$636.27

Attribute: 4503-16-16-SS (16HB-16MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.930
OVERALL LENGTH L2 IN	1.480
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.8437
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-16-20-FG

$77.48

Attribute: 4503-16-20-FG (16HB-20MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.750
OVERALL LENGTH L IN	2.070
OVERALL LENGTH L2 IN	1.620
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-20-16-FG

$83.58

Attribute: 4503-20-16-FG (20HB-16MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.930
OVERALL LENGTH L2 IN	1.480
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4437
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-20-20-FG

$74.33

Attribute: 4503-20-20-FG (20HB-20MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.060
OVERALL LENGTH L2 IN	1.670
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-24-20-FG

$202.89

Attribute: 4503-24-20-FG (24HB-20MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.750
OVERALL LENGTH L IN	1.930
OVERALL LENGTH L2 IN	1.620
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-24-24-FG

$130.64

Attribute: 4503-24-24-FG (24HB-24MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.5
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.146
OVERALL LENGTH L2 IN	1.770
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.925
CALIFORNIA RESIDENTS	PROP-65 WARNING

4503-32-32-FG

$420.71

Attribute: 4503-32-32-FG (32HB-32MP 45 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	1.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	2.240
OVERALL LENGTH L2 IN	2.110
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.724
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, Hose Barb
Shape	Elbow

ID	10144266
Category	Tube Fittings and Adapters

Description

Description

Variations (21)

4503-04-02-FG

4503-04-04-FG

4503-04-04-SS

4503-06-04-FG

4503-08-06-FG

4503-08-08-FG

4503-10-06-FG

4503-10-08-FG

4503-10-12-FG

4503-12-08-FG

4503-12-12-FG

4503-12-16-FG

4503-16-12-FG

4503-16-16-FG

4503-16-16-SS

4503-16-20-FG

4503-20-16-FG

4503-20-20-FG

4503-24-20-FG

4503-24-24-FG

4503-32-32-FG

General Attributes

PDF Documents
