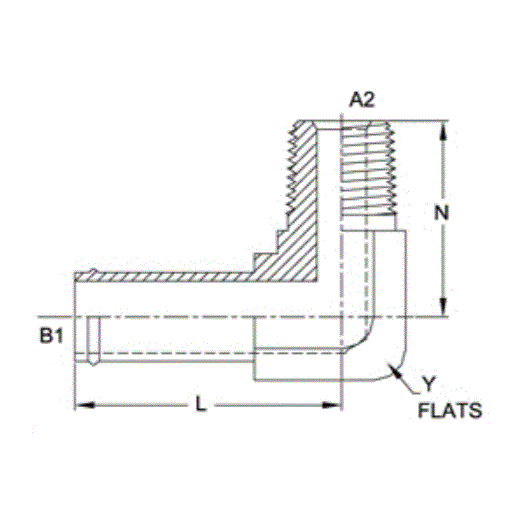

4501-FG

4501-04-02-FG

$10.73

Attribute: 4501-04-02-FG (04HB-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.810
OVERALL LENGTH L2 IN	0.750
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-04-02-SS

$81.27

Attribute: 4501-04-02-SS (04HB-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.810
OVERALL LENGTH L2 IN	0.750
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-04-04-FG

$17.67

Attribute: 4501-04-04-FG (04HB-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.850
OVERALL LENGTH L2 IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-05-02-FG

$17.43

Attribute: 4501-05-02-FG (05HB-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	0.252
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.437
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-06-02-FG

$28.25

Attribute: 4501-06-02-FG (06HB-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.810
OVERALL LENGTH L2 IN	0.900
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-06-04-FG

$14.72

Attribute: 4501-06-04-FG (06HB-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.870
OVERALL LENGTH L2 IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-06-06-FG

$15.70

Attribute: 4501-06-06-FG (06HB-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0916
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-06-06-SS

$117.80

Attribute: 4501-06-06-SS (06HB-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5312
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-06-08-FG

$22.74

Attribute: 4501-06-08-FG (06HB-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-08-04-FG

$16.00

Attribute: 4501-08-04-FG (08HB-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-08-06-FG

$14.96

Attribute: 4501-08-06-FG (08HB-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-08-06-SS

$135.51

Attribute: 4501-08-06-SS (08HB-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-08-08-FG

$22.05

Attribute: 4501-08-08-FG (08HB-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.055
OVERALL LENGTH L2 IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-08-12-FG

$43.71

Attribute: 4501-08-12-FG (08HB-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.232
OVERALL LENGTH L2 IN	1.594
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-10-06-FG

$22.54

Attribute: 4501-10-06-FG (10HB-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.968
OVERALL LENGTH L2 IN	1.278
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1812
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-10-06-SS

$205.37

Attribute: 4501-10-06-SS (10HB-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.968
OVERALL LENGTH L2 IN	1.278
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-10-08-FG

$22.64

Attribute: 4501-10-08-FG (10HB-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.055
OVERALL LENGTH L2 IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2562
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-10-12-FG

$29.58

Attribute: 4501-10-12-FG (10HB-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.232
OVERALL LENGTH L2 IN	1.595
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4187
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-12-06-FG

$35.05

Attribute: 4501-12-06-FG (12HB-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.060
OVERALL LENGTH L2 IN	1.280
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-12-08-FG

$35.69

Attribute: 4501-12-08-FG (12HB-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.060
OVERALL LENGTH L2 IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-12-12-FG

$24.22

Attribute: 4501-12-12-FG (12HB-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.232
OVERALL LENGTH L2 IN	1.595
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-12-12-SS

$217.87

Attribute: 4501-12-12-SS (12HB-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.232
OVERALL LENGTH L2 IN	1.595
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-12-16-FG

$52.72

Attribute: 4501-12-16-FG (12HB-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.311
OVERALL LENGTH L IN	2.382
OVERALL LENGTH L2 IN	1.969
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7187
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-16-08-FG

$355.93

Attribute: 4501-16-08-FG (16HB-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.320
OVERALL LENGTH L2 IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-16-12-FG

$45.78

Attribute: 4501-16-12-FG (16HB-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.360
OVERALL LENGTH L2 IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6562
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-16-12-SS

$570.76

Attribute: 4501-16-12-SS (16HB-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.360
OVERALL LENGTH L2 IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-16-16-FG

$48.63

Attribute: 4501-16-16-FG (16HB-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.319
OVERALL LENGTH L2 IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-16-16-SS

$383.65

Attribute: 4501-16-16-SS (16HB-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.319
OVERALL LENGTH L2 IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-16-20-FG

$92.74

Attribute: 4501-16-20-FG (16HB-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.567
OVERALL LENGTH L2 IN	2.374
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.1937
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-20-16-FG

$97.76

Attribute: 4501-20-16-FG (20HB-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.968
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-20-20-FG

$88.95

Attribute: 4501-20-20-FG (20HB-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.570
OVERALL LENGTH L2 IN	2.375
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-24-16-FG

$189.76

Attribute: 4501-24-16-FG (24HB-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.650
OVERALL LENGTH L2 IN	2.284
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-24-20-FG

$193.30

Attribute: 4501-24-20-FG (24HB-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.650
OVERALL LENGTH L2 IN	2.610
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.6562
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-24-24-FG

$146.05

Attribute: 4501-24-24-FG (24HB-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.5
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.650
OVERALL LENGTH L2 IN	2.640
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

4501-32-32-FG

$361.50

Attribute: 4501-32-32-FG (32HB-32MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	1.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.000
OVERALL LENGTH L2 IN	3.000
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.1825
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, Hose Barb
Shape	Elbow

ID	10144226
Category	Tube Fittings and Adapters

Description

Description

Variations (35)

4501-04-02-FG

4501-04-02-SS

4501-04-04-FG

4501-05-02-FG

4501-06-02-FG

4501-06-04-FG

4501-06-06-FG

4501-06-06-SS

4501-06-08-FG

4501-08-04-FG

4501-08-06-FG

4501-08-06-SS

4501-08-08-FG

4501-08-12-FG

4501-10-06-FG

4501-10-06-SS

4501-10-08-FG

4501-10-12-FG

4501-12-06-FG

4501-12-08-FG

4501-12-12-FG

4501-12-12-SS

4501-12-16-FG

4501-16-08-FG

4501-16-12-FG

4501-16-12-SS

4501-16-16-FG

4501-16-16-SS

4501-16-20-FG

4501-20-16-FG

4501-20-20-FG

4501-24-16-FG

4501-24-20-FG

4501-24-24-FG

4501-32-32-FG

General Attributes

PDF Documents
