4404

4404-04-02

$6.94

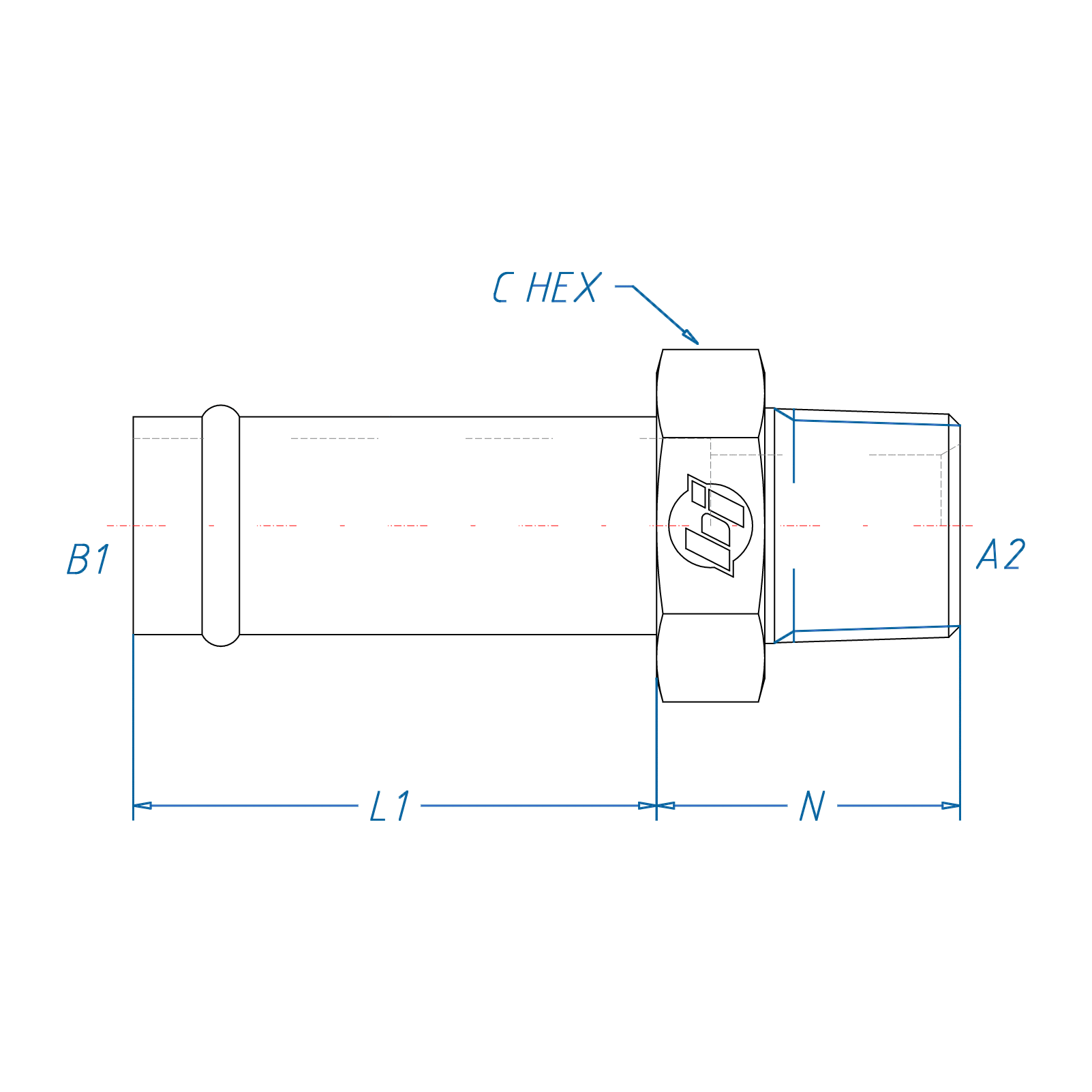

Attribute: 4404-04-02 (04HB-02MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.620
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.03
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-04-02-B

$5.50

Attribute: 4404-04-02-B (04HB-02MP Straight...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.620
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-04-02-SS

$79.50

Attribute: 4404-04-02-SS (04HB-02MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.620
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-04-04

$7.44

Attribute: 4404-04-04 (04HB-04MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.810
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0553
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-04-04-B

$21.40

Attribute: 4404-04-04-B (04HB-04MP Straight...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.810
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-04-04-SS

$70.05

Attribute: 4404-04-04-SS (04HB-04MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.188
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.810
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-05-02

$13.19

Attribute: 4404-05-02 (05HB-02MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	0.252
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.580
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-06-02

$12.89

Attribute: 4404-06-02 (06HB-02MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.630
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-06-02-SS

$57.11

Attribute: 4404-06-02-SS (06HB-02MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.630
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-06-04

$12.16

Attribute: 4404-06-04 (06HB-04MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-06-04-B

$5.55

Attribute: 4404-06-04-B (06HB-04MP Straight...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-06-04-SS

$72.26

Attribute: 4404-06-04-SS (06HB-04MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0375
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-06-06

$14.52

Attribute: 4404-06-06 (06HB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-06-06-SS

$78.81

Attribute: 4404-06-06-SS (06HB-06MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.295
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-08-04

$20.47

Attribute: 4404-08-04 (08HB-04MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.06
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-08-04-SS

$137.34

Attribute: 4404-08-04-SS (08HB-04MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-08-06

$23.43

Attribute: 4404-08-06 (08HB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-08-06-SS

$76.34

Attribute: 4404-08-06-SS (08HB-06MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-08-08

$20.28

Attribute: 4404-08-08 (08HB-08MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.100
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.16
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-08-08-SS

$110.95

Attribute: 4404-08-08-SS (08HB-08MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.100
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1937
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-08-12

$33.72

Attribute: 4404-08-12 (08HB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.26
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-08-12-SS

$272.65

Attribute: 4404-08-12-SS (08HB-12MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.406
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-06

$15.40

Attribute: 4404-10-06 (10HB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-06-SS

$215.12

Attribute: 4404-10-06-SS (10HB-06MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-08

$16.19

Attribute: 4404-10-08 (10HB-08MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.063
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-08-B

$20.85

Attribute: 4404-10-08-B (10HB-08MP Straight...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.063
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-08-SS

$363.43

Attribute: 4404-10-08-SS (10HB-08MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.063
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-12

$32.15

Attribute: 4404-10-12 (10HB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.24
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-12-SS

$241.79

Attribute: 4404-10-12-SS (10HB-12MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-16

$35.05

Attribute: 4404-10-16 (10HB-16MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.464
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-10-16-SS

$323.63

Attribute: 4404-10-16-SS (10HB-16MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.500
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-12-06

$15.36

Attribute: 4404-12-06 (12HB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.870
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-12-08

$22.20

Attribute: 4404-12-08 (12HB-08MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.100
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.14
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-12-08-SS

$291.07

Attribute: 4404-12-08-SS (12HB-08MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.100
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-12-12

$22.40

Attribute: 4404-12-12 (12HB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2229
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-12-12-SS

$209.89

Attribute: 4404-12-12-SS (12HB-12MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-12-16

$36.67

Attribute: 4404-12-16 (12HB-16MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-12-16-SS

$304.59

Attribute: 4404-12-16-SS (12HB-16MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.626
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-16-12

$34.90

Attribute: 4404-16-12 (16HB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-16-12-SS

$304.59

Attribute: 4404-16-12-SS (16HB-12MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.220
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-16-16

$29.04

Attribute: 4404-16-16 (16HB-16MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.37
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-16-16-SS

$269.16

Attribute: 4404-16-16-SS (16HB-16MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3687
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-16-24

$181.54

Attribute: 4404-16-24 (16HB-24MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	0.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.5
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.7687
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-20-12

$54.10

Attribute: 4404-20-12 (20HB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-20-16

$54.89

Attribute: 4404-20-16 (20HB-16MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.35
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-20-20

$55.53

Attribute: 4404-20-20 (20HB-20MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.450
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.58
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-20-20-SS

$661.08

Attribute: 4404-20-20-SS (20HB-20MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.450
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5625
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-20-24

$68.38

Attribute: 4404-20-24 (20HB-24MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.094
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.5
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-24-20

$61.48

Attribute: 4404-24-20 (24HB-20MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.750
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.450
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5467
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-24-24

$73.49

Attribute: 4404-24-24 (24HB-24MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.5
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.8
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-24-24-SS

$710.80

Attribute: 4404-24-24-SS (24HB-24MP Straigh...)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.343
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.5
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7312
CALIFORNIA RESIDENTS	PROP-65 WARNING

4404-32-32

$189.76

Attribute: 4404-32-32 (32HB-32MP Straight)

Stock Status: True

THREAD B1 TYPE	HOSE BARB
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	1.843
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.36
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (52)

4404-04-02

4404-04-02-B

4404-04-02-SS

4404-04-04

4404-04-04-B

4404-04-04-SS

4404-05-02

4404-06-02

4404-06-02-SS

4404-06-04

4404-06-04-B

4404-06-04-SS

4404-06-06

4404-06-06-SS

4404-08-04

4404-08-04-SS

4404-08-06

4404-08-06-SS

4404-08-08

4404-08-08-SS

4404-08-12

4404-08-12-SS

4404-10-06

4404-10-06-SS

4404-10-08

4404-10-08-B

4404-10-08-SS

4404-10-12

4404-10-12-SS

4404-10-16

4404-10-16-SS

4404-12-06

4404-12-08

4404-12-08-SS

4404-12-12

4404-12-12-SS

4404-12-16

4404-12-16-SS

4404-16-12

4404-16-12-SS

4404-16-16

4404-16-16-SS

4404-16-24

4404-20-12

4404-20-16

4404-20-20

4404-20-20-SS

4404-20-24

4404-24-20

4404-24-24

4404-24-24-SS

4404-32-32

General Attributes

PDF Documents
