Tube Fittings and Adapters

2764-O

Scraped 2026-02-15 08:27:47

Description

Description

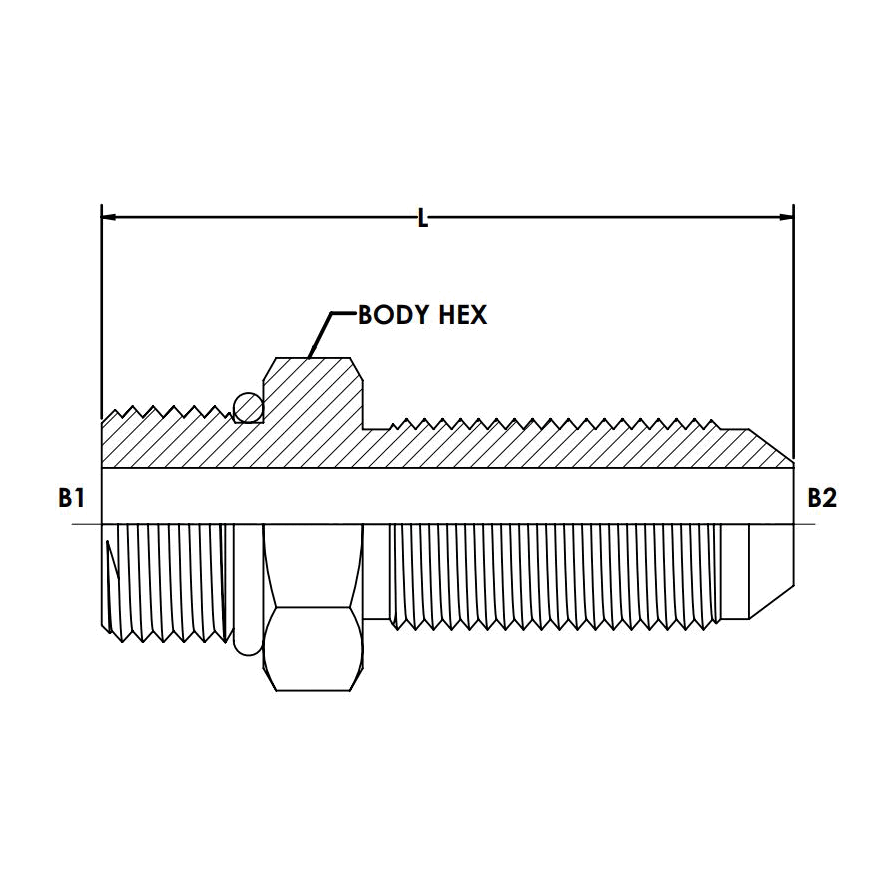

MORB-MJ Bulkhead Straight

Variations (10)

2764-04-04-O

$14.32

Attribute: 2764-04-04-O (04MORB-04MJ Bulkhe...)

Stock Status: True

B1 TUBE O.D.1/4
B2 TUBE O.D.1/4
B1 SAE ORB7/16-20
B2 SAE 377/16-20
B1 DRILL0.172
B2 DRILL0.172
L LENGTH1.950
C HEX0.688
MATERIALSTEEL

2764-04-04-O-BB

$67.11

Attribute: 2764-04-04-O-BB (04MORB-04MJ Bul...)

Stock Status: True

B1 TUBE O.D.1/4
B2 TUBE O.D.1/4
B1 SAE ORB7/16-20
B2 SAE 377/16-20
B1 DRILL0.172
B2 DRILL0.172
L LENGTH1.950
C HEX0.688
MATERIALCOATED STEEL

2764-06-04-O

$55.34

Attribute: 2764-06-04-O (06MORB-04MJ Bulkhe...)

Stock Status: True

B1 TUBE O.D.3/8
B2 TUBE O.D.1/4
B1 SAE ORB9/16-18
B2 SAE 377/16-20
B1 DRILL0.297
B2 DRILL0.172
L LENGTH1.969
C HEX0.687
MATERIALSTEEL

2764-06-06-O

$15.26

Attribute: 2764-06-06-O (06MORB-06MJ Bulkhe...)

Stock Status: True

B1 TUBE O.D.3/8
B2 TUBE O.D.3/8
B1 SAE ORB9/16-18
B2 SAE 379/16-18
B1 DRILL0.297
B2 DRILL0.297
L LENGTH2.020
C HEX0.813
MATERIALSTEEL

2764-08-08-O

$23.92

Attribute: 2764-08-08-O (08MORB-08MJ Bulkhe...)

Stock Status: True

B1 TUBE O.D.1/2
B2 TUBE O.D.1/2
B1 SAE ORB3/4-16
B2 SAE 373/4-16
B1 DRILL0.391
B2 DRILL0.391
L LENGTH2.190
C HEX1.000
MATERIALSTEEL

2764-08-08-O-SS

$236.92

Attribute: 2764-08-08-O-SS (08MORB-08MJ Bul...)

Stock Status: True

B1 TUBE O.D.1/2
B2 TUBE O.D.1/2
B1 SAE ORB3/4-16
B2 SAE 373/4-16
B1 DRILL0.391
B2 DRILL0.391
L LENGTH2.190
C HEX1.000
MATERIALSTAINLESS STEEL

2764-10-10-O

$43.77

Attribute: 2764-10-10-O (10MORB-10MJ Bulkhe...)

Stock Status: True

B1 TUBE O.D.5/8
B2 TUBE O.D.5/8
B1 SAE ORB7/8-14
B2 SAE 377/8-14
B1 DRILL0.484
B2 DRILL0.484
L LENGTH2.470
C HEX1.125
MATERIALSTEEL

2764-12-12-O

$59.71

Attribute: 2764-12-12-O (12MORB-12MJ Bulkhe...)

Stock Status: True

B1 TUBE O.D.3/4
B2 TUBE O.D.3/4
B1 SAE ORB1-1/16-12
B2 SAE 371-1/16-12
B1 DRILL0.609
B2 DRILL0.609
L LENGTH2.815
C HEX1.375
MATERIALSTEEL

2764-12-12-O-SS

$408.17

Attribute: 2764-12-12-O-SS (12MORB-12MJ Bul...)

Stock Status: True

B1 TUBE O.D.3/4
B2 TUBE O.D.3/4
B1 SAE ORB1-1/16-12
B2 SAE 371-1/16-12
B1 DRILL0.609
B2 DRILL0.609
L LENGTH2.815
C HEX1.375
MATERIALSTAINLESS STEEL

2764-16-16-O

$95.44

Attribute: 2764-16-16-O (16MORB-16MJ Bulkhe...)

Stock Status: True

B1 TUBE O.D.1
B2 TUBE O.D.1
B1 SAE ORB1-5/16-12
B2 SAE 371-5/16-12
B1 DRILL0.844
B2 DRILL0.844
L LENGTH2.900
C HEX1.625
MATERIALSTEEL

General Attributes

Connections JIC, ORB
Shape Straight

PDF Documents

Download CAD and Drawings Open PDF
