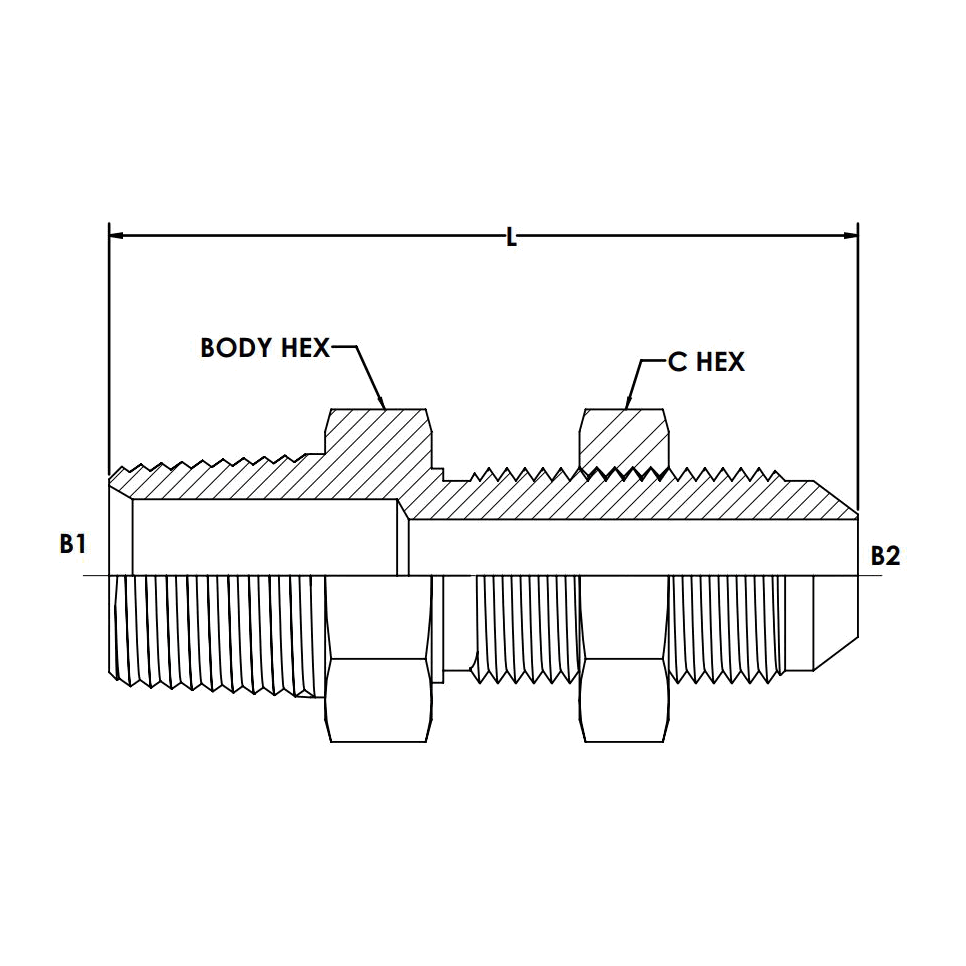

2706-LN

2706-LN-02-04

$19.44

Attribute: 2706-LN-02-04 (02MP-04MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	0.688
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.840
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0831
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-02-04-BB

$86.28

Attribute: 2706-LN-02-04-BB (02MP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-BB
BODY HEX IN	0.688
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.840
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.0831
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-02-04-SS

$237.75

Attribute: 2706-LN-02-04-SS (02MP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-SS
BODY HEX IN	0.688
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.840
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.086
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-04-02

$21.31

Attribute: 2706-LN-04-02 (04MP-02MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-02
BODY HEX IN	0.625
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.980
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0792
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-04-04

$13.88

Attribute: 2706-LN-04-04 (04MP-04MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	0.687
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.080
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1001
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-04-04-BB

$91.60

Attribute: 2706-LN-04-04-BB (04MP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-BB
BODY HEX IN	0.687
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.080
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1001
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-04-04-SS

$74.57

Attribute: 2706-LN-04-04-SS (04MP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-SS
BODY HEX IN	0.687
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.080
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.103
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-04-06

$18.70

Attribute: 2706-LN-04-06 (04MP-06MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.180
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1463
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-04-06-BB

$58.81

Attribute: 2706-LN-04-06-BB (04MP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-BB
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.180
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1463
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-04-06-SS

$183.70

Attribute: 2706-LN-04-06-SS (04MP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-SS
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.180
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.13
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-06-04

$19.54

Attribute: 2706-LN-06-04 (06MP-04MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	0.750
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.190
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0171
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-06-04-BB

$51.16

Attribute: 2706-LN-06-04-BB (06MP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-BB
BODY HEX IN	0.750
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.190
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.0171
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-06-06

$17.87

Attribute: 2706-LN-06-06 (06MP-06MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.180
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-06-06-BB

$69.52

Attribute: 2706-LN-06-06-BB (06MP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-BB
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.180
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-06-06-SS

$168.89

Attribute: 2706-LN-06-06-SS (06MP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-SS
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.180
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.13
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-06-08

$20.13

Attribute: 2706-LN-06-08 (06MP-08MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.350
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-06-08-BB

$80.47

Attribute: 2706-LN-06-08-BB (06MP-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-BB
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.350
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-06-08-SS

$171.74

Attribute: 2706-LN-06-08-SS (06MP-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-SS
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.350
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.236
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-04

$25.12

Attribute: 2706-LN-08-04 (08MP-04MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	1.000
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-06

$20.43

Attribute: 2706-LN-08-06 (08MP-06MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	0.875
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.207
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-06-BB

$98.61

Attribute: 2706-LN-08-06-BB (08MP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-BB
BODY HEX IN	0.875
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.410
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.207
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-08

$16.99

Attribute: 2706-LN-08-08 (08MP-08MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.600
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-08-BB

$84.11

Attribute: 2706-LN-08-08-BB (08MP-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-BB
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.600
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-08-SS

$155.20

Attribute: 2706-LN-08-08-SS (08MP-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-SS
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.600
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.29
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-10

$29.63

Attribute: 2706-LN-08-10 (08MP-10MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10
BODY HEX IN	1.125
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.800
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3673
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-10-BB

$87.22

Attribute: 2706-LN-08-10-BB (08MP-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10-BB
BODY HEX IN	1.125
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.800
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.3673
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-10-SS

$425.35

Attribute: 2706-LN-08-10-SS (08MP-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10-SS
BODY HEX IN	1.125
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.800
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.06
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-12

$35.69

Attribute: 2706-LN-08-12 (08MP-12MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.920
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.093
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-12-BB

$499.68

Attribute: 2706-LN-08-12-BB (08MP-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-BB
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.920
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.093
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-08-12-SS

$325.30

Attribute: 2706-LN-08-12-SS (08MP-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-SS
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.920
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-12-12

$37.51

Attribute: 2706-LN-12-12 (12MP-12MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.920
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.565
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-12-12-BB

$129.07

Attribute: 2706-LN-12-12-BB (12MP-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-BB
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.920
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.565
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-12-12-SS

$322.96

Attribute: 2706-LN-12-12-SS (12MP-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-SS
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.920
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.573
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-12-16-SS

$412.15

Attribute: 2706-LN-12-16-SS (12MP-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-SS
BODY HEX IN	1.625
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.980
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-16-16

$49.12

Attribute: 2706-LN-16-16 (16MP-16MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16
BODY HEX IN	1.625
C HEX 1 IN	1.625
OVERALL LENGTH L IN	3.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.7799
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-16-16-BB

$180.72

Attribute: 2706-LN-16-16-BB (16MP-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-BB
BODY HEX IN	1.625
C HEX 1 IN	1.625
OVERALL LENGTH L IN	3.170
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.7799
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-16-16-SS

$473.59

Attribute: 2706-LN-16-16-SS (16MP-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-SS
BODY HEX IN	1.625
C HEX 1 IN	1.625
OVERALL LENGTH L IN	3.170
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.774
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-20-20

$88.90

Attribute: 2706-LN-20-20 (20MP-20MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.320
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.1103
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-20-20-BB

$308.34

Attribute: 2706-LN-20-20-BB (20MP-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20-BB
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.320
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.1103
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-20-20-SS

$671.17

Attribute: 2706-LN-20-20-SS (20MP-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20-SS
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.320
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-24-24

$148.80

Attribute: 2706-LN-24-24 (24MP-24MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.500
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.5002
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-24-24-BB

$498.83

Attribute: 2706-LN-24-24-BB (24MP-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24-BB
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.500
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.5002
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-24-24-SS

$730.92

Attribute: 2706-LN-24-24-SS (24MP-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24-SS
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.500
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.141
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-32-32

$417.32

Attribute: 2706-LN-32-32 (32MP-32MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32
BODY HEX IN	2.750
C HEX 1 IN	2.750
OVERALL LENGTH L IN	3.910
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1867
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-32-32-BB

$2,161.85

Attribute: 2706-LN-32-32-BB (32MP-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32-BB
BODY HEX IN	2.750
C HEX 1 IN	2.750
OVERALL LENGTH L IN	3.910
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1867
CALIFORNIA RESIDENTS	PROP-65 WARNING

2706-LN-32-32-SS

$1,501.03

Attribute: 2706-LN-32-32-SS (32MP-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32-SS
BODY HEX IN	2.750
C HEX 1 IN	2.750
OVERALL LENGTH L IN	3.910
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Straight

ID	10144045
Category	Tube Fittings and Adapters

Description

Description

Variations (46)

2706-LN-02-04

2706-LN-02-04-BB

2706-LN-02-04-SS

2706-LN-04-02

2706-LN-04-04

2706-LN-04-04-BB

2706-LN-04-04-SS

2706-LN-04-06

2706-LN-04-06-BB

2706-LN-04-06-SS

2706-LN-06-04

2706-LN-06-04-BB

2706-LN-06-06

2706-LN-06-06-BB

2706-LN-06-06-SS

2706-LN-06-08

2706-LN-06-08-BB

2706-LN-06-08-SS

2706-LN-08-04

2706-LN-08-06

2706-LN-08-06-BB

2706-LN-08-08

2706-LN-08-08-BB

2706-LN-08-08-SS

2706-LN-08-10

2706-LN-08-10-BB

2706-LN-08-10-SS

2706-LN-08-12

2706-LN-08-12-BB

2706-LN-08-12-SS

2706-LN-12-12

2706-LN-12-12-BB

2706-LN-12-12-SS

2706-LN-12-16-SS

2706-LN-16-16

2706-LN-16-16-BB

2706-LN-16-16-SS

2706-LN-20-20

2706-LN-20-20-BB

2706-LN-20-20-SS

2706-LN-24-24

2706-LN-24-24-BB

2706-LN-24-24-SS

2706-LN-32-32

2706-LN-32-32-BB

2706-LN-32-32-SS

General Attributes

PDF Documents
