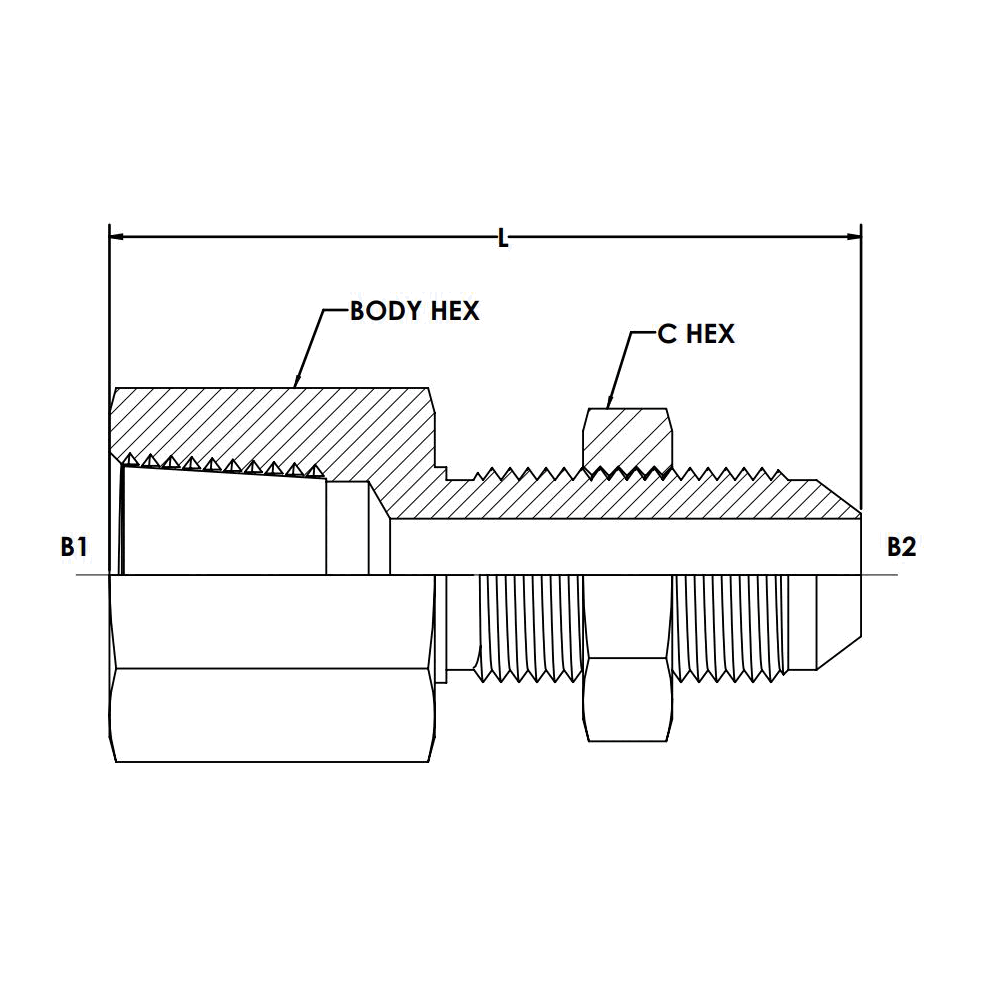

2705-LN

2705-LN-02-04

$13.98

Attribute: 2705-LN-02-04 (02FP-04MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	0.688
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.840
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1061
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-02-04-BB

$55.14

Attribute: 2705-LN-02-04-BB (02FP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-BB
BODY HEX IN	0.688
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.840
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1061
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-02-04-SS

$73.99

Attribute: 2705-LN-02-04-SS (02FP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-SS
BODY HEX IN	0.688
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.840
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.109
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-02-05

$68.62

Attribute: 2705-LN-02-05 (02FP-05MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-05
BODY HEX IN	0.750
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.890
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-02-05-SS

$236.12

Attribute: 2705-LN-02-05-SS (02FP-05MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-05-SS
BODY HEX IN	0.750
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.890
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-02

$16.15

Attribute: 2705-LN-04-02 (04FP-02MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-02
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.190
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1233
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-02-BB

$71.49

Attribute: 2705-LN-04-02-BB (04FP-02MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-02-BB
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.190
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1233
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-04

$15.95

Attribute: 2705-LN-04-04 (04FP-04MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	0.750
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.080
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1211
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-04-BB

$73.44

Attribute: 2705-LN-04-04-BB (04FP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-BB
BODY HEX IN	0.750
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.080
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1211
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-04-SS

$80.78

Attribute: 2705-LN-04-04-SS (04FP-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-SS
BODY HEX IN	0.750
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.090
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.124
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-05

$77.84

Attribute: 2705-LN-04-05 (04FP-05MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-05
BODY HEX IN	0.750
C HEX 1 IN	0.750
OVERALL LENGTH L IN	2.080
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-06

$18.80

Attribute: 2705-LN-04-06 (04FP-06MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1603
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-06-B

$108.94

Attribute: 2705-LN-04-06-B (04FP-06MJ Blkhd...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-B
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.170
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-06-BB

$64.01

Attribute: 2705-LN-04-06-BB (04FP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-BB
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.170
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1603
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-04-06-SS

$86.68

Attribute: 2705-LN-04-06-SS (04FP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-SS
BODY HEX IN	0.812
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.170
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.13
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-06-04

$18.66

Attribute: 2705-LN-06-04 (06FP-04MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	0.875
C HEX 1 IN	0.687
OVERALL LENGTH L IN	2.190
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.242
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-06-06

$17.13

Attribute: 2705-LN-06-06 (06FP-06MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	0.875
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.242
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-06-06-BB

$98.35

Attribute: 2705-LN-06-06-BB (06FP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-BB
BODY HEX IN	0.875
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.220
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.242
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-06-06-SS

$180.81

Attribute: 2705-LN-06-06-SS (06FP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-SS
BODY HEX IN	0.875
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.23
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-06-08

$28.79

Attribute: 2705-LN-06-08 (06FP-08MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.390
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2911
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-06-08-B

$66.68

Attribute: 2705-LN-06-08-B (06FP-08MJ Blkhd...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-B
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.390
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-06-08-BB

$71.40

Attribute: 2705-LN-06-08-BB (06FP-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-BB
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.390
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.2911
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-06-08-SS

$268.91

Attribute: 2705-LN-06-08-SS (06FP-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-SS
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.390
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.288
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-06

$25.70

Attribute: 2705-LN-08-06 (08FP-06MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	1.125
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.460
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.032
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-06-B

$73.82

Attribute: 2705-LN-08-06-B (08FP-06MJ Blkhd...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-B
BODY HEX IN	1.125
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.460
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-06-SS

$255.07

Attribute: 2705-LN-08-06-SS (08FP-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-SS
BODY HEX IN	1.125
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.460
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-08

$23.48

Attribute: 2705-LN-08-08 (08FP-08MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.610
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3617
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-08-BB

$71.47

Attribute: 2705-LN-08-08-BB (08FP-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-BB
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.610
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.3617
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-08-SS

$262.02

Attribute: 2705-LN-08-08-SS (08FP-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-SS
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.610
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.36
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-10

$32.88

Attribute: 2705-LN-08-10 (08FP-10MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10
BODY HEX IN	1.125
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.840
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.447
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-10-BB

$126.96

Attribute: 2705-LN-08-10-BB (08FP-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10-BB
BODY HEX IN	1.125
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.840
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.447
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-08-10-SS

$212.01

Attribute: 2705-LN-08-10-SS (08FP-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10-SS
BODY HEX IN	1.125
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.840
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.36
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-12-06

$42.00

Attribute: 2705-LN-12-06 (12FP-06MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	1.375
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.556
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.032
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-12-12

$41.98

Attribute: 2705-LN-12-12 (12FP-12MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.990
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.6467
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-12-12-BB

$137.87

Attribute: 2705-LN-12-12-BB (12FP-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-BB
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.990
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.6467
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-12-12-SS

$341.13

Attribute: 2705-LN-12-12-SS (12FP-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-SS
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.990
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.6
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-12-14

$139.45

Attribute: 2705-LN-12-14 (12FP-14MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-14
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.990
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.126
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-16-16

$62.02

Attribute: 2705-LN-16-16 (16FP-16MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16
BODY HEX IN	1.625
C HEX 1 IN	1.625
OVERALL LENGTH L IN	3.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.9266
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-16-16-BB

$186.39

Attribute: 2705-LN-16-16-BB (16FP-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-BB
BODY HEX IN	1.625
C HEX 1 IN	1.625
OVERALL LENGTH L IN	3.230
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.9266
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-16-16-SS

$381.14

Attribute: 2705-LN-16-16-SS (16FP-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-SS
BODY HEX IN	1.625
C HEX 1 IN	1.625
OVERALL LENGTH L IN	3.240
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.113
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-20-20

$91.66

Attribute: 2705-LN-20-20 (20FP-20MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20
BODY HEX IN	2.000
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.380
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.3658
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-20-20-BB

$313.75

Attribute: 2705-LN-20-20-BB (20FP-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20-BB
BODY HEX IN	2.000
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.380
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.3658
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-20-20-SS

$722.17

Attribute: 2705-LN-20-20-SS (20FP-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20-SS
BODY HEX IN	2.000
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.380
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-24-24

$124.93

Attribute: 2705-LN-24-24 (24FP-24MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24
BODY HEX IN	2.375
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.390
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.8565
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-24-24-BB

$352.44

Attribute: 2705-LN-24-24-BB (24FP-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24-BB
BODY HEX IN	2.375
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.390
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.8565
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-24-24-SS

$745.80

Attribute: 2705-LN-24-24-SS (24FP-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24-SS
BODY HEX IN	2.375
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.390
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.541
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-32-32

$436.57

Attribute: 2705-LN-32-32 (32FP-32MJ Blkhd S...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32
BODY HEX IN	2.875
C HEX 1 IN	2.750
OVERALL LENGTH L IN	3.602
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1867
CALIFORNIA RESIDENTS	PROP-65 WARNING

2705-LN-32-32-SS

$1,501.03

Attribute: 2705-LN-32-32-SS (32FP-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32-SS
BODY HEX IN	2.875
C HEX 1 IN	2.750
OVERALL LENGTH L IN	3.602
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Straight

ID	10143944
Category	Tube Fittings and Adapters

Description

Description

Variations (48)

2705-LN-02-04

2705-LN-02-04-BB

2705-LN-02-04-SS

2705-LN-02-05

2705-LN-02-05-SS

2705-LN-04-02

2705-LN-04-02-BB

2705-LN-04-04

2705-LN-04-04-BB

2705-LN-04-04-SS

2705-LN-04-05

2705-LN-04-06

2705-LN-04-06-B

2705-LN-04-06-BB

2705-LN-04-06-SS

2705-LN-06-04

2705-LN-06-06

2705-LN-06-06-BB

2705-LN-06-06-SS

2705-LN-06-08

2705-LN-06-08-B

2705-LN-06-08-BB

2705-LN-06-08-SS

2705-LN-08-06

2705-LN-08-06-B

2705-LN-08-06-SS

2705-LN-08-08

2705-LN-08-08-BB

2705-LN-08-08-SS

2705-LN-08-10

2705-LN-08-10-BB

2705-LN-08-10-SS

2705-LN-12-06

2705-LN-12-12

2705-LN-12-12-BB

2705-LN-12-12-SS

2705-LN-12-14

2705-LN-16-16

2705-LN-16-16-BB

2705-LN-16-16-SS

2705-LN-20-20

2705-LN-20-20-BB

2705-LN-20-20-SS

2705-LN-24-24

2705-LN-24-24-BB

2705-LN-24-24-SS

2705-LN-32-32

2705-LN-32-32-SS

General Attributes

PDF Documents
