Description

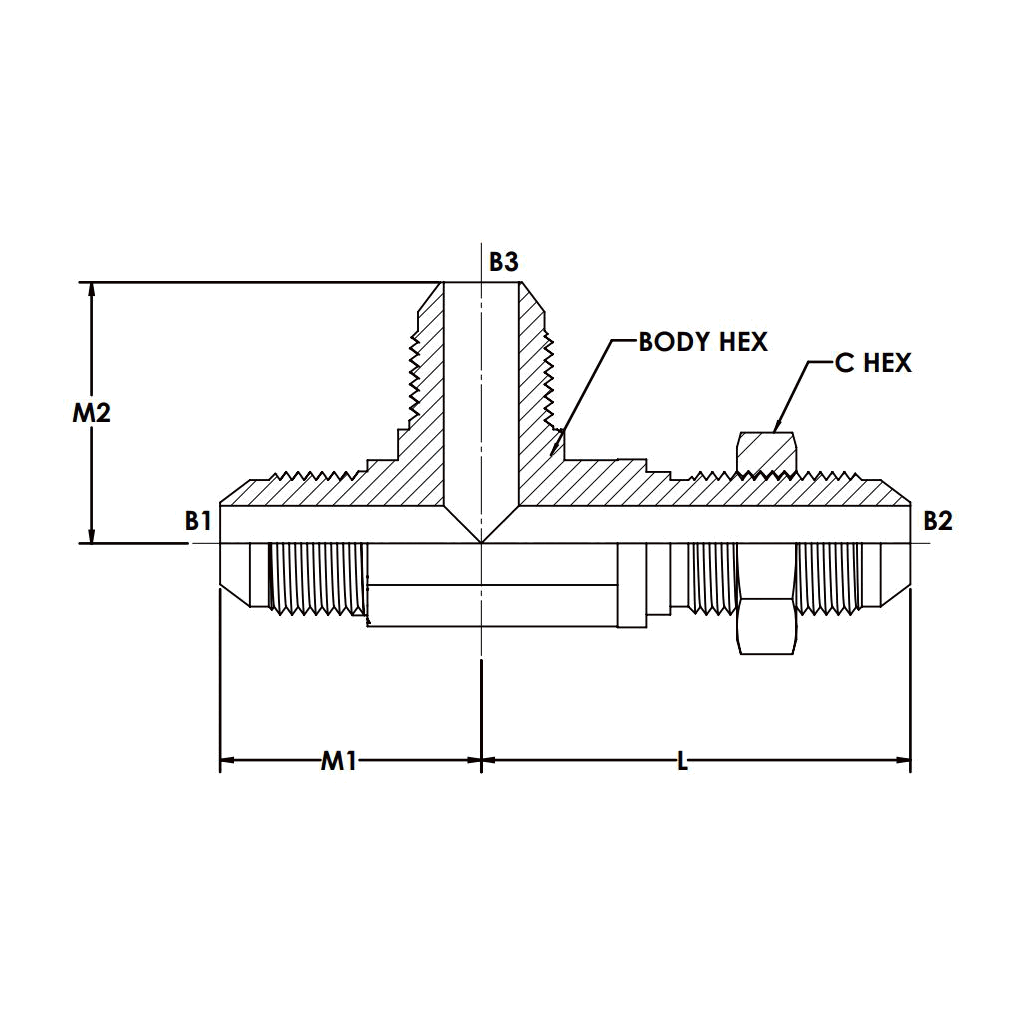

MJ-MJ-MJ Bulkhead Run Tee
Description
Variations (31)
2704-LN-03-03-03-FG
$20.67Attribute: 2704-LN-03-03-03-FG (03MJ-03MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/8-24 |
| THREAD 3 DRILL IN | 0.125 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 2.440 |
| OVERALL LENGTH L2 IN | 0.940 |
| CENTERLINE LENGTH M IN | 0.940 |
| CENTERLINE LENGTH M2 IN | 1.500 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1041 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-03-03-03-FG-BB
$50.63Attribute: 2704-LN-03-03-03-FG-BB (03MJ-03M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/8-24 |
| THREAD 3 DRILL IN | 0.125 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03-BB |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 2.440 |
| OVERALL LENGTH L2 IN | 0.940 |
| CENTERLINE LENGTH M IN | 0.940 |
| CENTERLINE LENGTH M2 IN | 1.500 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1041 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-03-03-03-SS
$208.32Attribute: 2704-LN-03-03-03-SS (03MJ-03MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/8-24 |
| THREAD 3 DRILL IN | 0.125 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03-SS |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 2.440 |
| OVERALL LENGTH L2 IN | 0.940 |
| CENTERLINE LENGTH M IN | 0.940 |
| CENTERLINE LENGTH M2 IN | 1.500 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.1037 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-04-04-04-FG
$16.54Attribute: 2704-LN-04-04-04-FG (04MJ-04MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.560 |
| OVERALL LENGTH L2 IN | 0.970 |
| CENTERLINE LENGTH M IN | 0.970 |
| CENTERLINE LENGTH M2 IN | 1.590 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1233 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-04-04-04-FG-BB
$120.94Attribute: 2704-LN-04-04-04-FG-BB (04MJ-04M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-BB |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.560 |
| OVERALL LENGTH L2 IN | 0.970 |
| CENTERLINE LENGTH M IN | 0.970 |
| CENTERLINE LENGTH M2 IN | 1.590 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1233 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-04-04-04-SS
$163.62Attribute: 2704-LN-04-04-04-SS (04MJ-04MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-SS |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.560 |
| OVERALL LENGTH L2 IN | 0.970 |
| CENTERLINE LENGTH M IN | 0.970 |
| CENTERLINE LENGTH M2 IN | 1.590 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-05-05-05-FG
$26.28Attribute: 2704-LN-05-05-05-FG (05MJ-05MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1/2-20 |
| THREAD 3 DRILL IN | 0.234 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-05 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 2.780 |
| OVERALL LENGTH L2 IN | 1.060 |
| CENTERLINE LENGTH M IN | 1.060 |
| CENTERLINE LENGTH M2 IN | 1.720 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1842 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-06-06-06-FG
$21.71Attribute: 2704-LN-06-06-06-FG (06MJ-06MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.900 |
| OVERALL LENGTH L2 IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.810 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1945 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-06-06-06-FG-BB
$105.11Attribute: 2704-LN-06-06-06-FG-BB (06MJ-06M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06-BB |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.900 |
| OVERALL LENGTH L2 IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.810 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1945 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-06-06-06-SS
$457.44Attribute: 2704-LN-06-06-06-SS (2704-LN-06-...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06-SS |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.900 |
| OVERALL LENGTH L2 IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.810 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.02 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-08-08-08-FG
$27.71Attribute: 2704-LN-08-08-08-FG (08MJ-08MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 3.470 |
| OVERALL LENGTH L2 IN | 1.360 |
| CENTERLINE LENGTH M IN | 1.360 |
| CENTERLINE LENGTH M2 IN | 2.110 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.4 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-08-08-08-FG-BB
$185.76Attribute: 2704-LN-08-08-08-FG-BB (08MJ-08M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-BB |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 3.470 |
| OVERALL LENGTH L2 IN | 1.360 |
| CENTERLINE LENGTH M IN | 1.360 |
| CENTERLINE LENGTH M2 IN | 2.110 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 16.0515 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-08-08-08-SS
$488.89Attribute: 2704-LN-08-08-08-SS (08MJ-08MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-SS |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 3.470 |
| OVERALL LENGTH L2 IN | 1.360 |
| CENTERLINE LENGTH M IN | 1.360 |
| CENTERLINE LENGTH M2 IN | 2.110 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.04 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-08-10-08-FG
$81.61Attribute: 2704-LN-08-10-08-FG (08MJ-10MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 3.720 |
| OVERALL LENGTH L2 IN | 1.330 |
| CENTERLINE LENGTH M IN | 1.330 |
| CENTERLINE LENGTH M2 IN | 2.390 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.604 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-08-10-08-FG-BB
$402.74Attribute: 2704-LN-08-10-08-FG-BB (08MJ-10M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10-BB |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 3.720 |
| OVERALL LENGTH L2 IN | 1.330 |
| CENTERLINE LENGTH M IN | 1.330 |
| CENTERLINE LENGTH M2 IN | 2.390 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.604 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-10-10-10-FG
$56.86Attribute: 2704-LN-10-10-10-FG (10MJ-10MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 3.950 |
| OVERALL LENGTH L2 IN | 1.560 |
| CENTERLINE LENGTH M IN | 1.560 |
| CENTERLINE LENGTH M2 IN | 2.390 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5977 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-10-10-10-FG-BB
$358.65Attribute: 2704-LN-10-10-10-FG-BB (10MJ-10M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10-BB |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 3.950 |
| OVERALL LENGTH L2 IN | 1.560 |
| CENTERLINE LENGTH M IN | 1.560 |
| CENTERLINE LENGTH M2 IN | 2.390 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.5977 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-10-10-10-SS
$652.90Attribute: 2704-LN-10-10-10-SS (10MJ-10MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10-SS |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 3.950 |
| OVERALL LENGTH L2 IN | 1.560 |
| CENTERLINE LENGTH M IN | 1.560 |
| CENTERLINE LENGTH M2 IN | 2.390 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.48 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-12-12-12-FG
$68.82Attribute: 2704-LN-12-12-12-FG (12MJ-12MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 4.450 |
| OVERALL LENGTH L2 IN | 1.780 |
| CENTERLINE LENGTH M IN | 1.780 |
| CENTERLINE LENGTH M2 IN | 2.670 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.973 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-12-12-12-FG-BB
$326.01Attribute: 2704-LN-12-12-12-FG-BB (12MJ-12M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12-BB |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 4.450 |
| OVERALL LENGTH L2 IN | 1.780 |
| CENTERLINE LENGTH M IN | 1.780 |
| CENTERLINE LENGTH M2 IN | 2.670 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.973 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-12-12-12-SS
$490.72Attribute: 2704-LN-12-12-12-SS (12MJ-12MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12-SS |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 4.450 |
| OVERALL LENGTH L2 IN | 1.780 |
| CENTERLINE LENGTH M IN | 1.780 |
| CENTERLINE LENGTH M2 IN | 2.670 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.943 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-16-16-16-FG
$127.39Attribute: 2704-LN-16-16-16-FG (16MJ-16MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 4.740 |
| OVERALL LENGTH L2 IN | 1.940 |
| CENTERLINE LENGTH M IN | 1.940 |
| CENTERLINE LENGTH M2 IN | 2.800 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.3391 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-16-16-16-SS
$865.55Attribute: 2704-LN-16-16-16-SS (16MJ-16MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16-SS |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 4.740 |
| OVERALL LENGTH L2 IN | 1.940 |
| CENTERLINE LENGTH M IN | 1.940 |
| CENTERLINE LENGTH M2 IN | 2.800 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.363 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-16-24-20-FG
$392.26Attribute: 2704-LN-16-24-20-FG (16MJ-24MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/8-12 |
| THREAD 3 DRILL IN | 1.078 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 5.590 |
| OVERALL LENGTH L2 IN | 2.210 |
| CENTERLINE LENGTH M IN | 2.170 |
| CENTERLINE LENGTH M2 IN | 3.420 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.144 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-20-20-20-FG
$206.94Attribute: 2704-LN-20-20-20-FG (20MJ-20MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/8-12 |
| THREAD 3 DRILL IN | 1.078 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 5.290 |
| OVERALL LENGTH L2 IN | 2.170 |
| CENTERLINE LENGTH M IN | 2.170 |
| CENTERLINE LENGTH M2 IN | 3.120 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.0915 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-20-20-20-SS
$1,201.33Attribute: 2704-LN-20-20-20-SS (20MJ-20MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/8-12 |
| THREAD 3 DRILL IN | 1.078 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20-SS |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 5.290 |
| OVERALL LENGTH L2 IN | 2.170 |
| CENTERLINE LENGTH M IN | 2.170 |
| CENTERLINE LENGTH M2 IN | 3.120 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.12 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-24-24-24-FG
$300.07Attribute: 2704-LN-24-24-24-FG (24MJ-24MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-7/8-12 |
| THREAD 3 DRILL IN | 1.312 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 5.760 |
| OVERALL LENGTH L2 IN | 2.340 |
| CENTERLINE LENGTH M IN | 2.340 |
| CENTERLINE LENGTH M2 IN | 3.420 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.7815 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-24-24-24-FG-BB
$802.18Attribute: 2704-LN-24-24-24-FG-BB (24MJ-24M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-7/8-12 |
| THREAD 3 DRILL IN | 1.312 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24-BB |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 5.760 |
| OVERALL LENGTH L2 IN | 2.340 |
| CENTERLINE LENGTH M IN | 2.340 |
| CENTERLINE LENGTH M2 IN | 3.420 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 2.7815 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-24-24-24-SS
$1,475.49Attribute: 2704-LN-24-24-24-SS (24MJ-24MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-7/8-12 |
| THREAD 3 DRILL IN | 1.312 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24-SS |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 5.760 |
| OVERALL LENGTH L2 IN | 2.340 |
| CENTERLINE LENGTH M IN | 2.340 |
| CENTERLINE LENGTH M2 IN | 3.420 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.12 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-32-32-32-FG
$682.43Attribute: 2704-LN-32-32-32-FG (32MJ-32MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 2-1/2-12 |
| THREAD 3 DRILL IN | 1.781 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-32 |
| BODY HEX IN | 2.500 |
| C HEX 1 IN | 2.750 |
| OVERALL LENGTH L IN | 7.000 |
| OVERALL LENGTH L2 IN | 2.890 |
| CENTERLINE LENGTH M IN | 2.890 |
| CENTERLINE LENGTH M2 IN | 4.110 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1867 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2704-LN-32-32-32-SS
$3,014.39Attribute: 2704-LN-32-32-32-SS (32MJ-32MJ B...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 2-1/2-12 |
| THREAD 3 DRILL IN | 1.781 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-32-SS |
| BODY HEX IN | 2.500 |
| C HEX 1 IN | 2.750 |
| OVERALL LENGTH L IN | 7.000 |
| OVERALL LENGTH L2 IN | 2.890 |
| CENTERLINE LENGTH M IN | 2.890 |
| CENTERLINE LENGTH M2 IN | 4.110 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.12 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC |
|---|---|
| Shape | Tee |
PDF Documents
No PDF documents scraped.
