2704-FG

2704-03-03-03-FG

$16.24

Attribute: 2704-03-03-03-FG (03MJ-03MJ Blkh...)

Stock Status: True

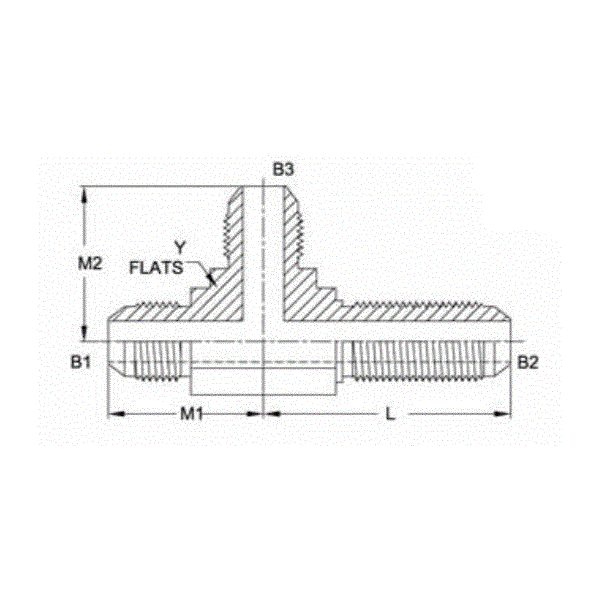

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	2.440
OVERALL LENGTH L2 IN	0.940
CENTERLINE LENGTH M IN	0.940
CENTERLINE LENGTH M2 IN	1.500
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-03-03-03-FG-BB

$39.80

Attribute: 2704-03-03-03-FG-BB (03MJ-03MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	2.440
OVERALL LENGTH L2 IN	0.940
CENTERLINE LENGTH M IN	0.940
CENTERLINE LENGTH M2 IN	1.500
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-03-03-03-SS

$186.66

Attribute: 2704-03-03-03-SS (03MJ-03MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	2.440
OVERALL LENGTH L2 IN	0.940
CENTERLINE LENGTH M IN	0.940
CENTERLINE LENGTH M2 IN	1.500
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-04-04-04-FG

$15.80

Attribute: 2704-04-04-04-FG (04MJ-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	2.560
OVERALL LENGTH L2 IN	0.970
CENTERLINE LENGTH M IN	0.970
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-04-04-04-FG-BB

$111.87

Attribute: 2704-04-04-04-FG-BB (04MJ-04MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	2.560
OVERALL LENGTH L2 IN	0.970
CENTERLINE LENGTH M IN	0.970
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-04-04-04-SS

$106.22

Attribute: 2704-04-04-04-SS (04MJ-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	2.560
OVERALL LENGTH L2 IN	0.970
CENTERLINE LENGTH M IN	0.970
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.105
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-05-05-05-FG

$20.93

Attribute: 2704-05-05-05-FG (05MJ-05MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.780
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.720
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-05-05-05-FG-BB

$121.65

Attribute: 2704-05-05-05-FG-BB (05MJ-05MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.780
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.720
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-06-06-06-FG

$23.33

Attribute: 2704-06-06-06-FG (06MJ-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	1.090
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-06-06-06-FG-BB

$98.27

Attribute: 2704-06-06-06-FG-BB (06MJ-06MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	1.090
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-06-06-06-SS

$432.83

Attribute: 2704-06-06-06-SS (06MJ-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	1.090
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1672
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-08-08-08-FG

$24.37

Attribute: 2704-08-08-08-FG (08MJ-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	3.470
OVERALL LENGTH L2 IN	1.360
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	2.110
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.36
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-08-08-08-FG-BB

$178.17

Attribute: 2704-08-08-08-FG-BB (08MJ-08MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	3.470
OVERALL LENGTH L2 IN	1.360
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	2.110
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	16.0115
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-08-08-08-SS

$469.45

Attribute: 2704-08-08-08-SS (08MJ-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	3.470
OVERALL LENGTH L2 IN	1.360
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	2.110
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.675
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-08-10-08-FG

$59.41

Attribute: 2704-08-10-08-FG (08MJ-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	3.720
OVERALL LENGTH L2 IN	1.330
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-08-10-08-FG-BB

$395.15

Attribute: 2704-08-10-08-FG-BB (08MJ-10MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	3.720
OVERALL LENGTH L2 IN	1.330
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-10-10-10-FG

$57.74

Attribute: 2704-10-10-10-FG (10MJ-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	3.950
OVERALL LENGTH L2 IN	1.560
CENTERLINE LENGTH M IN	1.560
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5437
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-10-10-10-FG-BB

$351.04

Attribute: 2704-10-10-10-FG-BB (10MJ-10MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	3.950
OVERALL LENGTH L2 IN	1.560
CENTERLINE LENGTH M IN	1.560
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.5437
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-10-10-10-SS

$618.71

Attribute: 2704-10-10-10-SS (10MJ-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	3.950
OVERALL LENGTH L2 IN	1.560
CENTERLINE LENGTH M IN	1.560
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-12-12-12-FG

$71.08

Attribute: 2704-12-12-12-FG (12MJ-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	4.450
OVERALL LENGTH L2 IN	1.780
CENTERLINE LENGTH M IN	1.780
CENTERLINE LENGTH M2 IN	2.670
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.88
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-12-12-12-FG-BB

$311.52

Attribute: 2704-12-12-12-FG-BB (12MJ-12MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	4.450
OVERALL LENGTH L2 IN	1.780
CENTERLINE LENGTH M IN	1.780
CENTERLINE LENGTH M2 IN	2.670
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.88
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-12-12-12-SS

$457.78

Attribute: 2704-12-12-12-SS (12MJ-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	4.450
OVERALL LENGTH L2 IN	1.780
CENTERLINE LENGTH M IN	1.780
CENTERLINE LENGTH M2 IN	2.670
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.843
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-16-16-16-FG

$109.28

Attribute: 2704-16-16-16-FG (16MJ-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	4.740
OVERALL LENGTH L2 IN	1.940
CENTERLINE LENGTH M IN	1.940
CENTERLINE LENGTH M2 IN	2.800
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-16-16-16-SS

$813.87

Attribute: 2704-16-16-16-SS (16MJ-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	4.740
OVERALL LENGTH L2 IN	1.940
CENTERLINE LENGTH M IN	1.940
CENTERLINE LENGTH M2 IN	2.800
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-16-24-20-FG

$383.80

Attribute: 2704-16-24-20-FG (16MJ-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	5.590
OVERALL LENGTH L2 IN	2.210
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	3.420
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.5312
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-20-20-20-FG

$188.92

Attribute: 2704-20-20-20-FG (20MJ-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	5.290
OVERALL LENGTH L2 IN	2.170
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	3.120
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.9687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-20-20-20-SS

$1,108.91

Attribute: 2704-20-20-20-SS (20MJ-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	5.290
OVERALL LENGTH L2 IN	2.170
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	3.120
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-24-24-24-FG

$172.24

Attribute: 2704-24-24-24-FG (24MJ-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	5.760
OVERALL LENGTH L2 IN	2.340
CENTERLINE LENGTH M IN	2.340
CENTERLINE LENGTH M2 IN	3.420
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.6375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-24-24-24-FG-BB

$737.56

Attribute: 2704-24-24-24-FG-BB (24MJ-24MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	5.760
OVERALL LENGTH L2 IN	2.340
CENTERLINE LENGTH M IN	2.340
CENTERLINE LENGTH M2 IN	3.420
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	2.6375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-24-24-24-SS

$1,514.72

Attribute: 2704-24-24-24-SS (24MJ-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	5.760
OVERALL LENGTH L2 IN	2.340
CENTERLINE LENGTH M IN	2.340
CENTERLINE LENGTH M2 IN	3.420
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-32-32-32-FG

$654.77

Attribute: 2704-32-32-32-FG (32MJ-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	7.000
OVERALL LENGTH L2 IN	2.890
CENTERLINE LENGTH M IN	2.890
CENTERLINE LENGTH M2 IN	4.110
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2704-32-32-32-SS

$2,855.46

Attribute: 2704-32-32-32-SS (32MJ-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	7.000
OVERALL LENGTH L2 IN	2.890
CENTERLINE LENGTH M IN	2.890
CENTERLINE LENGTH M2 IN	4.110
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Tee

ID	10143824
Category	Tube Fittings and Adapters

Description

Description

Variations (32)

2704-03-03-03-FG

2704-03-03-03-FG-BB

2704-03-03-03-SS

2704-04-04-04-FG

2704-04-04-04-FG-BB

2704-04-04-04-SS

2704-05-05-05-FG

2704-05-05-05-FG-BB

2704-06-06-06-FG

2704-06-06-06-FG-BB

2704-06-06-06-SS

2704-08-08-08-FG

2704-08-08-08-FG-BB

2704-08-08-08-SS

2704-08-10-08-FG

2704-08-10-08-FG-BB

2704-10-10-10-FG

2704-10-10-10-FG-BB

2704-10-10-10-SS

2704-12-12-12-FG

2704-12-12-12-FG-BB

2704-12-12-12-SS

2704-16-16-16-FG

2704-16-16-16-SS

2704-16-24-20-FG

2704-20-20-20-FG

2704-20-20-20-SS

2704-24-24-24-FG

2704-24-24-24-FG-BB

2704-24-24-24-SS

2704-32-32-32-FG

2704-32-32-32-SS

General Attributes

PDF Documents
