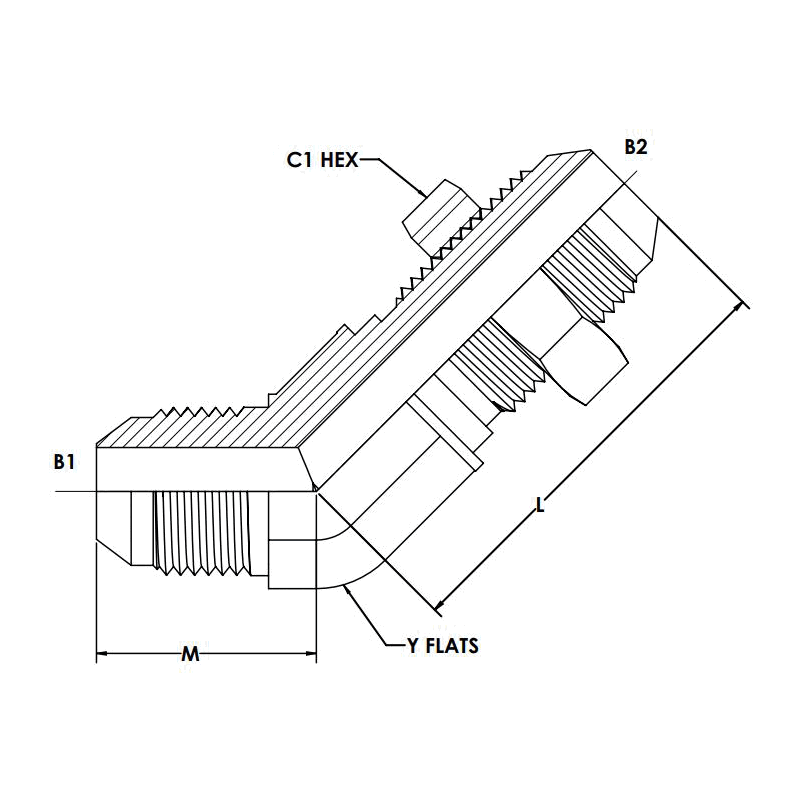

2702-LN-FG

2702-LN-02-02-SS

$119.58

Attribute: 2702-LN-02-02-SS (02MJ-02MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-02-SS
BODY HEX IN	0.438
C HEX 1 IN	0.562
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-03-03-FG

$14.28

Attribute: 2702-LN-03-03-FG (03MJ-03MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-03
BODY HEX IN	0.438
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	0.690
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0729
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-03-03-SS

$383.64

Attribute: 2702-LN-03-03-SS (03MJ-03MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-03-SS
BODY HEX IN	0.438
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	0.690
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-04-04-FG

$13.88

Attribute: 2702-LN-04-04-FG (04MJ-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	0.438
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.530
CENTERLINE LENGTH M IN	0.720
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0798
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-04-04-FG-BB

$65.98

Attribute: 2702-LN-04-04-FG-BB (04MJ-04MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-BB
BODY HEX IN	0.438
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.530
CENTERLINE LENGTH M IN	0.720
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.0851
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-04-04-SS

$156.48

Attribute: 2702-LN-04-04-SS (04MJ-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-SS
BODY HEX IN	0.438
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.530
CENTERLINE LENGTH M IN	0.720
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.02
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-05-05-FG

$25.79

Attribute: 2702-LN-05-05-FG (05MJ-05MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-05
BODY HEX IN	0.562
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	0.770
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1279
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-05-05-FG-BB

$146.49

Attribute: 2702-LN-05-05-FG-BB (05MJ-05MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-05-BB
BODY HEX IN	0.562
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	0.770
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1279
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-06-06-FG

$13.79

Attribute: 2702-LN-06-06-FG (06MJ-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	0.562
C HEX 1 IN	0.812
OVERALL LENGTH L IN	1.670
CENTERLINE LENGTH M IN	0.830
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1347
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-06-06-FG-BB

$62.62

Attribute: 2702-LN-06-06-FG-BB (06MJ-06MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-BB
BODY HEX IN	0.562
C HEX 1 IN	0.812
OVERALL LENGTH L IN	1.670
CENTERLINE LENGTH M IN	0.830
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.157
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-06-06-SS

$135.66

Attribute: 2702-LN-06-06-SS (06MJ-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-SS
BODY HEX IN	0.562
C HEX 1 IN	0.812
OVERALL LENGTH L IN	1.670
CENTERLINE LENGTH M IN	0.830
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.02
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-08-08-FG

$18.96

Attribute: 2702-LN-08-08-FG (08MJ-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08
BODY HEX IN	0.750
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.26
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-08-08-FG-BB

$99.43

Attribute: 2702-LN-08-08-FG-BB (08MJ-08MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-BB
BODY HEX IN	0.750
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.2775
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-08-08-SS

$166.57

Attribute: 2702-LN-08-08-SS (08MJ-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-SS
BODY HEX IN	0.750
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-10-10-FG

$28.45

Attribute: 2702-LN-10-10-FG (10MJ-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10
BODY HEX IN	0.875
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.170
CENTERLINE LENGTH M IN	1.110
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3915
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-10-10-FG-BB

$83.75

Attribute: 2702-LN-10-10-FG-BB (10MJ-10MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10-BB
BODY HEX IN	0.875
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.170
CENTERLINE LENGTH M IN	1.110
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.3915
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-12-12-FG

$39.38

Attribute: 2702-LN-12-12-FG (12MJ-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12
BODY HEX IN	1.062
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.440
CENTERLINE LENGTH M IN	1.280
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.648
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-12-12-FG-BB

$125.66

Attribute: 2702-LN-12-12-FG-BB (12MJ-12MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-BB
BODY HEX IN	1.062
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.440
CENTERLINE LENGTH M IN	1.280
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.093
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-12-12-SS

$321.14

Attribute: 2702-LN-12-12-SS (12MJ-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-SS
BODY HEX IN	1.062
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.440
CENTERLINE LENGTH M IN	1.280
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-16-16-FG

$67.05

Attribute: 2702-LN-16-16-FG (16MJ-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16
BODY HEX IN	1.312
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.560
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.9328
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-16-16-FG-BB

$229.54

Attribute: 2702-LN-16-16-FG-BB (16MJ-16MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-BB
BODY HEX IN	1.312
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.560
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.9328
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-16-16-SS

$520.64

Attribute: 2702-LN-16-16-SS (16MJ-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-SS
BODY HEX IN	1.312
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.560
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.113
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-20-20-FG

$100.91

Attribute: 2702-LN-20-20-FG (20MJ-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.650
CENTERLINE LENGTH M IN	1.590
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5228
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-20-20-FG-BB

$762.43

Attribute: 2702-LN-20-20-FG-BB (20MJ-20MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20-BB
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.650
CENTERLINE LENGTH M IN	1.590
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.5228
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-20-20-SS

$1,007.37

Attribute: 2702-LN-20-20-SS (20MJ-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20-SS
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.650
CENTERLINE LENGTH M IN	1.590
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-24-24-FG

$177.70

Attribute: 2702-LN-24-24-FG (24MJ-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.794
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-24-24-FG-BB

$1,287.31

Attribute: 2702-LN-24-24-FG-BB (24MJ-24MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24-BB
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.794
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-24-24-SS

$1,138.50

Attribute: 2702-LN-24-24-SS (24MJ-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24-SS
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-32-32-FG

$426.42

Attribute: 2702-LN-32-32-FG (32MJ-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	2.910
CENTERLINE LENGTH M IN	2.220
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.4992
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-LN-32-32-SS

$2,443.31

Attribute: 2702-LN-32-32-SS (32MJ-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32-SS
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	2.910
CENTERLINE LENGTH M IN	2.220
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Elbow

ID	10143790
Category	Tube Fittings and Adapters

Description

Description

Variations (30)

2702-LN-02-02-SS

2702-LN-03-03-FG

2702-LN-03-03-SS

2702-LN-04-04-FG

2702-LN-04-04-FG-BB

2702-LN-04-04-SS

2702-LN-05-05-FG

2702-LN-05-05-FG-BB

2702-LN-06-06-FG

2702-LN-06-06-FG-BB

2702-LN-06-06-SS

2702-LN-08-08-FG

2702-LN-08-08-FG-BB

2702-LN-08-08-SS

2702-LN-10-10-FG

2702-LN-10-10-FG-BB

2702-LN-12-12-FG

2702-LN-12-12-FG-BB

2702-LN-12-12-SS

2702-LN-16-16-FG

2702-LN-16-16-FG-BB

2702-LN-16-16-SS

2702-LN-20-20-FG

2702-LN-20-20-FG-BB

2702-LN-20-20-SS

2702-LN-24-24-FG

2702-LN-24-24-FG-BB

2702-LN-24-24-SS

2702-LN-32-32-FG

2702-LN-32-32-SS

General Attributes

PDF Documents
