2701-LN-FG

2701-LN-02-02-FG

$16.24

Attribute: 2701-LN-02-02-FG (02MJ-02MJ Blkh...)

Stock Status: True

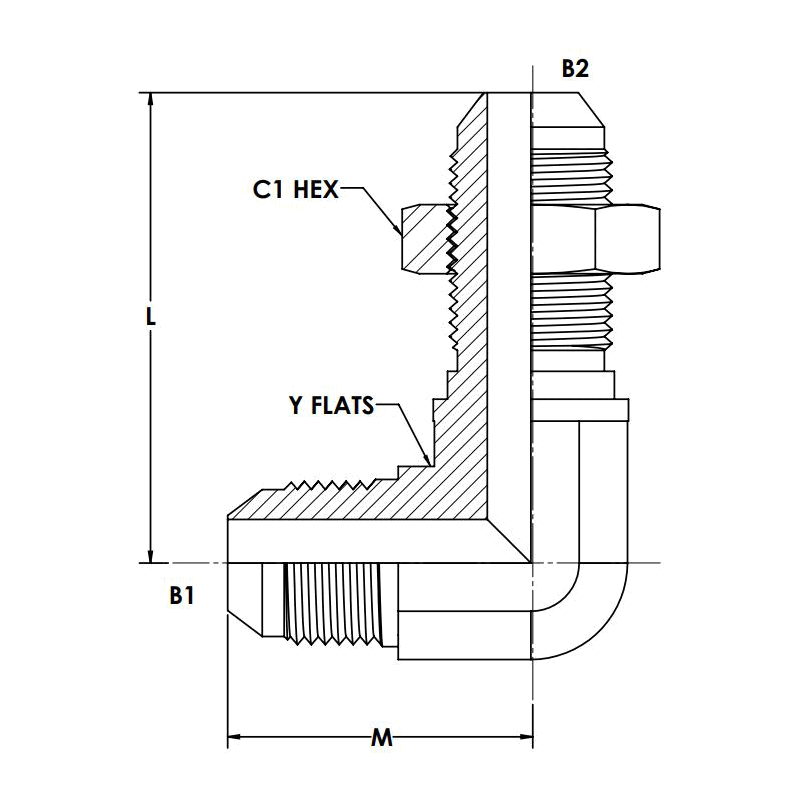

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-02
BODY HEX IN	0.438
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.500
CENTERLINE LENGTH M IN	0.880
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0105
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-02-02-FG-BB

$93.87

Attribute: 2701-LN-02-02-FG-BB (02MJ-02MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-02-BB
BODY HEX IN	0.438
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.500
CENTERLINE LENGTH M IN	0.880
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.0105
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-02-02-SS

$115.78

Attribute: 2701-LN-02-02-SS (02MJ-02MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-02-SS
BODY HEX IN	0.438
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.500
CENTERLINE LENGTH M IN	0.880
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-03-03-FG

$11.52

Attribute: 2701-LN-03-03-FG (03MJ-03MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-03
BODY HEX IN	0.438
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.500
CENTERLINE LENGTH M IN	0.940
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0804
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-03-03-FG-BB

$56.40

Attribute: 2701-LN-03-03-FG-BB (03MJ-03MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-03-BB
BODY HEX IN	0.438
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.500
CENTERLINE LENGTH M IN	0.940
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.0804
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-03-03-SS

$70.43

Attribute: 2701-LN-03-03-SS (03MJ-03MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-03-SS
BODY HEX IN	0.438
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.500
CENTERLINE LENGTH M IN	0.940
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.01
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-04-04-FG

$15.22

Attribute: 2701-LN-04-04-FG (04MJ-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04
BODY HEX IN	0.438
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	0.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1071
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-04-04-FG-BB

$50.79

Attribute: 2701-LN-04-04-FG-BB (04MJ-04MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-BB
BODY HEX IN	0.438
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	0.970
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1071
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-04-04-SS

$92.74

Attribute: 2701-LN-04-04-SS (04MJ-04MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-04-SS
BODY HEX IN	0.438
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	0.970
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.02
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-05-05-FG

$23.78

Attribute: 2701-LN-05-05-FG (05MJ-05MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-05
BODY HEX IN	0.562
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.720
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1529
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-05-05-FG-BB

$85.59

Attribute: 2701-LN-05-05-FG-BB (05MJ-05MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-05-BB
BODY HEX IN	0.562
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.720
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1529
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-05-05-SS

$79.35

Attribute: 2701-LN-05-05-SS (05MJ-05MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-05-SS
BODY HEX IN	0.562
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.720
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-06-06-FG

$13.98

Attribute: 2701-LN-06-06-FG (06MJ-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	0.562
C HEX 1 IN	0.812
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.163
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-06-06-FG-BB

$42.83

Attribute: 2701-LN-06-06-FG-BB (06MJ-06MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-BB
BODY HEX IN	0.562
C HEX 1 IN	0.812
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.163
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-06-06-SS

$123.55

Attribute: 2701-LN-06-06-SS (06MJ-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06-SS
BODY HEX IN	0.562
C HEX 1 IN	0.812
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.02
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-06-08-FG

$51.95

Attribute: 2701-LN-06-08-FG (06MJ-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08
BODY HEX IN	0.750
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.010
CENTERLINE LENGTH M IN	1.260
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-08-06-FG

$22.64

Attribute: 2701-LN-08-06-FG (08MJ-06MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-06
BODY HEX IN	0.750
C HEX 1 IN	0.812
OVERALL LENGTH L IN	2.000
CENTERLINE LENGTH M IN	1.360
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-08-08-FG

$19.94

Attribute: 2701-LN-08-08-FG (08MJ-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08
BODY HEX IN	0.750
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.110
CENTERLINE LENGTH M IN	1.360
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3315
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-08-08-FG-BB

$52.50

Attribute: 2701-LN-08-08-FG-BB (08MJ-08MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-BB
BODY HEX IN	0.750
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.110
CENTERLINE LENGTH M IN	1.360
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.3315
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-08-08-SS

$127.05

Attribute: 2701-LN-08-08-SS (08MJ-08MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-08-SS
BODY HEX IN	0.750
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.110
CENTERLINE LENGTH M IN	1.360
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-10-10-FG

$27.42

Attribute: 2701-LN-10-10-FG (10MJ-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10
BODY HEX IN	0.875
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	1.560
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.514
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-10-10-FG-BB

$93.57

Attribute: 2701-LN-10-10-FG-BB (10MJ-10MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10-BB
BODY HEX IN	0.875
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	1.560
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.514
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-10-10-SS

$369.14

Attribute: 2701-LN-10-10-SS (10MJ-10MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-10-SS
BODY HEX IN	0.875
C HEX 1 IN	1.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	1.560
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.06
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-12-12-FG

$36.47

Attribute: 2701-LN-12-12-FG (12MJ-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12
BODY HEX IN	1.062
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-12-12-FG-BB

$152.97

Attribute: 2701-LN-12-12-FG-BB (12MJ-12MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-BB
BODY HEX IN	1.062
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.8263
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-12-12-SS

$297.06

Attribute: 2701-LN-12-12-SS (12MJ-12MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-12-SS
BODY HEX IN	1.062
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-12-16-FG

$178.28

Attribute: 2701-LN-12-16-FG (12MJ-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16
BODY HEX IN	1.312
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.800
CENTERLINE LENGTH M IN	1.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-14-14-FG

$138.91

Attribute: 2701-LN-14-14-FG (14MJ-14MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-14
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.800
CENTERLINE LENGTH M IN	1.920
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.1197
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-14-14-FG-BB

$934.44

Attribute: 2701-LN-14-14-FG-BB (14MJ-14MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-14-BB
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.800
CENTERLINE LENGTH M IN	1.920
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.1197
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-14-14-SS

$510.72

Attribute: 2701-LN-14-14-SS (14MJ-14MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-14-SS
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.800
CENTERLINE LENGTH M IN	1.920
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-16-16-FG

$61.73

Attribute: 2701-LN-16-16-FG (16MJ-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16
BODY HEX IN	1.312
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.800
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.2066
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-16-16-FG-BB

$243.03

Attribute: 2701-LN-16-16-FG-BB (16MJ-16MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-BB
BODY HEX IN	1.312
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.800
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.2066
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-16-16-SS

$291.95

Attribute: 2701-LN-16-16-SS (16MJ-16MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-16-SS
BODY HEX IN	1.312
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.800
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.113
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-20-20-FG

$111.93

Attribute: 2701-LN-20-20-FG (20MJ-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.120
CENTERLINE LENGTH M IN	2.170
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.8415
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-20-20-FG-BB

$303.20

Attribute: 2701-LN-20-20-FG-BB (20MJ-20MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20-BB
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.120
CENTERLINE LENGTH M IN	2.170
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.8415
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-20-20-SS

$532.31

Attribute: 2701-LN-20-20-SS (20MJ-20MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-20-SS
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	3.120
CENTERLINE LENGTH M IN	2.170
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-24-24-FG

$177.05

Attribute: 2701-LN-24-24-FG (24MJ-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.420
CENTERLINE LENGTH M IN	2.340
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.4127
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-24-24-FG-BB

$1,465.03

Attribute: 2701-LN-24-24-FG-BB (24MJ-24MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24-BB
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.420
CENTERLINE LENGTH M IN	2.340
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	2.4127
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-24-24-SS

$840.31

Attribute: 2701-LN-24-24-SS (24MJ-24MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-24-SS
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	3.420
CENTERLINE LENGTH M IN	2.340
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.727
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-32-32-FG

$384.40

Attribute: 2701-LN-32-32-FG (32MJ-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	4.110
CENTERLINE LENGTH M IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1867
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-32-32-FG-BB

$1,114.21

Attribute: 2701-LN-32-32-FG-BB (32MJ-32MJ B...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32-BB
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	4.110
CENTERLINE LENGTH M IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1867
CALIFORNIA RESIDENTS	PROP-65 WARNING

2701-LN-32-32-SS

$2,216.91

Attribute: 2701-LN-32-32-SS (32MJ-32MJ Blkh...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 4 SPECIFICATION	LOCKNUT 0306-32-SS
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	4.110
CENTERLINE LENGTH M IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.19
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Elbow

ID	10143742
Category	Tube Fittings and Adapters

Description

Description

Variations (42)

2701-LN-02-02-FG

2701-LN-02-02-FG-BB

2701-LN-02-02-SS

2701-LN-03-03-FG

2701-LN-03-03-FG-BB

2701-LN-03-03-SS

2701-LN-04-04-FG

2701-LN-04-04-FG-BB

2701-LN-04-04-SS

2701-LN-05-05-FG

2701-LN-05-05-FG-BB

2701-LN-05-05-SS

2701-LN-06-06-FG

2701-LN-06-06-FG-BB

2701-LN-06-06-SS

2701-LN-06-08-FG

2701-LN-08-06-FG

2701-LN-08-08-FG

2701-LN-08-08-FG-BB

2701-LN-08-08-SS

2701-LN-10-10-FG

2701-LN-10-10-FG-BB

2701-LN-10-10-SS

2701-LN-12-12-FG

2701-LN-12-12-FG-BB

2701-LN-12-12-SS

2701-LN-12-16-FG

2701-LN-14-14-FG

2701-LN-14-14-FG-BB

2701-LN-14-14-SS

2701-LN-16-16-FG

2701-LN-16-16-FG-BB

2701-LN-16-16-SS

2701-LN-20-20-FG

2701-LN-20-20-FG-BB

2701-LN-20-20-SS

2701-LN-24-24-FG

2701-LN-24-24-FG-BB

2701-LN-24-24-SS

2701-LN-32-32-FG

2701-LN-32-32-FG-BB

2701-LN-32-32-SS

General Attributes

PDF Documents
