Description

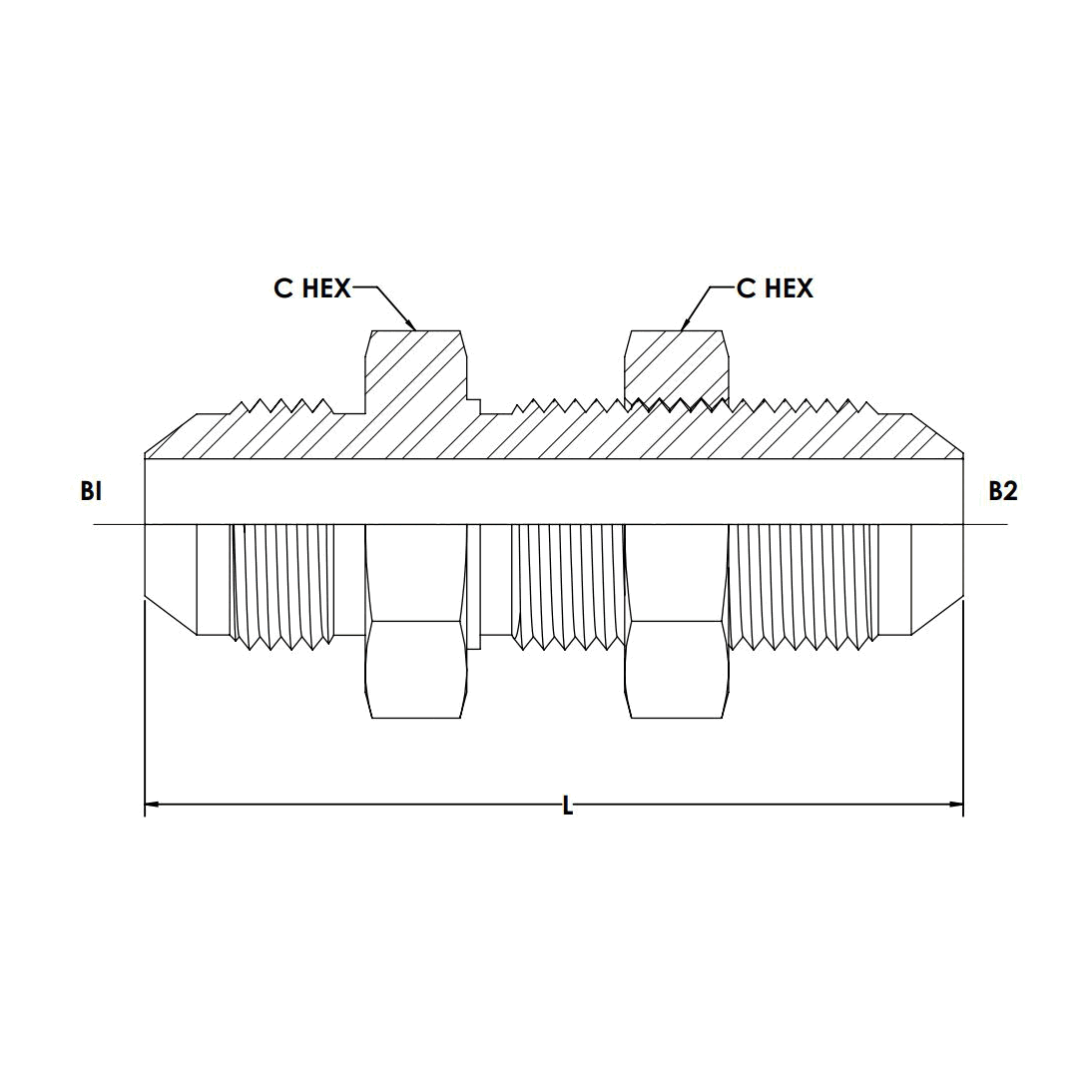

MJ-MJ Bulkhead Straight With Bulkhead LockNut
Description
Variations (50)
2700-LN-02-02
$24.37Attribute: 2700-LN-02-02 (02MJ-02MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 5/16-24 |
| THREAD B1 DRILL IN | 0.062 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-02 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 1.870 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0105 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-02-02-BB
$59.68Attribute: 2700-LN-02-02-BB (02MJ-02MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 5/16-24 |
| THREAD B1 DRILL IN | 0.062 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-02-BB |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 1.870 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0105 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-02-02-SS
$124.19Attribute: 2700-LN-02-02-SS (02MJ-02MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 5/16-24 |
| THREAD B1 DRILL IN | 0.062 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-02-SS |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 1.870 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.05 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-03-03
$13.19Attribute: 2700-LN-03-03 (03MJ-03MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03 |
| BODY HEX IN | 0.625 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 1.900 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0666 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-03-03-BB
$42.05Attribute: 2700-LN-03-03-BB (03MJ-03MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03-BB |
| BODY HEX IN | 0.625 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 1.900 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0666 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-03-03-SS
$143.44Attribute: 2700-LN-03-03-SS (03MJ-03MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03-SS |
| BODY HEX IN | 0.625 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 1.900 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.01 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-04-04
$10.48Attribute: 2700-LN-04-04 (04MJ-04MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04 |
| BODY HEX IN | 0.688 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.070 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-04-04-B
$37.60Attribute: 2700-LN-04-04-B (04MJ-04MJ Blkhd...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-B |
| BODY HEX IN | 0.688 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.070 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-04-04-BB
$36.33Attribute: 2700-LN-04-04-BB (04MJ-04MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-BB |
| BODY HEX IN | 0.688 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.070 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0921 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-04-04-SS
$80.68Attribute: 2700-LN-04-04-SS (04MJ-04MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-SS |
| BODY HEX IN | 0.688 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.070 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-04-06
$12.06Attribute: 2700-LN-04-06 (04MJ-06MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06 |
| BODY HEX IN | 0.812 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-05-05
$16.05Attribute: 2700-LN-05-05 (05MJ-05MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-05 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 2.070 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-05-05-B
$61.59Attribute: 2700-LN-05-05-B (05MJ-05MJ Blkhd...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-05-B |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 2.070 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-05-05-BB
$46.09Attribute: 2700-LN-05-05-BB (05MJ-05MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-05-BB |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 2.070 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-05-05-SS
$259.46Attribute: 2700-LN-05-05-SS (05MJ-05MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-05-SS |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 2.070 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.09 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-06-04
$17.53Attribute: 2700-LN-06-04 (06MJ-04MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04 |
| BODY HEX IN | 0.812 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.100 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1233 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-06-04-BB
$59.34Attribute: 2700-LN-06-04-BB (06MJ-04MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-BB |
| BODY HEX IN | 0.812 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.100 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1233 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-06-04-SS
$144.91Attribute: 2700-LN-06-04-SS (06MJ-04MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-SS |
| BODY HEX IN | 0.812 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 2.100 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-06-06
$10.68Attribute: 2700-LN-06-06 (06MJ-06MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06 |
| BODY HEX IN | 0.812 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.180 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1417 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-06-06-B
$50.49Attribute: 2700-LN-06-06-B (06MJ-06MJ Blkhd...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06-B |
| BODY HEX IN | 0.812 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.180 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-06-06-BB
$33.57Attribute: 2700-LN-06-06-BB (06MJ-06MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06-BB |
| BODY HEX IN | 0.812 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.180 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.032 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-06-06-SS
$112.82Attribute: 2700-LN-06-06-SS (06MJ-06MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06-SS |
| BODY HEX IN | 0.812 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.180 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.13 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-08-08
$13.49Attribute: 2700-LN-08-08 (08MJ-08MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08 |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.246 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-08-08-B
$69.40Attribute: 2700-LN-08-08-B (08MJ-08MJ Blkhd...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-B |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-08-08-BB
$42.53Attribute: 2700-LN-08-08-BB (08MJ-08MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-BB |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.246 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-08-08-SS
$118.48Attribute: 2700-LN-08-08-SS (08MJ-08MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-SS |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.25 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-08-08-ZN
$15.66Attribute: 2700-LN-08-08-ZN (08MJ-08MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-ZN |
| BODY HEX IN | 1.000 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | ZINC NICKEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-10-08
$21.86Attribute: 2700-LN-10-08 (10MJ-08MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-SPL |
| BODY HEX IN | 0.938 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.559 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.56 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-10-10
$20.57Attribute: 2700-LN-10-10 (10MJ-10MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10 |
| BODY HEX IN | 1.125 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 2.740 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3517 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-10-10-BB
$60.60Attribute: 2700-LN-10-10-BB (10MJ-10MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10-BB |
| BODY HEX IN | 1.125 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 2.740 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.56 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-10-10-SS
$354.91Attribute: 2700-LN-10-10-SS (10MJ-10MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10-SS |
| BODY HEX IN | 1.125 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 2.740 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.359 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-12-12
$23.87Attribute: 2700-LN-12-12 (12MJ-12MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12 |
| BODY HEX IN | 1.375 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 3.090 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.593 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-12-12-BB
$91.06Attribute: 2700-LN-12-12-BB (12MJ-12MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12-BB |
| BODY HEX IN | 1.375 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 3.090 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.593 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-12-12-SS
$309.37Attribute: 2700-LN-12-12-SS (12MJ-12MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12-SS |
| BODY HEX IN | 1.375 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 3.090 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.59 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-14-14
$51.83Attribute: 2700-LN-14-14 (14MJ-14MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-3/16-12 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-3/16-12 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-14 |
| BODY HEX IN | 1.500 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 3.120 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.726 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-14-14-BB
$164.78Attribute: 2700-LN-14-14-BB (14MJ-14MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-3/16-12 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-3/16-12 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-14-BB |
| BODY HEX IN | 1.500 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 3.120 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.726 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-14-14-SS
$380.69Attribute: 2700-LN-14-14-SS (14MJ-14MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-3/16-12 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-3/16-12 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-14-SS |
| BODY HEX IN | 1.500 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 3.120 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-16-12
$47.95Attribute: 2700-LN-16-12 (16MJ-12MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 3.140 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.7117 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-16-16
$35.69Attribute: 2700-LN-16-16 (16MJ-16MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.140 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.7799 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-16-16-BB
$133.29Attribute: 2700-LN-16-16-BB (16MJ-16MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16-BB |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.140 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.7799 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-16-16-SS
$371.69Attribute: 2700-LN-16-16-SS (16MJ-16MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16-SS |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.140 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.781 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-20-20
$67.68Attribute: 2700-LN-20-20 (20MJ-20MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 3.310 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.1228 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-20-20-BB
$296.43Attribute: 2700-LN-20-20-BB (20MJ-20MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20-BB |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 3.310 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.1228 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-20-20-SS
$590.94Attribute: 2700-LN-20-20-SS (20MJ-20MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20-SS |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 3.310 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.12 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-24-24
$112.19Attribute: 2700-LN-24-24 (24MJ-24MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24 |
| BODY HEX IN | 2.125 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 3.520 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.4713 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-24-24-BB
$405.20Attribute: 2700-LN-24-24-BB (24MJ-24MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24-BB |
| BODY HEX IN | 2.125 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 3.520 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.4713 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-24-24-SS
$1,404.07Attribute: 2700-LN-24-24-SS (24MJ-24MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24-SS |
| BODY HEX IN | 2.125 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 3.520 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.461 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-32-32
$337.87Attribute: 2700-LN-32-32 (32MJ-32MJ Blkhd S...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-32 |
| BODY HEX IN | 2.750 |
| C HEX 1 IN | 2.750 |
| OVERALL LENGTH L IN | 4.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 3.0567 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-32-32-BB
$982.03Attribute: 2700-LN-32-32-BB (32MJ-32MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-32-BB |
| BODY HEX IN | 2.750 |
| C HEX 1 IN | 2.750 |
| OVERALL LENGTH L IN | 4.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 3.0567 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2700-LN-32-32-SS
$1,476.23Attribute: 2700-LN-32-32-SS (32MJ-32MJ Blkh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-32-SS |
| BODY HEX IN | 2.750 |
| C HEX 1 IN | 2.750 |
| OVERALL LENGTH L IN | 4.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.965 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC |
|---|---|
| Shape | Straight |
PDF Documents
No PDF documents scraped.
