2603-FG

2603-02-02-02-FG

$23.78

Attribute: 2603-02-02-02-FG (02MJ-02MJ-02MJ...)

Stock Status: True

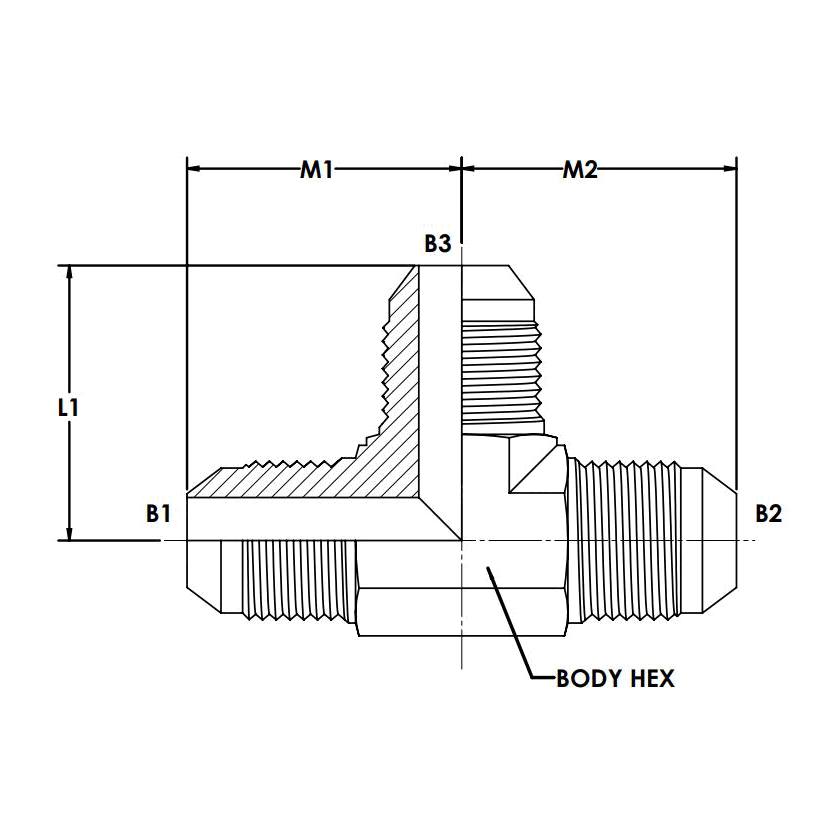

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	5/16-24
THREAD 3 DRILL IN	0.062
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.540
OVERALL LENGTH L2 IN	0.770
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.770
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0577
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.667

2603-02-02-02-SS

$115.53

Attribute: 2603-02-02-02-SS (02MJ-02MJ-02MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	5/16-24
THREAD 3 DRILL IN	0.062
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.540
OVERALL LENGTH L2 IN	0.770
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.770
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.05
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.667

2603-03-03-03-FG

$14.37

Attribute: 2603-03-03-03-FG (03MJ-03MJ-03MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.660
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	0.830
CENTERLINE LENGTH M2 IN	0.830
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.06
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.763

2603-03-03-03-SS

$242.09

Attribute: 2603-03-03-03-SS (03MJ-03MJ-03MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.660
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	0.830
CENTERLINE LENGTH M2 IN	0.830
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0724
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.763

2603-04-04-04-FG

$9.31

Attribute: 2603-04-04-04-FG (04MJ-04MJ-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.890
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.07
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.865

2603-04-04-04-SS

$81.51

Attribute: 2603-04-04-04-SS (04MJ-04MJ-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.890
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.15
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.865

2603-04-04-06-FG

$19.64

Attribute: 2603-04-04-06-FG (04MJ-04MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.100
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.050
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.125
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.583

2603-05-05-05-FG

$20.13

Attribute: 2603-05-05-05-FG (05MJ-05MJ-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.900
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.106
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.314

2603-05-05-05-SS

$337.68

Attribute: 2603-05-05-05-SS (05MJ-05MJ-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.900
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.950
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1125
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.314

2603-06-06-04-FG

$23.63

Attribute: 2603-06-06-04-FG (06MJ-06MJ-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	1.050
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.125
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.586

2603-06-06-06-FG

$10.24

Attribute: 2603-06-06-06-FG (06MJ-06MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.122
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.598

2603-06-06-06-SS

$99.97

Attribute: 2603-06-06-06-SS (06MJ-06MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2812
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.598

2603-06-06-08-FG

$38.30

Attribute: 2603-06-06-08-FG (06MJ-06MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.280
OVERALL LENGTH L2 IN	1.250
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.140
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2312
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.779

2603-06-06-08-SS

$225.99

Attribute: 2603-06-06-08-SS (06MJ-06MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.280
OVERALL LENGTH L2 IN	1.250
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.140
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.25
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.779

2603-08-06-06-FG

$31.55

Attribute: 2603-08-06-06-FG (08MJ-06MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.390
OVERALL LENGTH L2 IN	1.140
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.140
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2375
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.716

2603-08-08-06-FG

$31.89

Attribute: 2603-08-08-06-FG (08MJ-08MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.140
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2437
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.841

2603-08-08-08-FG

$15.80

Attribute: 2603-08-08-08-FG (08MJ-08MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.262
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.047

2603-08-08-08-SS

$152.44

Attribute: 2603-08-08-08-SS (08MJ-08MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5187
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.047

2603-08-08-10-FG

$57.24

Attribute: 2603-08-08-10-FG (08MJ-08MJ-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.660
OVERALL LENGTH L2 IN	1.450
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	1.330
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3625
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.393

2603-08-08-10-SS

$480.33

Attribute: 2603-08-08-10-SS (08MJ-08MJ-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.660
OVERALL LENGTH L2 IN	1.450
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	1.330
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.375
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.393

2603-08-08-12-FG

$63.21

Attribute: 2603-08-08-12-FG (08MJ-08MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.840
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.420
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5437
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.608

2603-10-08-08-FG

$29.53

Attribute: 2603-10-08-08-FG (10MJ-08MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.780
OVERALL LENGTH L2 IN	1.330
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.330
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3687
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.299

2603-10-10-06-SS

$388.21

Attribute: 2603-10-10-06-SS (10MJ-10MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	1.220
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.825
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.206

2603-10-10-08-FG

$34.80

Attribute: 2603-10-10-08-FG (10MJ-10MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	1.330
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3875
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.485

2603-10-10-10-FG

$20.43

Attribute: 2603-10-10-10-FG (10MJ-10MJ-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.79

2603-10-10-10-SS

$384.48

Attribute: 2603-10-10-10-SS (10MJ-10MJ-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.79

2603-10-10-12-FG

$44.21

Attribute: 2603-10-10-12-FG (10MJ-10MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.080
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.540
CENTERLINE LENGTH M2 IN	1.540
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5875
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.167

2603-12-12-06-FG

$62.72

Attribute: 2603-12-12-06-FG (12MJ-12MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.320
OVERALL LENGTH L2 IN	1.310
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5625
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.491

2603-12-12-08-FG

$55.57

Attribute: 2603-12-12-08-FG (12MJ-12MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.320
OVERALL LENGTH L2 IN	1.420
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.61
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.879

2603-12-12-08-SS

$588.33

Attribute: 2603-12-12-08-SS (12MJ-12MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.320
OVERALL LENGTH L2 IN	1.420
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.4187
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.879

2603-12-12-10-FG

$56.26

Attribute: 2603-12-12-10-FG (12MJ-12MJ-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.320
OVERALL LENGTH L2 IN	1.540
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6125
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.302

2603-12-12-12-FG

$32.39

Attribute: 2603-12-12-12-FG (12MJ-12MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.320
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.658
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.725

2603-12-12-12-SS

$324.73

Attribute: 2603-12-12-12-SS (12MJ-12MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.320
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.65
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.725

2603-12-12-16-FG

$68.96

Attribute: 2603-12-12-16-FG (12MJ-12MJ-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.520
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.760
CENTERLINE LENGTH M2 IN	1.760
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.9187
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.389

2603-14-14-14-FG

$71.13

Attribute: 2603-14-14-14-FG (14MJ-14MJ-14MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-3/16-12
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.600
OVERALL LENGTH L2 IN	1.800
CENTERLINE LENGTH M IN	1.800
CENTERLINE LENGTH M2 IN	1.800
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.95
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.6

2603-16-12-12-FG

$90.82

Attribute: 2603-16-12-12-FG (16MJ-12MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.570
OVERALL LENGTH L2 IN	1.760
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.760
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.9
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.316

2603-16-12-12-SS

$697.90

Attribute: 2603-16-12-12-SS (16MJ-12MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.570
OVERALL LENGTH L2 IN	1.760
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.760
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.316

2603-16-16-12-FG

$139.75

Attribute: 2603-16-16-12-FG (16MJ-16MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.620
OVERALL LENGTH L2 IN	1.760
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.9187
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.475

2603-16-16-12-SS

$769.29

Attribute: 2603-16-16-12-SS (16MJ-16MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.620
OVERALL LENGTH L2 IN	1.760
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.475

2603-16-16-16-FG

$51.53

Attribute: 2603-16-16-16-FG (16MJ-16MJ-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.620
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.942
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.712

2603-16-16-16-SS

$470.88

Attribute: 2603-16-16-16-SS (16MJ-16MJ-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.620
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.9682
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.712

2603-20-20-12-FG

$220.96

Attribute: 2603-20-20-12-FG (20MJ-20MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.120
OVERALL LENGTH L2 IN	1.970
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.35
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	18.629

2603-20-20-16-FG

$229.34

Attribute: 2603-20-20-16-FG (20MJ-20MJ-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.120
OVERALL LENGTH L2 IN	2.010
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5588
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	18.897

2603-20-20-16-SS

$1,213.28

Attribute: 2603-20-20-16-SS (20MJ-20MJ-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.120
OVERALL LENGTH L2 IN	2.010
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.35
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	18.897

2603-20-20-20-FG

$126.75

Attribute: 2603-20-20-20-FG (20MJ-20MJ-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.120
OVERALL LENGTH L2 IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.8
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	19.231

2603-20-20-20-SS

$1,094.35

Attribute: 2603-20-20-20-SS (20MJ-20MJ-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.120
OVERALL LENGTH L2 IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.6055
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	19.231

2603-24-24-24-FG

$204.13

Attribute: 2603-24-24-24-FG (24MJ-24MJ-24MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.660
OVERALL LENGTH L2 IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.330
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.2625
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	28.55

2603-24-24-24-SS

$1,330.77

Attribute: 2603-24-24-24-SS (24MJ-24MJ-24MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.660
OVERALL LENGTH L2 IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.330
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.3
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	28.55

2603-32-32-32-FG

$813.72

Attribute: 2603-32-32-32-FG (32MJ-32MJ-32MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	6.120
OVERALL LENGTH L2 IN	3.060
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	5.1
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	65.943

2603-32-32-32-SS

$2,453.23

Attribute: 2603-32-32-32-SS (32MJ-32MJ-32MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	6.120
OVERALL LENGTH L2 IN	3.060
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	5.1901
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	65.943

Description

Description

Variations (50)

2603-02-02-02-FG

2603-02-02-02-SS

2603-03-03-03-FG

2603-03-03-03-SS

2603-04-04-04-FG

2603-04-04-04-SS

2603-04-04-06-FG

2603-05-05-05-FG

2603-05-05-05-SS

2603-06-06-04-FG

2603-06-06-06-FG

2603-06-06-06-SS

2603-06-06-08-FG

2603-06-06-08-SS

2603-08-06-06-FG

2603-08-08-06-FG

2603-08-08-08-FG

2603-08-08-08-SS

2603-08-08-10-FG

2603-08-08-10-SS

2603-08-08-12-FG

2603-10-08-08-FG

2603-10-10-06-SS

2603-10-10-08-FG

2603-10-10-10-FG

2603-10-10-10-SS

2603-10-10-12-FG

2603-12-12-06-FG

2603-12-12-08-FG

2603-12-12-08-SS

2603-12-12-10-FG

2603-12-12-12-FG

2603-12-12-12-SS

2603-12-12-16-FG

2603-14-14-14-FG

2603-16-12-12-FG

2603-16-12-12-SS

2603-16-16-12-FG

2603-16-16-12-SS

2603-16-16-16-FG

2603-16-16-16-SS

2603-20-20-12-FG

2603-20-20-16-FG

2603-20-20-16-SS

2603-20-20-20-FG

2603-20-20-20-SS

2603-24-24-24-FG

2603-24-24-24-SS

2603-32-32-32-FG

2603-32-32-32-SS

General Attributes

PDF Documents
