2501-FG

2501-02-02-FG

$15.90

Attribute: 2501-02-02-FG (02MJ-02MP 90 Elbo...)

Stock Status: True

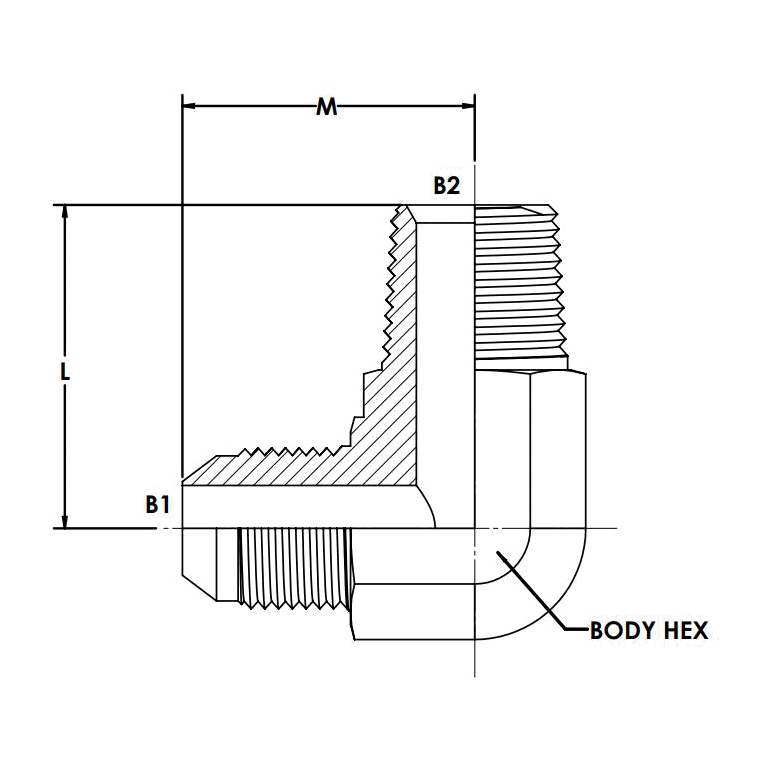

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.720
CENTERLINE LENGTH M IN	0.770
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.042
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.407

2501-02-02-SS

$76.06

Attribute: 2501-02-02-SS (02MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.720
CENTERLINE LENGTH M IN	0.770
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.045
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.407

2501-02-04-FG

$9.31

Attribute: 2501-02-04-FG (02MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	0.930
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.05
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.933

2501-02-04-SS

$41.25

Attribute: 2501-02-04-SS (02MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	0.930
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.933

2501-03-02-FG

$9.45

Attribute: 2501-03-02-FG (03MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.720
CENTERLINE LENGTH M IN	0.830
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.041
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.431

2501-03-02-SS

$73.10

Attribute: 2501-03-02-SS (03MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.720
CENTERLINE LENGTH M IN	0.830
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.05
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.431

2501-03-04-SS

$273.11

Attribute: 2501-03-04-SS (03MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	0.960
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.956

2501-04-01-FG

$11.12

Attribute: 2501-04-01-FG (04MJ-01MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/16-27
THREAD B2 DRILL IN	0.109
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.485

2501-04-02-FG

$6.55

Attribute: 2501-04-02-FG (04MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0479
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.485

2501-04-02-SS

$45.72

Attribute: 2501-04-02-SS (04MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0562
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.485

2501-04-04-FG

$7.09

Attribute: 2501-04-04-FG (04MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.056
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.026

2501-04-04-SS

$56.66

Attribute: 2501-04-04-SS (04MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.050
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1062
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.026

2501-04-06-FG

$10.88

Attribute: 2501-04-06-FG (04MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.120
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.172
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.788

2501-04-06-SS

$240.76

Attribute: 2501-04-06-SS (04MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.120
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.175
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.788

2501-04-08-FG

$13.93

Attribute: 2501-04-08-FG (04MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.210
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.27
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.75

2501-04-08-SS

$197.44

Attribute: 2501-04-08-SS (04MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.210
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2625
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.75

2501-04-12-FG

$44.01

Attribute: 2501-04-12-FG (04MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.350
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4125
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.237

2501-04-12-SS

$377.26

Attribute: 2501-04-12-SS (04MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.300
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4062
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.124

2501-05-02-FG

$8.71

Attribute: 2501-05-02-FG (05MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.072
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.734

2501-05-02-SS

$87.56

Attribute: 2501-05-02-SS (05MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.734

2501-05-04-FG

$9.45

Attribute: 2501-05-04-FG (05MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.096
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.026

2501-05-04-SS

$50.01

Attribute: 2501-05-04-SS (05MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.050
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.026

2501-05-06-FG

$17.77

Attribute: 2501-05-06-FG (05MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.120
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1687
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.788

2501-05-06-SS

$222.35

Attribute: 2501-05-06-SS (05MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.120
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.375
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.788

2501-05-08-FG

$31.70

Attribute: 2501-05-08-FG (05MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.210
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2625
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.75

2501-06-01-FG

$10.73

Attribute: 2501-06-01-FG (06MJ-01MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/16-27
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.900
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.89

2501-06-02-FG

$9.25

Attribute: 2501-06-02-FG (06MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.900
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.084
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.89

2501-06-02-SS

$78.91

Attribute: 2501-06-02-SS (06MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.900
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0961
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.89

2501-06-04-FG

$7.58

Attribute: 2501-06-04-FG (06MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.096
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.033

2501-06-04-SS

$56.66

Attribute: 2501-06-04-SS (06MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.033

2501-06-06-FG

$8.81

Attribute: 2501-06-06-FG (06MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.140
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.174
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.812

2501-06-06-SS

$71.18

Attribute: 2501-06-06-SS (06MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.140
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1812
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.812

2501-06-08-FG

$13.49

Attribute: 2501-06-08-FG (06MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.256
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.766

2501-06-08-SS

$104.06

Attribute: 2501-06-08-SS (06MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2687
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.766

2501-06-12-FG

$30.12

Attribute: 2501-06-12-FG (06MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.310
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3875
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.147

2501-06-12-SS

$270.04

Attribute: 2501-06-12-SS (06MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.310
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.0437
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.147

2501-06-16-FG

$141.08

Attribute: 2501-06-16-FG (06MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.500
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.675
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.428

2501-08-02-FG

$19.10

Attribute: 2501-08-02-FG (08MJ-02MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.712

2501-08-04-FG

$12.50

Attribute: 2501-08-04-FG (08MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.19
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.944

2501-08-04-SS

$91.02

Attribute: 2501-08-04-SS (08MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.207
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.944

2501-08-06-FG

$11.91

Attribute: 2501-08-06-FG (08MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.19
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.944

2501-08-06-SS

$83.09

Attribute: 2501-08-06-SS (08MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.944

2501-08-08-FG

$14.37

Attribute: 2501-08-08-FG (08MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.272
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.95

2501-08-08-SS

$149.40

Attribute: 2501-08-08-SS (08MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.330
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.275
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.95

2501-08-12-FG

$20.33

Attribute: 2501-08-12-FG (08MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.420
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.406
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.395

2501-08-12-SS

$359.73

Attribute: 2501-08-12-SS (08MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.420
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4066
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.395

2501-08-16-FG

$49.32

Attribute: 2501-08-16-FG (08MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.520
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6937
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.497

2501-08-16-SS

$563.08

Attribute: 2501-08-16-SS (08MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.520
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.6781
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.497

2501-10-04-FG

$27.66

Attribute: 2501-10-04-FG (10MJ-04MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.280
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.281
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.837

2501-10-06-FG

$16.83

Attribute: 2501-10-06-FG (10MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.280
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.27
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.837

2501-10-06-SS

$225.55

Attribute: 2501-10-06-SS (10MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.280
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5875
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.837

2501-10-08-FG

$13.43

Attribute: 2501-10-08-FG (10MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.286
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.15

2501-10-08-SS

$113.22

Attribute: 2501-10-08-SS (10MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2875
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.15

2501-10-12-FG

$23.48

Attribute: 2501-10-12-FG (10MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.438
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.665

2501-10-12-SS

$327.98

Attribute: 2501-10-12-SS (10MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4471
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.665

2501-10-16-FG

$47.25

Attribute: 2501-10-16-FG (10MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.640
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.262
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.91

2501-10-16-SS

$193.90

Attribute: 2501-10-16-SS (10MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.640
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.6937
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.91

2501-12-06-FG

$30.22

Attribute: 2501-12-06-FG (12MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.400
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6875
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.493

2501-12-06-SS

$341.71

Attribute: 2501-12-06-SS (12MJ-06MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.400
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.0437
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.493

2501-12-08-FG

$21.21

Attribute: 2501-12-08-FG (12MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.46
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.935

2501-12-08-SS

$283.04

Attribute: 2501-12-08-SS (12MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4962
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.935

2501-12-12-FG

$20.13

Attribute: 2501-12-12-FG (12MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.452
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.935

2501-12-12-SS

$190.99

Attribute: 2501-12-12-SS (12MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4687
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.935

2501-12-16-FG

$31.26

Attribute: 2501-12-16-FG (12MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.760
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.324

2501-12-16-SS

$555.20

Attribute: 2501-12-16-SS (12MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.760
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.771
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.324

2501-12-20-FG

$93.67

Attribute: 2501-12-20-FG (12MJ-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.2937
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.435

2501-14-08-FG

$44.55

Attribute: 2501-14-08-FG (14MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.690
CENTERLINE LENGTH M IN	1.800
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.75
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.559

2501-14-12-FG

$51.09

Attribute: 2501-14-12-FG (14MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.690
CENTERLINE LENGTH M IN	1.800
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6875
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.559

2501-14-12-SS

$320.12

Attribute: 2501-14-12-SS (14MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.690
CENTERLINE LENGTH M IN	1.800
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.559

2501-14-16-FG

$59.11

Attribute: 2501-14-16-FG (14MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.800
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7167
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.462

2501-16-08-FG

$53.80

Attribute: 2501-16-08-FG (16MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.68
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.881

2501-16-08-SS

$384.30

Attribute: 2501-16-08-SS (16MJ-08MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.8062
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.881

2501-16-12-FG

$33.82

Attribute: 2501-16-12-FG (16MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.712
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.881

2501-16-12-SS

$385.62

Attribute: 2501-16-12-SS (16MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7692
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.881

2501-16-16-FG

$36.13

Attribute: 2501-16-16-FG (16MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.728
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.496

2501-16-16-SS

$308.88

Attribute: 2501-16-16-SS (16MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7281
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.496

2501-16-20-FG

$72.95

Attribute: 2501-16-20-FG (16MJ-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.010
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.2875
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.643

2501-16-20-SS

$843.51

Attribute: 2501-16-20-SS (16MJ-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.010
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.1498
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.643

2501-16-24-FG

$148.60

Attribute: 2501-16-24-FG (16MJ-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.160
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.75
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	20.777

2501-16-24-SS

$1,239.21

Attribute: 2501-16-24-SS (16MJ-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.160
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.2167
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	20.777

2501-20-12-FG

$97.91

Attribute: 2501-20-12-FG (20MJ-12MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.160
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.3062
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	13.875

2501-20-16-FG

$100.67

Attribute: 2501-20-16-FG (20MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.350
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.3437
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.762

2501-20-16-SS

$701.64

Attribute: 2501-20-16-SS (20MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.350
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.9312
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.762

2501-20-20-FG

$64.14

Attribute: 2501-20-20-FG (20MJ-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.234
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.902

2501-20-20-SS

$556.28

Attribute: 2501-20-20-SS (20MJ-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.2503
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.902

2501-20-24-FG

$104.21

Attribute: 2501-20-24-FG (20MJ-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.200
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.6875
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.046

2501-20-24-SS

$1,106.71

Attribute: 2501-20-24-SS (20MJ-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.200
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.0179
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.046

2501-20-32-FG

$336.45

Attribute: 2501-20-32-FG (20MJ-32MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	2.940
CENTERLINE LENGTH M IN	2.680
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.7937
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	41.167

2501-24-16-FG

$126.95

Attribute: 2501-24-16-FG (24MJ-16MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.580
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.75
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.55

2501-24-20-FG

$133.99

Attribute: 2501-24-20-FG (24MJ-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.610
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.8375
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.734

2501-24-20-SS

$827.85

Attribute: 2501-24-20-SS (24MJ-20MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.610
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.625
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.734

2501-24-24-FG

$106.42

Attribute: 2501-24-24-FG (24MJ-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.7
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.918

2501-24-24-SS

$733.39

Attribute: 2501-24-24-SS (24MJ-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.6915
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.918

2501-24-32-FG

$478.41

Attribute: 2501-24-32-FG (24MJ-32MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.000
CENTERLINE LENGTH M IN	2.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.5719
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	43.138

2501-24-32-SS

$2,182.69

Attribute: 2501-24-32-SS (24MJ-32MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.000
CENTERLINE LENGTH M IN	2.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	9.3
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	43.138

2501-32-24-FG

$290.13

Attribute: 2501-32-24-FG (32MJ-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	2.970
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	5
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	45.471

2501-32-24-SS

$2,150.76

Attribute: 2501-32-24-SS (32MJ-24MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	2.970
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.686
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	45.471

2501-32-32-FG

$242.68

Attribute: 2501-32-32-FG (32MJ-32MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.000
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.8812
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	45.794

2501-32-32-SS

$1,404.12

Attribute: 2501-32-32-SS (32MJ-32MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.000
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.7073
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	45.794

2501-40-40-FG

$1,304.78

Attribute: 2501-40-40-FG (40MJ-40MP 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3-12
THREAD B1 DRILL IN	2.318
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-1/2-8
THREAD B2 DRILL IN	2.318
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	3.234
OVERALL LENGTH L IN	3.950
CENTERLINE LENGTH M IN	3.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	7.7
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	87.624

Description

Description

Variations (100)

2501-02-02-FG

2501-02-02-SS

2501-02-04-FG

2501-02-04-SS

2501-03-02-FG

2501-03-02-SS

2501-03-04-SS

2501-04-01-FG

2501-04-02-FG

2501-04-02-SS

2501-04-04-FG

2501-04-04-SS

2501-04-06-FG

2501-04-06-SS

2501-04-08-FG

2501-04-08-SS

2501-04-12-FG

2501-04-12-SS

2501-05-02-FG

2501-05-02-SS

2501-05-04-FG

2501-05-04-SS

2501-05-06-FG

2501-05-06-SS

2501-05-08-FG

2501-06-01-FG

2501-06-02-FG

2501-06-02-SS

2501-06-04-FG

2501-06-04-SS

2501-06-06-FG

2501-06-06-SS

2501-06-08-FG

2501-06-08-SS

2501-06-12-FG

2501-06-12-SS

2501-06-16-FG

2501-08-02-FG

2501-08-04-FG

2501-08-04-SS

2501-08-06-FG

2501-08-06-SS

2501-08-08-FG

2501-08-08-SS

2501-08-12-FG

2501-08-12-SS

2501-08-16-FG

2501-08-16-SS

2501-10-04-FG

2501-10-06-FG

2501-10-06-SS

2501-10-08-FG

2501-10-08-SS

2501-10-12-FG

2501-10-12-SS

2501-10-16-FG

2501-10-16-SS

2501-12-06-FG

2501-12-06-SS

2501-12-08-FG

2501-12-08-SS

2501-12-12-FG

2501-12-12-SS

2501-12-16-FG

2501-12-16-SS

2501-12-20-FG

2501-14-08-FG

2501-14-12-FG

2501-14-12-SS

2501-14-16-FG

2501-16-08-FG

2501-16-08-SS

2501-16-12-FG

2501-16-12-SS

2501-16-16-FG

2501-16-16-SS
