2500-FG

2500-02-02-FG

$27.17

Attribute: 2500-02-02-FG (02MJ-02MJ 90 Elbo...)

Stock Status: True

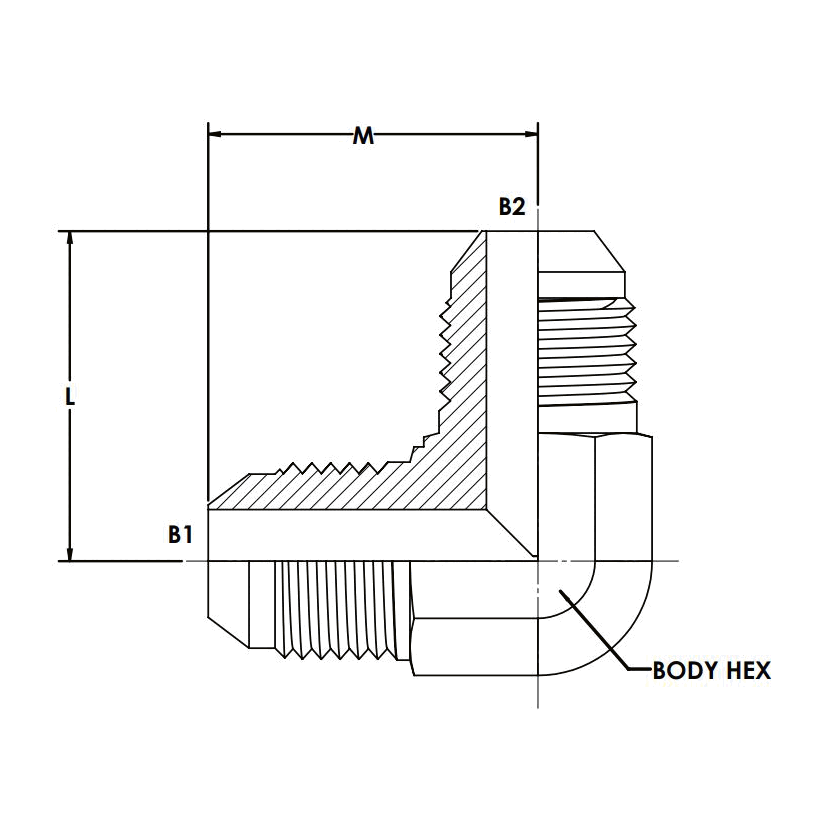

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.770
CENTERLINE LENGTH M IN	0.770
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0437
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.095

2500-02-02-SS

$81.22

Attribute: 2500-02-02-SS (02MJ-02MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.770
CENTERLINE LENGTH M IN	0.770
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0187
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.095

2500-03-03-FG

$18.02

Attribute: 2500-03-03-FG (03MJ-03MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.830
CENTERLINE LENGTH M IN	0.830
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.05
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.101

2500-03-03-SS

$174.64

Attribute: 2500-03-03-SS (03MJ-03MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.830
CENTERLINE LENGTH M IN	0.830
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1875
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.101

2500-04-04-FG

$6.99

Attribute: 2500-04-04-FG (04MJ-04MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.890
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.056
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.106

2500-04-04-SS

$49.96

Attribute: 2500-04-04-SS (04MJ-04MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.890
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0562
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.106

2500-05-04-FG

$11.62

Attribute: 2500-05-04-FG (05MJ-04MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.950
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.194

2500-05-05-FG

$13.88

Attribute: 2500-05-05-FG (05MJ-05MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.950
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.194

2500-05-05-SS

$140.29

Attribute: 2500-05-05-SS (05MJ-05MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.950
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.194

2500-06-04-FG

$12.60

Attribute: 2500-06-04-FG (06MJ-04MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.050
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.212

2500-06-05-FG

$11.56

Attribute: 2500-06-05-FG (06MJ-05MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.050
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.212

2500-06-06-FG

$7.98

Attribute: 2500-06-06-FG (06MJ-06MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.212

2500-06-06-SS

$65.52

Attribute: 2500-06-06-SS (06MJ-06MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.212

2500-08-04-FG

$30.56

Attribute: 2500-08-04-FG (08MJ-04MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.120
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.457

2500-08-06-FG

$20.23

Attribute: 2500-08-06-FG (08MJ-06MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.140
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.188
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.457

2500-08-06-SS

$291.51

Attribute: 2500-08-06-SS (08MJ-06MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.140
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.375
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.457

2500-08-08-FG

$12.60

Attribute: 2500-08-08-FG (08MJ-08MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.457

2500-08-08-SS

$155.25

Attribute: 2500-08-08-SS (08MJ-08MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2125
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.457

2500-10-08-FG

$39.43

Attribute: 2500-10-08-FG (10MJ-08MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.330
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.25
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.723

2500-10-10-FG

$17.03

Attribute: 2500-10-10-FG (10MJ-10MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3125
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.723

2500-10-10-SS

$159.84

Attribute: 2500-10-10-SS (10MJ-10MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5875
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.723

2500-12-08-FG

$32.73

Attribute: 2500-12-08-FG (12MJ-08MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4562
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.236

2500-12-08-SS

$514.66

Attribute: 2500-12-08-SS (12MJ-08MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.0437
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.236

2500-12-10-FG

$41.10

Attribute: 2500-12-10-FG (12MJ-10MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.540
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4687
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.236

2500-12-10-SS

$539.92

Attribute: 2500-12-10-SS (12MJ-10MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.540
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.52
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.236

2500-12-12-FG

$24.27

Attribute: 2500-12-12-FG (12MJ-12MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.494
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.236

2500-12-12-SS

$253.85

Attribute: 2500-12-12-SS (12MJ-12MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5125
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.236

2500-14-14-FG

$69.70

Attribute: 2500-14-14-FG (14MJ-14MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.800
CENTERLINE LENGTH M IN	1.800
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7687
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.114

2500-16-12-FG

$61.14

Attribute: 2500-16-12-FG (16MJ-12MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.760
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7437
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.122

2500-16-16-FG

$39.03

Attribute: 2500-16-16-FG (16MJ-16MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.742
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.122

2500-16-16-SS

$360.71

Attribute: 2500-16-16-SS (16MJ-16MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8496
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.122

2500-20-20-FG

$79.74

Attribute: 2500-20-20-FG (20MJ-20MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.060
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.3063
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.793

2500-20-20-SS

$669.05

Attribute: 2500-20-20-SS (20MJ-20MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.060
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.9312
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.793

2500-24-24-FG

$123.99

Attribute: 2500-24-24-FG (24MJ-24MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.330
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.7062
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.744

2500-24-24-SS

$1,172.38

Attribute: 2500-24-24-SS (24MJ-24MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.330
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.1404
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.744

2500-32-32-FG

$320.60

Attribute: 2500-32-32-FG (32MJ-32MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.060
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.4102
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	13.469

2500-32-32-SS

$1,927.77

Attribute: 2500-32-32-SS (32MJ-32MJ 90 Elbo...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	3.060
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	13.469

Connections	JIC
Shape	Elbow

ID	10143128
Category	Tube Fittings and Adapters

Description

Description

Variations (37)

2500-02-02-FG

2500-02-02-SS

2500-03-03-FG

2500-03-03-SS

2500-04-04-FG

2500-04-04-SS

2500-05-04-FG

2500-05-05-FG

2500-05-05-SS

2500-06-04-FG

2500-06-05-FG

2500-06-06-FG

2500-06-06-SS

2500-08-04-FG

2500-08-06-FG

2500-08-06-SS

2500-08-08-FG

2500-08-08-SS

2500-10-08-FG

2500-10-10-FG

2500-10-10-SS

2500-12-08-FG

2500-12-08-SS

2500-12-10-FG

2500-12-10-SS

2500-12-12-FG

2500-12-12-SS

2500-14-14-FG

2500-16-12-FG

2500-16-16-FG

2500-16-16-SS

2500-20-20-FG

2500-20-20-SS

2500-24-24-FG

2500-24-24-SS

2500-32-32-FG

2500-32-32-SS

General Attributes

PDF Documents
