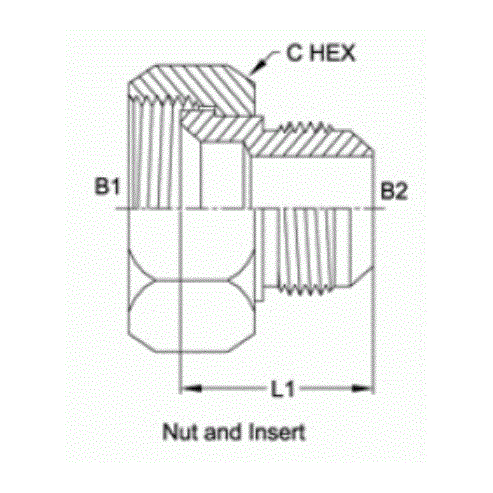

2406-2PC

2406-06-04-2PC

$14.23

Attribute: 2406-06-04-2PC (06FJ-04MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.403
OVERALL LENGTH L2 IN	0.970
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.065
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-08-04-2PC

$18.26

Attribute: 2406-08-04-2PC (08FJ-04MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.503
OVERALL LENGTH L2 IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1038
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-08-06-2PC

$29.06

Attribute: 2406-08-06-2PC (08FJ-06MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.503
OVERALL LENGTH L2 IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0675
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-10-06-2PC

$24.88

Attribute: 2406-10-06-2PC (10FJ-06MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.617
OVERALL LENGTH L2 IN	1.030
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2315
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-12-04-2PC

$32.35

Attribute: 2406-12-04-2PC (12FJ-04MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.688
OVERALL LENGTH L2 IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4142
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-12-06-2PC

$33.42

Attribute: 2406-12-06-2PC (12FJ-06MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.687
OVERALL LENGTH L2 IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4204
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-12-08-2PC

$24.07

Attribute: 2406-12-08-2PC (12FJ-08MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.787
OVERALL LENGTH L2 IN	1.190
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4267
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-16-06-2PC

$33.67

Attribute: 2406-16-06-2PC (16FJ-06MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
OVERALL LENGTH L2 IN	1.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2627
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-16-08-2PC

$34.02

Attribute: 2406-16-08-2PC (16FJ-08MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
OVERALL LENGTH L IN	1.952
OVERALL LENGTH L2 IN	1.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5987
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-16-10-2PC

$296.52

Attribute: 2406-16-10-2PC (16FJ-10MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
OVERALL LENGTH L IN	2.062
OVERALL LENGTH L2 IN	1.380
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.23
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-16-12-2PC

$32.19

Attribute: 2406-16-12-2PC (16FJ-12MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
OVERALL LENGTH L2 IN	1.470
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3987
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-20-12-2PC

$182.03

Attribute: 2406-20-12-2PC (20FJ-12MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.237
OVERALL LENGTH L2 IN	1.530
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-20-16-2PC

$96.87

Attribute: 2406-20-16-2PC (20FJ-16MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.302
OVERALL LENGTH L2 IN	1.590
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.3625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2406-24-20-2PC

$339.18

Attribute: 2406-24-20-2PC (24FJ-20MJ Str Re...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.250
OVERALL LENGTH L2 IN	1.690
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.7143
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Straight

ID	10143111
Category	Tube Fittings and Adapters

Description

Description

Variations (14)

2406-06-04-2PC

2406-08-04-2PC

2406-08-06-2PC

2406-10-06-2PC

2406-12-04-2PC

2406-12-06-2PC

2406-12-08-2PC

2406-16-06-2PC

2406-16-08-2PC

2406-16-10-2PC

2406-16-12-2PC

2406-20-12-2PC

2406-20-16-2PC

2406-24-20-2PC

General Attributes

PDF Documents
