Attributes
| Part Number | 1928-61-12-12 |
|---|---|
| Is Series Page | 0 |
Description

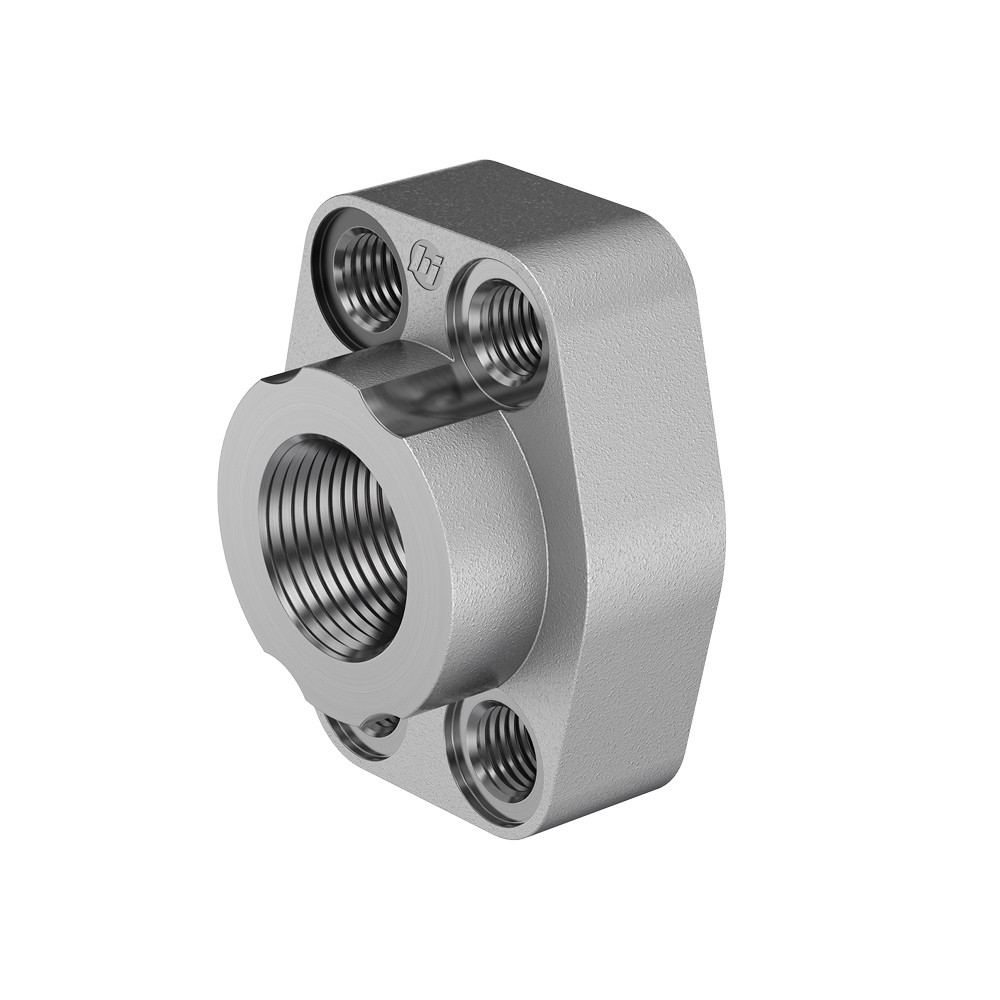

Steel, NPTF 4-Bolt Flange Code 61 Flat Face, 3/4" Female NPTF x 3/4" Pad Size
Specifications
| Connection Details | {"Connection End Type":"Female NPTF","Connection End Pipe Size":"3/4\"","Connection End Thread":"3/4-14 NPTF","Connection End Standard":"SAE J476 - ANSI B1.20.3","Connection End Role":"Pipe Connection","Flange Interface Sealing Type":"Flat Face","Flange Interface Code":"Code 61","Flange Interface Pad Size":"3/4\""} |
|---|---|
| Body & Materials | {"Primary Material":"Steel","Material Grade":"C1020","Weight":"0.9973 lb"} |
| Performance Specifications | {"Working Pressure":"4500 psi","Temperature Range":"-65°F to 500°F","Burst Pressure":"18000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"12GQ1PSX"} |
| Series Configuration | Female Pipe x Flat Face Code 61 Flange |
| Technical Series Configuration | SAE J476 Female NPTF x SAE J518 Code 61 Flat Face Flange |
| Side 1 Connection Type | Female NPTF |
