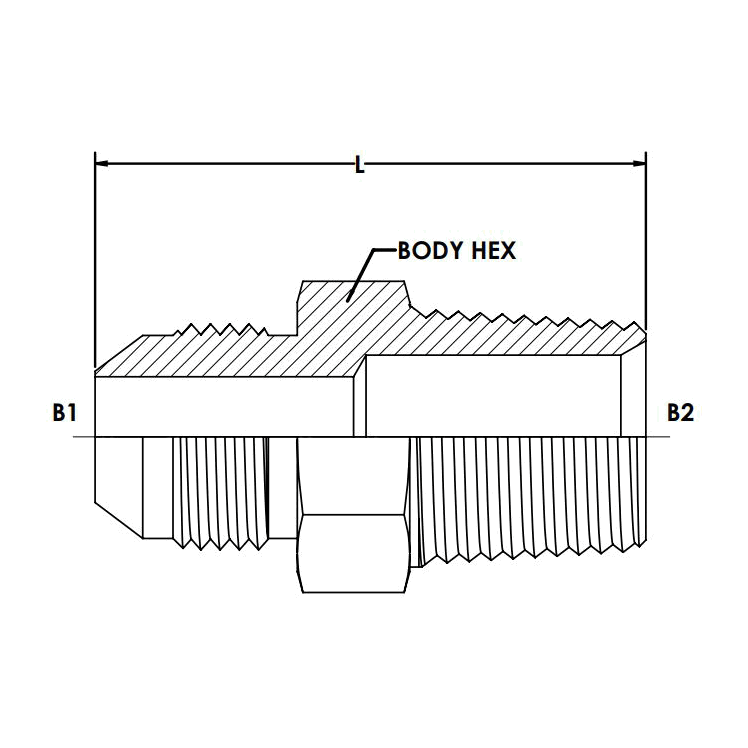

2404-B

2404-02-02-B

$7.18

Attribute: 2404-02-02-B (02MJ-02MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.110
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0312
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.213

2404-03-02-B

$8.41

Attribute: 2404-03-02-B (03MJ-02MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.140
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0312
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.219

2404-04-02-B

$7.34

Attribute: 2404-04-02-B (04MJ-02MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.500
OVERALL LENGTH L IN	1.220
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0375
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.305

2404-04-04-B

$8.41

Attribute: 2404-04-04-B (04MJ-04MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.448

2404-04-06-B

$22.78

Attribute: 2404-04-06-B (04MJ-06MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.799

2404-04-08-B

$42.19

Attribute: 2404-04-08-B (04MJ-08MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.680
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.286

2404-05-02-B

$12.52

Attribute: 2404-05-02-B (05MJ-02MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.220
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.385

2404-05-04-B

$10.46

Attribute: 2404-05-04-B (05MJ-04MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.448

2404-06-02-B

$13.21

Attribute: 2404-06-02-B (06MJ-02MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.240
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.484

2404-06-04-B

$11.11

Attribute: 2404-06-04-B (06MJ-04MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.430
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.559

2404-06-06-B

$15.92

Attribute: 2404-06-06-B (06MJ-06MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.430
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.804

2404-06-08-B

$21.13

Attribute: 2404-06-08-B (06MJ-08MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.690
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.294

2404-08-04-B

$21.99

Attribute: 2404-08-04-B (08MJ-04MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
OVERALL LENGTH L IN	1.530
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.112
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.009

2404-08-06-B

$19.24

Attribute: 2404-08-06-B (08MJ-06MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
OVERALL LENGTH L IN	1.530
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.009

2404-08-08-B

$22.07

Attribute: 2404-08-08-B (08MJ-08MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.790
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.37

2404-08-12-B

$33.40

Attribute: 2404-08-12-B (08MJ-12MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.850
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.2312
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.341

2404-10-04-B

$30.15

Attribute: 2404-10-04-B (10MJ-04MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.690
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.484

2404-10-06-B

$21.13

Attribute: 2404-10-06-B (10MJ-06MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.700
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.493

2404-10-08-B

$21.54

Attribute: 2404-10-08-B (10MJ-08MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.890
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1937
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.659

2404-10-12-B

$42.88

Attribute: 2404-10-12-B (10MJ-12MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.950
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.3125
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.468

2404-12-08-B

$35.87

Attribute: 2404-12-08-B (12MJ-08MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	2.060
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.281
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.607

2404-12-12-B

$40.86

Attribute: 2404-12-12-B (12MJ-12MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	2.060
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.607

2404-12-16-B

$73.82

Attribute: 2404-12-16-B (12MJ-16MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	2.250
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.3875
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.254

2404-14-20-B

$89.65

Attribute: 2404-14-20-B (14MJ-20MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.687
OVERALL LENGTH L IN	2.380
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.6187
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.773

2404-16-12-B

$81.86

Attribute: 2404-16-12-B (16MJ-12MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	2.110
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.3937
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.989

2404-16-16-B

$73.04

Attribute: 2404-16-16-B (16MJ-16MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	2.300
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.4875
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.348

2404-16-20-B

$54.62

Attribute: 2404-16-20-B (16MJ-20MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.688
OVERALL LENGTH L IN	2.400
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.65
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.838

2404-16-24-B

$160.03

Attribute: 2404-16-24-B (16MJ-24MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.510
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.9
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.04

2404-20-20-B

$105.29

Attribute: 2404-20-20-B (20MJ-20MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.688
OVERALL LENGTH L IN	2.450
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.6875
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.981

2404-24-24-B

$188.72

Attribute: 2404-24-24-B (24MJ-24MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.680
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.9375
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.72

2404-32-24-B

$507.19

Attribute: 2404-32-24-B (32MJ-24MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.625
OVERALL LENGTH L IN	3.080
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	1.8937
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.223

2404-32-32-B

$627.05

Attribute: 2404-32-32-B (32MJ-32MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.625
OVERALL LENGTH L IN	3.110
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	2.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.43

2404-40-40-B

$2,193.52

Attribute: 2404-40-40-B (40MJ-40MP Straight...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3-12
THREAD B1 DRILL IN	2.318
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-1/2-8
THREAD B2 DRILL IN	2.318
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	3.250
OVERALL LENGTH L IN	3.370
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	35.596

Connections	NPT, JIC
Shape	Straight

ID	10142911
Category	Tube Fittings and Adapters

Description

Description

Variations (33)

2404-02-02-B

2404-03-02-B

2404-04-02-B

2404-04-04-B

2404-04-06-B

2404-04-08-B

2404-05-02-B

2404-05-04-B

2404-06-02-B

2404-06-04-B

2404-06-06-B

2404-06-08-B

2404-08-04-B

2404-08-06-B

2404-08-08-B

2404-08-12-B

2404-10-04-B

2404-10-06-B

2404-10-08-B

2404-10-12-B

2404-12-08-B

2404-12-12-B

2404-12-16-B

2404-14-20-B

2404-16-12-B

2404-16-16-B

2404-16-20-B

2404-16-24-B

2404-20-20-B

2404-24-24-B

2404-32-24-B

2404-32-32-B

2404-40-40-B

General Attributes

PDF Documents
