Description

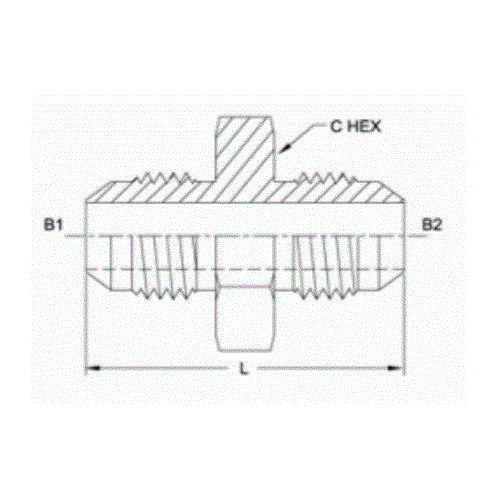

MJ-MJ STRAIGHT WITH LARGE HEX
Description
Variations (74)
2403-LH-02-02
$4.92Attribute: 2403-LH-02-02 (02MJ-02MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 5/16-24 |
| THREAD B1 DRILL IN | 0.062 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 1.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0375 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.37 |
2403-LH-02-02-SS
$183.06Attribute: 2403-LH-02-02-SS (02MJ-02MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 5/16-24 |
| THREAD B1 DRILL IN | 0.062 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 1.170 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.37 |
2403-LH-03-02
$6.01Attribute: 2403-LH-03-02 (03MJ-02MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| OVERALL LENGTH L IN | 1.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0437 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.469 |
2403-LH-03-02-SS
$167.60Attribute: 2403-LH-03-02-SS (03MJ-02MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| OVERALL LENGTH L IN | 1.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.469 |
2403-LH-03-03
$10.39Attribute: 2403-LH-03-03 (03MJ-03MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| OVERALL LENGTH L IN | 1.230 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.05 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.48 |
2403-LH-03-03-SS
$174.70Attribute: 2403-LH-03-03-SS (03MJ-03MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| OVERALL LENGTH L IN | 1.230 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.05 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.48 |
2403-LH-04-02
$11.08Attribute: 2403-LH-04-02 (04MJ-02MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 1.270 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0562 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.601 |
2403-LH-04-02-SS
$222.45Attribute: 2403-LH-04-02-SS (04MJ-02MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL IN | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 1.270 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0531 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.601 |
2403-LH-04-03
$11.38Attribute: 2403-LH-04-03 (04MJ-03MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 1.300 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0562 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.615 |
2403-LH-04-03-SS
$223.72Attribute: 2403-LH-04-03-SS (04MJ-03MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 1.300 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.06 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.615 |
2403-LH-04-04
$9.15Attribute: 2403-LH-04-04 (04MJ-04MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 1.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.055 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.648 |
2403-LH-04-04-SS
$51.39Attribute: 2403-LH-04-04-SS (04MJ-04MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| OVERALL LENGTH L IN | 1.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.06 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.648 |
2403-LH-05-04
$15.02Attribute: 2403-LH-05-04 (05MJ-04MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 1.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.771 |
2403-LH-05-04-SS
$184.39Attribute: 2403-LH-05-04-SS (05MJ-04MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 1.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.1 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.771 |
2403-LH-05-05
$15.22Attribute: 2403-LH-05-05 (05MJ-05MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 1.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.06 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.771 |
2403-LH-05-05-SS
$147.43Attribute: 2403-LH-05-05-SS (05MJ-05MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 1.370 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.771 |
2403-LH-06-04
$18.41Attribute: 2403-LH-06-04 (06MJ-04MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 1.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0875 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.923 |
2403-LH-06-04-SS
$223.12Attribute: 2403-LH-06-04-SS (06MJ-04MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 1.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.08 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.923 |
2403-LH-06-05
$17.27Attribute: 2403-LH-06-05 (06MJ-05MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 1.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0875 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.923 |
2403-LH-06-05-SS
$64.68Attribute: 2403-LH-06-05-SS (06MJ-05MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 1.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3312 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.923 |
2403-LH-06-06
$7.44Attribute: 2403-LH-06-06 (06MJ-06MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 1.410 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0788 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.93 |
2403-LH-06-06-B
$21.09Attribute: 2403-LH-06-06-B (06MJ-06MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 1.410 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | STRAIGHT BRASS |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.93 |
2403-LH-06-06-SS
$68.62Attribute: 2403-LH-06-06-SS (06MJ-06MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 1.410 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.08 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.93 |
2403-LH-08-04
$16.00Attribute: 2403-LH-08-04 (08MJ-04MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| OVERALL LENGTH L IN | 1.510 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.51 |
2403-LH-08-04-SS
$173.17Attribute: 2403-LH-08-04-SS (08MJ-04MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| OVERALL LENGTH L IN | 1.510 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.12 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.51 |
2403-LH-08-06
$16.44Attribute: 2403-LH-08-06 (08MJ-06MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| OVERALL LENGTH L IN | 1.520 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.14 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.52 |
2403-LH-08-06-SS
$316.32Attribute: 2403-LH-08-06-SS (08MJ-06MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| OVERALL LENGTH L IN | 1.520 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.135 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.52 |
2403-LH-08-08
$11.96Attribute: 2403-LH-08-08 (08MJ-08MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| OVERALL LENGTH L IN | 1.620 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1533 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.62 |
2403-LH-08-08-SS
$93.97Attribute: 2403-LH-08-08-SS (08MJ-08MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.000 |
| OVERALL LENGTH L IN | 1.620 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.15 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.62 |
2403-LH-10-04
$25.05Attribute: 2403-LH-10-04 (10MJ-04MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.670 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.175 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.114 |
2403-LH-10-04-SS
$408.71Attribute: 2403-LH-10-04-SS (10MJ-04MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.670 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.1875 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.114 |
2403-LH-10-06
$27.66Attribute: 2403-LH-10-06 (10MJ-06MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.680 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.126 |
2403-LH-10-06-SS
$319.56Attribute: 2403-LH-10-06-SS (10MJ-06MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.680 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.1875 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.126 |
2403-LH-10-08
$23.38Attribute: 2403-LH-10-08 (10MJ-08MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.780 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.224 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.253 |
2403-LH-10-08-SS
$558.84Attribute: 2403-LH-10-08-SS (10MJ-08MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.780 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.2062 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.253 |
2403-LH-10-10
$15.06Attribute: 2403-LH-10-10 (10MJ-10MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.880 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.22 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.379 |
2403-LH-10-10-SS
$293.28Attribute: 2403-LH-10-10-SS (10MJ-10MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.880 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.22 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.379 |
2403-LH-12-04
$33.32Attribute: 2403-LH-12-04 (12MJ-04MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.850 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3062 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.498 |
2403-LH-12-04-SS
$393.69Attribute: 2403-LH-12-04-SS (12MJ-04MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.850 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3187 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.498 |
2403-LH-12-05
$107.65Attribute: 2403-LH-12-05 (12MJ-05MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.850 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.498 |
2403-LH-12-06
$19.34Attribute: 2403-LH-12-06 (12MJ-06MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.850 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2937 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.498 |
2403-LH-12-06-SS
$323.64Attribute: 2403-LH-12-06-SS (12MJ-06MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.850 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.498 |
2403-LH-12-08
$22.40Attribute: 2403-LH-12-08 (12MJ-08MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.950 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.224 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.687 |
2403-LH-12-08-SS
$315.82Attribute: 2403-LH-12-08-SS (12MJ-08MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.950 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.687 |
2403-LH-12-10
$25.21Attribute: 2403-LH-12-10 (12MJ-10MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 2.050 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.38 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.876 |
2403-LH-12-10-SS
$265.56Attribute: 2403-LH-12-10-SS (12MJ-10MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 2.050 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.375 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.876 |
2403-LH-12-12
$26.34Attribute: 2403-LH-12-12 (12MJ-12MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 2.160 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3733 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.084 |
2403-LH-12-12-SS
$330.98Attribute: 2403-LH-12-12-SS (12MJ-12MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 2.160 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.36 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.084 |
2403-LH-14-14
$83.01Attribute: 2403-LH-14-14 (14MJ-14MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-3/16-12 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-3/16-12 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.500 |
| OVERALL LENGTH L IN | 2.210 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.973 |
2403-LH-16-04
$49.32Attribute: 2403-LH-16-04 (16MJ-04MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 1.890 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.4062 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.991 |
2403-LH-16-08
$50.16Attribute: 2403-LH-16-08 (16MJ-08MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.000 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.42 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.281 |
2403-LH-16-08-SS
$363.27Attribute: 2403-LH-16-08-SS (16MJ-08MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.000 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.4625 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.281 |
2403-LH-16-10
$51.15Attribute: 2403-LH-16-10 (16MJ-10MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.100 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.45 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.545 |
2403-LH-16-10-SS
$442.04Attribute: 2403-LH-16-10-SS (16MJ-10MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.100 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.4687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.545 |
2403-LH-16-12
$49.32Attribute: 2403-LH-16-12 (16MJ-12MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.4812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.809 |
2403-LH-16-12-SS
$491.70Attribute: 2403-LH-16-12-SS (16MJ-12MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.200 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.4875 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.809 |
2403-LH-16-16
$41.84Attribute: 2403-LH-16-16 (16MJ-16MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.250 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.52 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.941 |
2403-LH-16-16-SS
$307.60Attribute: 2403-LH-16-16-SS (16MJ-16MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 2.250 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.5 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.941 |
2403-LH-20-04
$94.12Attribute: 2403-LH-20-04 (20MJ-04MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 2.020 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.102 |
2403-LH-20-10
$56.26Attribute: 2403-LH-20-10 (20MJ-10MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 2.230 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.84 |
2403-LH-20-12
$76.00Attribute: 2403-LH-20-12 (20MJ-12MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 2.340 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.675 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 8.227 |
2403-LH-20-16
$83.58Attribute: 2403-LH-20-16 (20MJ-16MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 2.380 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.7125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 8.367 |
2403-LH-20-16-SS
$744.51Attribute: 2403-LH-20-16-SS (20MJ-16MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 2.380 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.7187 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 8.367 |
2403-LH-20-20
$72.40Attribute: 2403-LH-20-20 (20MJ-20MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 2.430 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.8 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 8.543 |
2403-LH-20-20-SS
$444.20Attribute: 2403-LH-20-20-SS (20MJ-20MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 2.430 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 8.543 |
2403-LH-24-16
$469.26Attribute: 2403-LH-24-16 (24MJ-16MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.125 |
| OVERALL LENGTH L IN | 2.580 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 11.65 |
2403-LH-24-16-SS
$973.41Attribute: 2403-LH-24-16-SS (24MJ-16MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.125 |
| OVERALL LENGTH L IN | 2.580 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 11.65 |
2403-LH-24-20
$166.13Attribute: 2403-LH-24-20 (24MJ-20MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.125 |
| OVERALL LENGTH L IN | 2.620 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.9875 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 11.831 |
2403-LH-24-20-SS
$823.37Attribute: 2403-LH-24-20-SS (24MJ-20MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.125 |
| OVERALL LENGTH L IN | 2.620 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.025 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 11.831 |
2403-LH-24-24
$105.98Attribute: 2403-LH-24-24 (24MJ-24MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.125 |
| OVERALL LENGTH L IN | 2.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.08 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 12.418 |
2403-LH-24-24-SS
$726.70Attribute: 2403-LH-24-24-SS (24MJ-24MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.125 |
| OVERALL LENGTH L IN | 2.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.1062 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 12.418 |
2403-LH-32-24-SS
$1,456.09Attribute: 2403-LH-32-24-SS (32MJ-24MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.750 |
| OVERALL LENGTH L IN | 3.150 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.95 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 23.822 |
2403-LH-32-32
$181.42Attribute: 2403-LH-32-32 (32MJ-32MJ Straigh...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.750 |
| OVERALL LENGTH L IN | 3.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 2.28 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 25.713 |
2403-LH-32-32-SS
$1,440.20Attribute: 2403-LH-32-32-SS (32MJ-32MJ Stra...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.750 |
| OVERALL LENGTH L IN | 3.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.775 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 25.713 |
General Attributes
| Connections | JIC |
|---|---|
| Shape | Straight |
PDF Documents
Download CAD and Drawings
Open PDF
