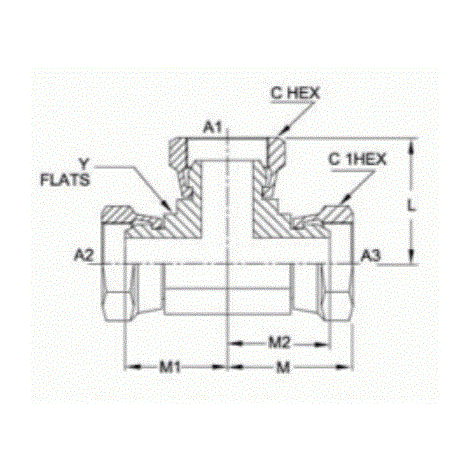

1603-FG

1603-02-02-02-FG

$27.17

Attribute: 1603-02-02-02-FG (02FPS-02FPS-02...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.110
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.110
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
C HEX 2 IN	0.562
C HEX 3 IN	0.562
OVERALL LENGTH L IN	1.680
OVERALL LENGTH L2 IN	0.840
CENTERLINE LENGTH M IN	0.840
CENTERLINE LENGTH M2 IN	0.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-04-04-04-FG

$25.15

Attribute: 1603-04-04-04-FG (04FPS-04FPS-04...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.220
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.220
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
C HEX 2 IN	0.688
C HEX 3 IN	0.688
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.070
CENTERLINE LENGTH M IN	1.070
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-04-04-04-SS

$109.13

Attribute: 1603-04-04-04-SS (04FPS-04FPS-04...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.220
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.220
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
C HEX 2 IN	0.688
C HEX 3 IN	0.688
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.070
CENTERLINE LENGTH M IN	1.070
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-06-06-06-FG

$25.35

Attribute: 1603-06-06-06-FG (06FPS-06FPS-06...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.340
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.340
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
C HEX 2 IN	0.875
C HEX 3 IN	0.875
OVERALL LENGTH L IN	2.400
OVERALL LENGTH L2 IN	1.200
CENTERLINE LENGTH M IN	1.200
CENTERLINE LENGTH M2 IN	0.990
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3312
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-06-06-06-SS

$188.53

Attribute: 1603-06-06-06-SS (06FPS-06FPS-06...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.340
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.340
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
C HEX 2 IN	0.875
C HEX 3 IN	0.875
OVERALL LENGTH L IN	2.400
OVERALL LENGTH L2 IN	1.200
CENTERLINE LENGTH M IN	1.200
CENTERLINE LENGTH M2 IN	0.990
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-08-08-08-FG

$35.73

Attribute: 1603-08-08-08-FG (08FPS-08FPS-08...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.44/0.46
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.44/0.46
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
C HEX 2 IN	1.000
C HEX 3 IN	1.000
OVERALL LENGTH L IN	2.780
OVERALL LENGTH L2 IN	1.390
CENTERLINE LENGTH M IN	1.390
CENTERLINE LENGTH M2 IN	1.110
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4625
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-12-12-12-FG

$62.02

Attribute: 1603-12-12-12-FG (12FPS-12FPS-12...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.620
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.620
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
C HEX 2 IN	1.250
C HEX 3 IN	1.250
OVERALL LENGTH L IN	3.300
OVERALL LENGTH L2 IN	1.650
CENTERLINE LENGTH M IN	1.650
CENTERLINE LENGTH M2 IN	1.300
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7187
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-16-16-16-FG

$124.24

Attribute: 1603-16-16-16-FG (16FPS-16FPS-16...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.780
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.780
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
C HEX 2 IN	1.500
C HEX 3 IN	1.500
OVERALL LENGTH L IN	3.780
OVERALL LENGTH L2 IN	1.890
CENTERLINE LENGTH M IN	1.890
CENTERLINE LENGTH M2 IN	1.540
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.2312
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-20-20-20-FG

$209.74

Attribute: 1603-20-20-20-FG (20FPS-20FPS-20...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	1 1/4-11 1/2
THREAD B1 DRILL IN	1.020
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.020
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1 1/4-11 1/2
THREAD 3 DRILL IN	1.020
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
C HEX 2 IN	1.875
C HEX 3 IN	1.875
OVERALL LENGTH L IN	4.300
OVERALL LENGTH L2 IN	2.150
CENTERLINE LENGTH M IN	2.150
CENTERLINE LENGTH M2 IN	1.730
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

1603-24-24-24-FG

$488.85

Attribute: 1603-24-24-24-FG (24FPS-24FPS-24...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPSM SWIVEL
THREAD B1 SIZE	1 1/2-11 1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/2-11 1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1 1/2-11 1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.125
C HEX 2 IN	2.125
C HEX 3 IN	2.125
OVERALL LENGTH L IN	4.620
OVERALL LENGTH L2 IN	2.310
CENTERLINE LENGTH M IN	2.310
CENTERLINE LENGTH M2 IN	1.890
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.666
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT
Shape	Tee

ID	10142569
Category	Tube Fittings and Adapters

Description

Description

Variations (10)

1603-02-02-02-FG

1603-04-04-04-FG

1603-04-04-04-SS

1603-06-06-06-FG

1603-06-06-06-SS

1603-08-08-08-FG

1603-12-12-12-FG

1603-16-16-16-FG

1603-20-20-20-FG

1603-24-24-24-FG
