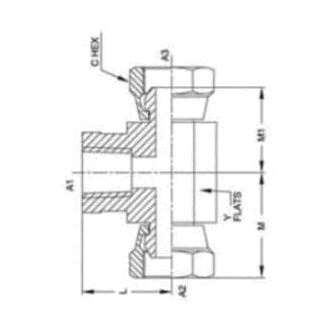

1602-FG

1602-02-02-02-FG

$24.51

Attribute: 1602-02-02-02-FG (02FP-02FPS-02F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.120
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.120
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
C HEX 2 IN	0.562
OVERALL LENGTH L IN	1.880
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	0.940
CENTERLINE LENGTH M2 IN	0.800
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-04-04-04-FG

$22.05

Attribute: 1602-04-04-04-FG (04FP-04FPS-04F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.220
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.750
C HEX 2 IN	0.750
OVERALL LENGTH L IN	2.360
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.180
CENTERLINE LENGTH M2 IN	0.990
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2562
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-06-04-04-FG

$33.32

Attribute: 1602-06-04-04-FG (06FP-04FPS-04F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.220
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-06-06-06-FG

$31.70

Attribute: 1602-06-06-06-FG (06FP-06FPS-06F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.340
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L2 IN	0.940
CENTERLINE LENGTH M2 IN	0.990
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-08-06-06-FG

$36.37

Attribute: 1602-08-06-06-FG (08FP-06FPS-06F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.340
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.062
C HEX 2 IN	1.062
OVERALL LENGTH L IN	2.340
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.170
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5625
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-08-08-08-FG

$44.79

Attribute: 1602-08-08-08-FG (08FP-08FPS-08F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.460
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.062
C HEX 2 IN	1.062
OVERALL LENGTH L IN	3.040
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.520
CENTERLINE LENGTH M2 IN	1.240
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-12-08-08-FG

$79.54

Attribute: 1602-12-08-08-FG (12FP-08FPS-08F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.460
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.312
C HEX 2 IN	1.312
OVERALL LENGTH L IN	3.500
OVERALL LENGTH L2 IN	1.360
CENTERLINE LENGTH M IN	1.750
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.9375
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-12-12-12-FG

$65.12

Attribute: 1602-12-12-12-FG (12FP-12FPS-12F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.630
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.630
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.312
C HEX 2 IN	1.312
OVERALL LENGTH L IN	3.640
OVERALL LENGTH L2 IN	1.360
CENTERLINE LENGTH M IN	1.820
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.9562
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-16-16-16-FG

$135.27

Attribute: 1602-16-16-16-FG (16FP-16FPS-16F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11 1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11 1/2
THREAD B2 DRILL IN	0.800
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1-11 1/2
THREAD 3 DRILL IN	0.800
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.625
C HEX 2 IN	1.625
OVERALL LENGTH L IN	4.160
OVERALL LENGTH L2 IN	1.620
CENTERLINE LENGTH M IN	2.080
CENTERLINE LENGTH M2 IN	1.730
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.7375
CALIFORNIA RESIDENTS	PROP-65 WARNING

1602-20-20-20-FG

$162.49

Attribute: 1602-20-20-20-FG (20FP-20FPS-20F...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1 1/4-11 1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.020
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1 1/4-11 1/2
THREAD 3 DRILL IN	1.020
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
C HEX 2 IN	1.875
OVERALL LENGTH L IN	4.500
OVERALL LENGTH L2 IN	1.700
CENTERLINE LENGTH M IN	2.250
CENTERLINE LENGTH M2 IN	1.830
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.2875
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT
Shape	Tee

ID	10142556
Category	Tube Fittings and Adapters
