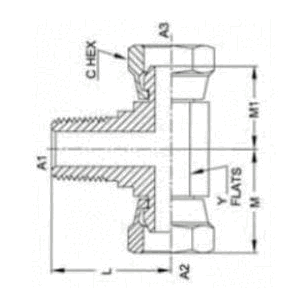

1601-FG

1601-02-02-02-FG

$27.27

Attribute: 1601-02-02-02-FG (02MP-02FPS-02F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.120
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.120
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.438
C HEX 2 IN	0.438
OVERALL LENGTH L IN	1.680
OVERALL LENGTH L2 IN	0.740
CENTERLINE LENGTH M IN	0.840
CENTERLINE LENGTH M2 IN	0.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-04-04-04-FG

$21.17

Attribute: 1601-04-04-04-FG (04MP-04FPS-04F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.220
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
C HEX 2 IN	0.562
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.090
CENTERLINE LENGTH M IN	1.070
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-04-06-06-FG

$25.05

Attribute: 1601-04-06-06-FG (04MP-06FPS-06F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.340
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.750
C HEX 2 IN	0.750
OVERALL LENGTH L IN	1.980
OVERALL LENGTH L2 IN	1.220
CENTERLINE LENGTH M IN	0.990
CENTERLINE LENGTH M2 IN	0.990
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-06-04-04-FG

$32.35

Attribute: 1601-06-04-04-FG (06MP-04FPS-04F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.220
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.750
C HEX 2 IN	0.750
OVERALL LENGTH L IN	2.320
OVERALL LENGTH L2 IN	1.220
CENTERLINE LENGTH M IN	1.160
CENTERLINE LENGTH M2 IN	0.970
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-06-06-06-FG

$23.63

Attribute: 1601-06-06-06-FG (06MP-06FPS-06F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.340
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.750
C HEX 2 IN	0.750
OVERALL LENGTH L IN	2.400
OVERALL LENGTH L2 IN	1.220
CENTERLINE LENGTH M IN	1.200
CENTERLINE LENGTH M2 IN	0.990
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-08-04-04-FG

$41.35

Attribute: 1601-08-04-04-FG (08MP-04FPS-04F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.210
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	2.066
OVERALL LENGTH L2 IN	1.470
CENTERLINE LENGTH M2 IN	1.033
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3625
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-08-06-06-FG

$34.30

Attribute: 1601-08-06-06-FG (08MP-06FPS-06F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.340
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.470
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.040
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4062
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-08-08-08-FG

$30.42

Attribute: 1601-08-08-08-FG (08MP-08FPS-08F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.460
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	2.780
OVERALL LENGTH L2 IN	1.470
CENTERLINE LENGTH M IN	1.390
CENTERLINE LENGTH M2 IN	1.110
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4312
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-08-08-08-SS

$214.67

Attribute: 1601-08-08-08-SS (08MP-08FPS-08F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.460
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	2.780
OVERALL LENGTH L2 IN	1.470
CENTERLINE LENGTH M IN	1.390
CENTERLINE LENGTH M2 IN	1.110
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.825
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-08-12-12-FG

$56.86

Attribute: 1601-08-12-12-FG (08MP-12FPS-12F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.620
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
C HEX 2 IN	1.062
OVERALL LENGTH L IN	3.300
OVERALL LENGTH L2 IN	1.590
CENTERLINE LENGTH M IN	1.650
CENTERLINE LENGTH M2 IN	1.300
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6437
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-12-08-08-FG

$55.27

Attribute: 1601-12-08-08-FG (12MP-08FPS-08F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.460
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
C HEX 2 IN	1.062
OVERALL LENGTH L IN	3.220
OVERALL LENGTH L2 IN	1.590
CENTERLINE LENGTH M IN	1.610
CENTERLINE LENGTH M2 IN	1.330
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6437
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-12-12-12-FG

$43.77

Attribute: 1601-12-12-12-FG (12MP-12FPS-12F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.620
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
C HEX 2 IN	1.062
OVERALL LENGTH L IN	3.300
OVERALL LENGTH L2 IN	1.590
CENTERLINE LENGTH M IN	1.650
CENTERLINE LENGTH M2 IN	1.300
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6625
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-12-16-16-FG

$97.81

Attribute: 1601-12-16-16-FG (12MP-16FPS-16F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11 1/2
THREAD B2 DRILL IN	0.831
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1-11 1/2
THREAD 3 DRILL IN	0.831
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.312
C HEX 2 IN	1.312
OVERALL LENGTH L IN	3.780
OVERALL LENGTH L2 IN	1.780
CENTERLINE LENGTH M IN	1.890
CENTERLINE LENGTH M2 IN	1.540
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-16-16-16-FG

$76.06

Attribute: 1601-16-16-16-FG (16MP-16FPS-16F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11 1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11 1/2
THREAD B2 DRILL IN	0.800
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1-11 1/2
THREAD 3 DRILL IN	0.800
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.312
C HEX 2 IN	1.312
OVERALL LENGTH L IN	3.780
OVERALL LENGTH L2 IN	1.970
CENTERLINE LENGTH M IN	1.890
CENTERLINE LENGTH M2 IN	1.540
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-20-20-20-FG

$191.19

Attribute: 1601-20-20-20-FG (20MP-20FPS-20F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1 1/4-11 1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.020
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1 1/4-11 1/2
THREAD 3 DRILL IN	1.020
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.625
C HEX 2 IN	1.625
OVERALL LENGTH L IN	4.300
OVERALL LENGTH L2 IN	2.380
CENTERLINE LENGTH M IN	2.150
CENTERLINE LENGTH M2 IN	1.730
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.9062
CALIFORNIA RESIDENTS	PROP-65 WARNING

1601-24-24-24-FG

$313.11

Attribute: 1601-24-24-24-FG (24MP-24FPS-24F...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1 1/2-11 1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/2-11 1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPSM SWIVEL
THREAD 3 SIZE	1 1/2-11 1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	1.875
C HEX 2 IN	1.875
OVERALL LENGTH L IN	4.620
OVERALL LENGTH L2 IN	2.640
CENTERLINE LENGTH M IN	2.310
CENTERLINE LENGTH M2 IN	1.890
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.3937
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT
Shape	Tee

ID	10142537
Category	Tube Fittings and Adapters

Description

Description

Variations (16)

1601-02-02-02-FG

1601-04-04-04-FG

1601-04-06-06-FG

1601-06-04-04-FG

1601-06-06-06-FG

1601-08-04-04-FG

1601-08-06-06-FG

1601-08-08-08-FG

1601-08-08-08-SS

1601-08-12-12-FG

1601-12-08-08-FG

1601-12-12-12-FG

1601-12-16-16-FG

1601-16-16-16-FG

1601-20-20-20-FG

1601-24-24-24-FG

General Attributes

PDF Documents
