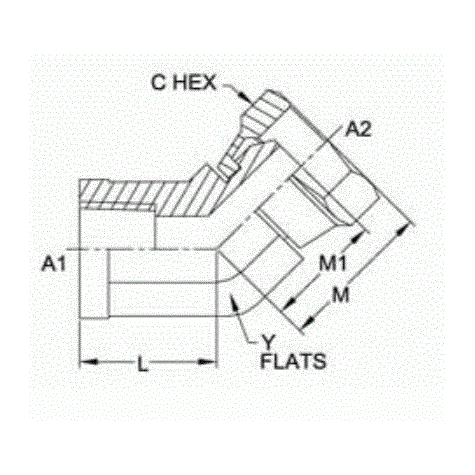

1504-FG

1504-02-02-FG

$23.28

Attribute: 1504-02-02-FG (02FP-02FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.470
CENTERLINE LENGTH M IN	0.550
CENTERLINE LENGTH M2 IN	0.700
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-02-04-FG

$19.64

Attribute: 1504-02-04-FG (02FP-04FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.750
OVERALL LENGTH L IN	0.500
CENTERLINE LENGTH M IN	0.760
CENTERLINE LENGTH M2 IN	0.950
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-04-04-FG

$18.51

Attribute: 1504-04-04-FG (04FP-04FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.750
OVERALL LENGTH L IN	0.690
CENTERLINE LENGTH M IN	0.760
CENTERLINE LENGTH M2 IN	0.950
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-04-04-SS

$92.83

Attribute: 1504-04-04-SS (04FP-04FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.750
OVERALL LENGTH L IN	0.690
CENTERLINE LENGTH M IN	0.760
CENTERLINE LENGTH M2 IN	0.950
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2562
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-04-06-FG

$15.40

Attribute: 1504-04-06-FG (04FP-06FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.690
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-06-04-FG

$20.93

Attribute: 1504-06-04-FG (06FP-04FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.750
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.960
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1812
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-06-06-FG

$30.62

Attribute: 1504-06-06-FG (06FP-06FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.750
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-06-06-SS

$110.95

Attribute: 1504-06-06-SS (06FP-06FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.750
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1937
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-06-08-FG

$40.56

Attribute: 1504-06-08-FG (06FP-08FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.062
OVERALL LENGTH L IN	0.750
CENTERLINE LENGTH M IN	0.830
CENTERLINE LENGTH M2 IN	1.110
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3062
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-08-06-FG

$40.56

Attribute: 1504-08-06-FG (08FP-06FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.062
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	1.160
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3437
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-08-08-FG

$27.37

Attribute: 1504-08-08-FG (08FP-08FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.062
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	1.020
CENTERLINE LENGTH M2 IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3437
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-08-08-SS

$120.15

Attribute: 1504-08-08-SS (08FP-08FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.062
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	1.020
CENTERLINE LENGTH M2 IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8125
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-12-08-FG

$43.41

Attribute: 1504-12-08-FG (12FP-08FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.000
CENTERLINE LENGTH M IN	0.960
CENTERLINE LENGTH M2 IN	1.240
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.45
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-12-12-FG

$37.07

Attribute: 1504-12-12-FG (12FP-12FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.610
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.000
CENTERLINE LENGTH M IN	1.010
CENTERLINE LENGTH M2 IN	1.360
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5125
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-12-12-SS

$461.28

Attribute: 1504-12-12-SS (12FP-12FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.610
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.000
CENTERLINE LENGTH M IN	0.960
CENTERLINE LENGTH M2 IN	1.310
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-16-12-FG

$61.38

Attribute: 1504-16-12-FG (16FP-12FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.610
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.625
OVERALL LENGTH L IN	1.190
CENTERLINE LENGTH M IN	1.070
CENTERLINE LENGTH M2 IN	1.420
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.8125
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-16-16-FG

$64.82

Attribute: 1504-16-16-FG (16FP-16FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.625
OVERALL LENGTH L IN	1.190
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	1.580
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.8937
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-16-16-SS

$402.70

Attribute: 1504-16-16-SS (16FP-16FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.625
OVERALL LENGTH L IN	1.190
CENTERLINE LENGTH M IN	1.180
CENTERLINE LENGTH M2 IN	1.530
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8812
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-20-20-FG

$103.76

Attribute: 1504-20-20-FG (20FP-20FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.010
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	1.440
CENTERLINE LENGTH M IN	1.350
CENTERLINE LENGTH M2 IN	1.770
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

1504-24-24-FG

$185.23

Attribute: 1504-24-24-FG (24FP-24FPS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.315
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.562
OVERALL LENGTH L IN	1.460
CENTERLINE LENGTH M IN	1.460
CENTERLINE LENGTH M2 IN	1.880
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.6687
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT
Shape	Elbow

ID	10142514
Category	Tube Fittings and Adapters

Description

Description

Variations (20)

1504-02-02-FG

1504-02-04-FG

1504-04-04-FG

1504-04-04-SS

1504-04-06-FG

1504-06-04-FG

1504-06-06-FG

1504-06-06-SS

1504-06-08-FG

1504-08-06-FG

1504-08-08-FG

1504-08-08-SS

1504-12-08-FG

1504-12-12-FG

1504-12-12-SS

1504-16-12-FG

1504-16-16-FG

1504-16-16-SS

1504-20-20-FG

1504-24-24-FG

General Attributes

PDF Documents
