1405

1405-02-02

$7.24

Attribute: 1405-02-02 (02FP-02FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J514

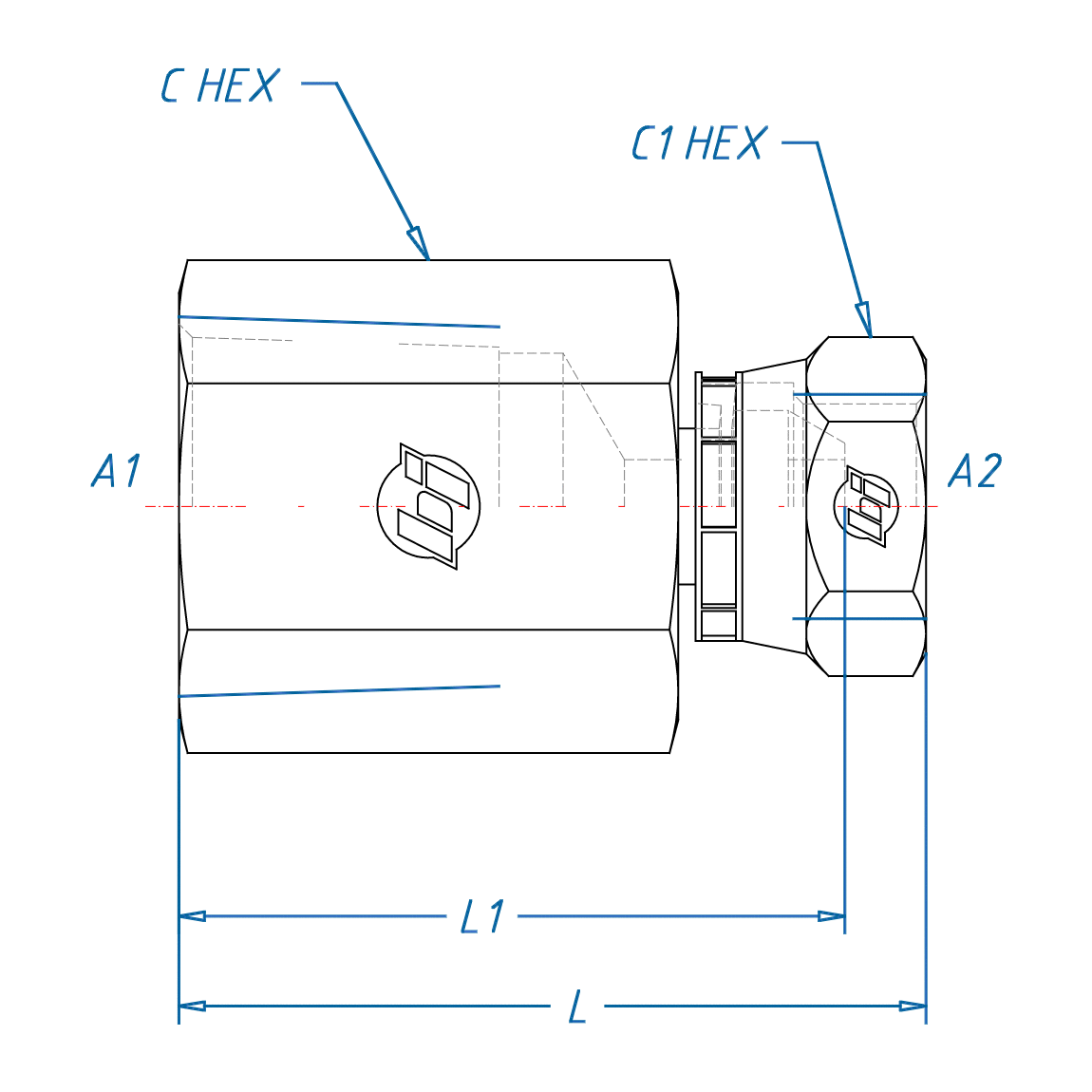

BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.020
OVERALL LENGTH L2 IN	0.880
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.063
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.322

1405-02-02-SS

$53.56

Attribute: 1405-02-02-SS (02FP-02FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.020
OVERALL LENGTH L2 IN	0.880
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0562
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.322

1405-02-04

$10.58

Attribute: 1405-02-04 (02FP-04FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.290
OVERALL LENGTH L2 IN	1.100
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.611

1405-04-02

$10.93

Attribute: 1405-04-02 (04FP-02FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.330
OVERALL LENGTH L2 IN	1.190
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.08
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.63

1405-04-02-SS

$68.86

Attribute: 1405-04-02-SS (04FP-02FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.330
OVERALL LENGTH L2 IN	1.150
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.63

1405-04-04

$8.27

Attribute: 1405-04-04 (04FP-04FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.420
OVERALL LENGTH L2 IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.672

1405-04-04-SS

$91.90

Attribute: 1405-04-04-SS (04FP-04FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.420
OVERALL LENGTH L2 IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.125
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.672

1405-04-06

$13.98

Attribute: 1405-04-06 (04FP-06FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.480
OVERALL LENGTH L2 IN	1.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.12
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.701

1405-04-06-SS

$317.65

Attribute: 1405-04-06-SS (04FP-06FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.480
OVERALL LENGTH L2 IN	1.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.05
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.701

1405-04-08

$17.92

Attribute: 1405-04-08 (04FP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.600
OVERALL LENGTH L2 IN	1.320
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2087
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.6

1405-06-04

$11.76

Attribute: 1405-06-04 (06FP-04FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.480
OVERALL LENGTH L2 IN	1.290
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1475
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.133

1405-06-04-SS

$315.88

Attribute: 1405-06-04-SS (06FP-04FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.480
OVERALL LENGTH L2 IN	1.290
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1437
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.133

1405-06-06

$11.08

Attribute: 1405-06-06 (06FP-06FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.17
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.164

1405-06-06-SS

$63.40

Attribute: 1405-06-06-SS (06FP-06FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.164

1405-06-08

$14.47

Attribute: 1405-06-08 (06FP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	1.500
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.28
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.363

1405-06-08-SS

$108.98

Attribute: 1405-06-08-SS (06FP-08FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	1.500
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.4
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.363

1405-08-04

$16.49

Attribute: 1405-08-04 (08FP-04FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.210
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.560
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2033
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.75

1405-08-06

$17.53

Attribute: 1405-08-06 (08FP-06FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.660
OVERALL LENGTH L2 IN	1.450
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.208
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.66

1405-08-06-SS

$260.29

Attribute: 1405-08-06-SS (08FP-06FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.660
OVERALL LENGTH L2 IN	1.450
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.66

1405-08-08

$12.85

Attribute: 1405-08-08 (08FP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.840
OVERALL LENGTH L2 IN	1.560
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.224
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.84

1405-08-08-SS

$152.99

Attribute: 1405-08-08-SS (08FP-08FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.840
OVERALL LENGTH L2 IN	1.560
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.84

1405-08-12

$40.41

Attribute: 1405-08-12 (08FP-12FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.610
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.970
OVERALL LENGTH L2 IN	1.620
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4267
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.078

1405-12-08

$29.29

Attribute: 1405-12-08 (12FP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.910
OVERALL LENGTH L2 IN	1.630
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.984

1405-12-12

$20.93

Attribute: 1405-12-12 (12FP-12FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.610
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.970
OVERALL LENGTH L2 IN	1.620
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.36
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.078

1405-12-12-SS

$158.90

Attribute: 1405-12-12-SS (12FP-12FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.610
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.970
OVERALL LENGTH L2 IN	1.620
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4687
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.078

1405-12-16

$24.37

Attribute: 1405-12-16 (12FP-16FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.180
OVERALL LENGTH L2 IN	1.830
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.7067
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.905

1405-16-12

$41.60

Attribute: 1405-16-12 (16FP-12FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.610
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.250
OVERALL LENGTH L2 IN	1.900
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.51
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.063

1405-16-16

$24.61

Attribute: 1405-16-16 (16FP-16FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.350
OVERALL LENGTH L2 IN	2.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.55
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.288

1405-16-16-SS

$181.09

Attribute: 1405-16-16-SS (16FP-16FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.350
OVERALL LENGTH L2 IN	2.000
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7125
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.288

1405-20-20

$48.83

Attribute: 1405-20-20 (20FP-20FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.010
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.400
OVERALL LENGTH L2 IN	1.980
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.8667
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.438

1405-20-20-SS

$357.62

Attribute: 1405-20-20-SS (20FP-20FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.010
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.400
OVERALL LENGTH L2 IN	1.980
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.82
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.438

1405-24-24

$66.41

Attribute: 1405-24-24 (24FP-24FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.520
OVERALL LENGTH L2 IN	2.100
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.05
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.379

1405-24-24-SS

$472.80

Attribute: 1405-24-24-SS (24FP-24FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.520
OVERALL LENGTH L2 IN	2.100
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.35
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.379

1405-32-32

$163.68

Attribute: 1405-32-32 (32FP-32FPS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.720
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.625
C HEX 1 IN	2.625
OVERALL LENGTH L IN	2.670
OVERALL LENGTH L2 IN	2.250
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.56
MAXIMUM DYNAMIC PRESSURE PSI	1,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	18.398

1405-32-32-SS

$1,176.26

Attribute: 1405-32-32-SS (32FP-32FPS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.720
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.625
C HEX 1 IN	2.625
OVERALL LENGTH L IN	2.670
OVERALL LENGTH L2 IN	2.250
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.56
MAXIMUM DYNAMIC PRESSURE PSI	1,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	18.398

ID	10142402
Category	Tube Fittings and Adapters

Connections	NPT
Shape	Straight

Description

Description

Variations (35)

1405-02-02

1405-02-02-SS

1405-02-04

1405-04-02

1405-04-02-SS

1405-04-04

1405-04-04-SS

1405-04-06

1405-04-06-SS

1405-04-08

1405-06-04

1405-06-04-SS

1405-06-06

1405-06-06-SS

1405-06-08

1405-06-08-SS

1405-08-04

1405-08-06

1405-08-06-SS

1405-08-08

1405-08-08-SS

1405-08-12

1405-12-08

1405-12-12

1405-12-12-SS

1405-12-16

1405-16-12

1405-16-16

1405-16-16-SS

1405-20-20

1405-20-20-SS

1405-24-24

1405-24-24-SS

1405-32-32

1405-32-32-SS

General Attributes

PDF Documents
