1404

1404-02-02

$6.05

Attribute: 1404-02-02 (02MP-02FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.11
THREAD B2 SPECIFICATION	SAE J514

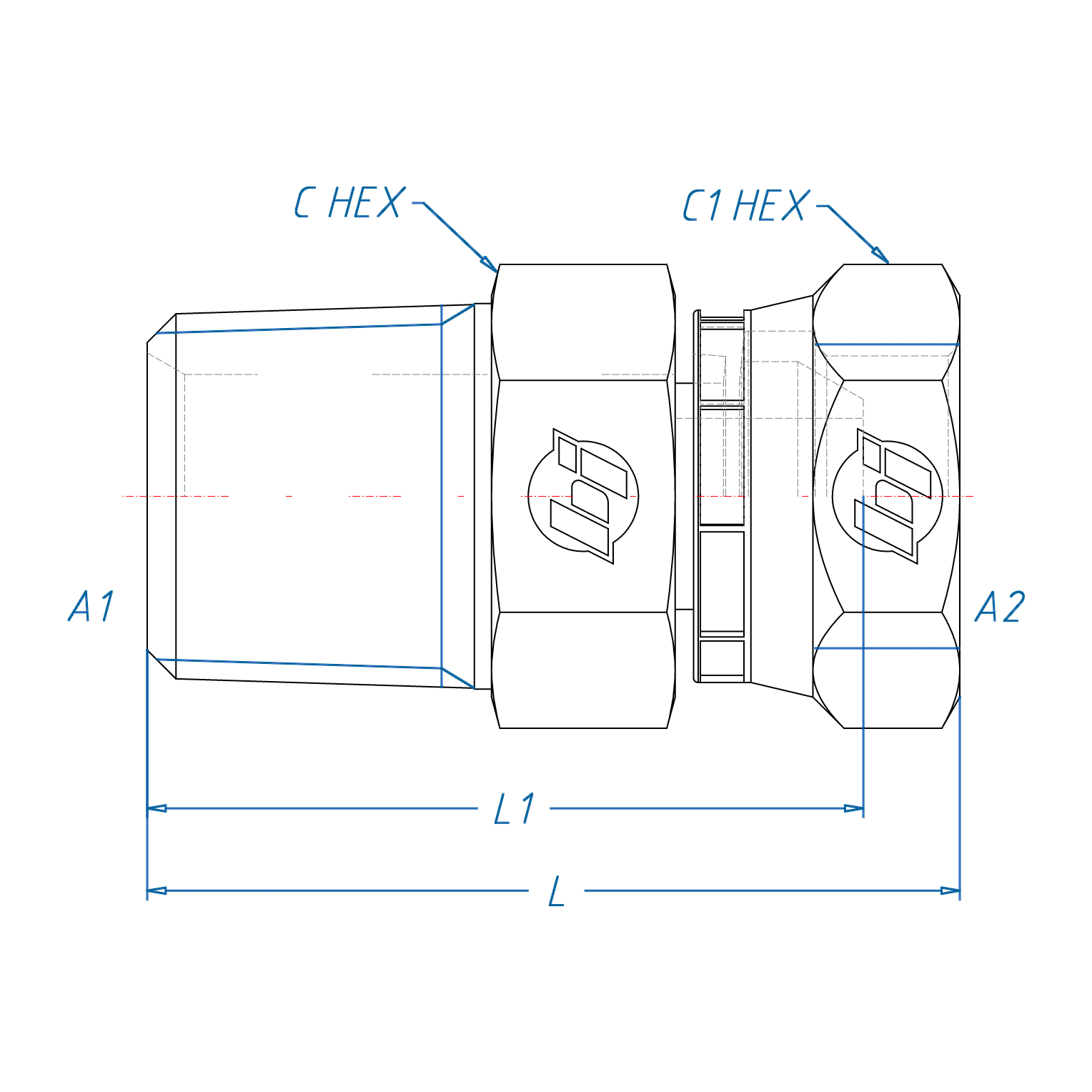

BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.080
OVERALL LENGTH L2 IN	0.940
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0449
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.341

1404-02-02 1/2" HEX

$6.89

Attribute: 1404-02-02 1/2" HEX (02MP-02FPS ...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.11
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.500
C HEX 1 IN	0.500
OVERALL LENGTH L IN	1.080
OVERALL LENGTH L2 IN	0.940
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0375
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.270

1404-02-02-SS

$30.56

Attribute: 1404-02-02-SS (02MP-02FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.11
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.080
OVERALL LENGTH L2 IN	0.940
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.05
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.341

1404-02-04

$7.09

Attribute: 1404-02-04 (02MP-04FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.21
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.240
OVERALL LENGTH L2 IN	1.050
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.07
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.587

1404-02-04-SS

$36.67

Attribute: 1404-02-04-SS (02MP-04FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.21
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.240
OVERALL LENGTH L2 IN	1.050
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1125
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.587

1404-04-02

$7.88

Attribute: 1404-04-02 (04MP-02FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.138
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.320
OVERALL LENGTH L2 IN	1.190
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0788
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.625

1404-04-02-SS

$36.82

Attribute: 1404-04-02-SS (04MP-02FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.138
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.320
OVERALL LENGTH L2 IN	1.190
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0812
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.625

1404-04-04

$7.14

Attribute: 1404-04-04 (04MP-04FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.21
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.420
OVERALL LENGTH L2 IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0867
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.672

1404-04-04-SS

$83.58

Attribute: 1404-04-04-SS (04MP-04FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.21
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.420
OVERALL LENGTH L2 IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0875
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.672

1404-04-06

$8.52

Attribute: 1404-04-06 (04MP-06FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.812
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.124
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.002

1404-04-06-SS

$132.07

Attribute: 1404-04-06-SS (04MP-06FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.812
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1375
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.002

1404-04-08

$27.61

Attribute: 1404-04-08 (04MP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
OVERALL LENGTH L2 IN	1.440
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2033
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.7

1404-04-08-SS

$252.87

Attribute: 1404-04-08-SS (04MP-08FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
OVERALL LENGTH L2 IN	1.440
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.2
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.7

1404-06-04

$8.37

Attribute: 1404-06-04 (06MP-04FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	021
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.490
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1097
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.838

1404-06-04-SS

$120.65

Attribute: 1404-06-04-SS (06MP-04FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.21
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.490
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1125
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.838

1404-06-06

$8.42

Attribute: 1404-06-06 (06MP-06FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.32
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1444
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.164

1404-06-06-SS

$117.40

Attribute: 1404-06-06-SS (06MP-06FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.32
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.175
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.164

1404-06-08

$10.63

Attribute: 1404-06-08 (06MP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.700
OVERALL LENGTH L2 IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.7

1404-06-08-SS

$192.86

Attribute: 1404-06-08-SS (06MP-08FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
OVERALL LENGTH L2 IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.7

1404-08-04

$16.44

Attribute: 1404-08-04 (08MP-04FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.21
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.710
OVERALL LENGTH L2 IN	1.520
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2133
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.309

1404-08-04-SS

$201.92

Attribute: 1404-08-04-SS (08MP-04FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.21
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.710
OVERALL LENGTH L2 IN	1.520
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0312
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.309

1404-08-06

$10.98

Attribute: 1404-08-06 (08MP-06FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.32
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.770
OVERALL LENGTH L2 IN	1.560
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2033
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.355

1404-08-06-SS

$225.55

Attribute: 1404-08-06-SS (08MP-06FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.32
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.770
OVERALL LENGTH L2 IN	1.560
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2187
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.355

1404-08-08

$11.22

Attribute: 1404-08-08 (08MP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.610
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.224
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.89

1404-08-08-SS

$233.32

Attribute: 1404-08-08-SS (08MP-08FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.610
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.89

1404-08-12

$18.26

Attribute: 1404-08-12 (08MP-12FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.61
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.090
OVERALL LENGTH L2 IN	1.740
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3733
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.266

1404-08-12-SS

$476.79

Attribute: 1404-08-12-SS (08MP-12FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.61
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.090
OVERALL LENGTH L2 IN	1.740
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4375
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.266

1404-12-06

$20.43

Attribute: 1404-12-06 (12MP-06FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.42
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.770
OVERALL LENGTH L2 IN	1.560
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2187
MAXIMUM DYNAMIC PRESSURE PSI	5,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.24

1404-12-08

$16.39

Attribute: 1404-12-08 (12MP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.930
OVERALL LENGTH L2 IN	1.650
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2867
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.443

1404-12-08-SS

$478.51

Attribute: 1404-12-08-SS (12MP-08FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.930
OVERALL LENGTH L2 IN	1.650
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.28
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.443

1404-12-12

$18.80

Attribute: 1404-12-12 (12MP-12FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.75
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.080
OVERALL LENGTH L2 IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3667
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.25

1404-12-12-SS

$366.47

Attribute: 1404-12-12-SS (12MP-12FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.75
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.080
OVERALL LENGTH L2 IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3625
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.25

1404-12-16

$30.86

Attribute: 1404-12-16 (12MP-16FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.160
OVERALL LENGTH L2 IN	1.810
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.53
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.86

1404-12-16-SS

$404.23

Attribute: 1404-12-16-SS (12MP-16FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.160
OVERALL LENGTH L2 IN	1.810
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.6
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.86

1404-12-20

$108.73

Attribute: 1404-12-20 (12MP-20FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.09
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.280
OVERALL LENGTH L2 IN	1.860
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.7167
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.016

1404-16-06

$56.21

Attribute: 1404-16-06 (16MP-06FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.32
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	0.875
OVERALL LENGTH L IN	2.040
OVERALL LENGTH L2 IN	1.830
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4187
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.59

1404-16-08

$33.23

Attribute: 1404-16-08 (16MP-08FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.46
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.160
OVERALL LENGTH L2 IN	1.910
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4125
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.084

1404-16-12

$29.78

Attribute: 1404-16-12 (16MP-12FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.61
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.290
OVERALL LENGTH L2 IN	1.940
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.54
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.153

1404-16-12-SS

$416.49

Attribute: 1404-16-12-SS (16MP-12FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.61
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.290
OVERALL LENGTH L2 IN	1.940
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5062
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.153

1404-16-16

$25.21

Attribute: 1404-16-16 (16MP-16FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.350
OVERALL LENGTH L2 IN	2.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.54
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.288

1404-16-16-SS

$308.04

Attribute: 1404-16-16-SS (16MP-16FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.350
OVERALL LENGTH L2 IN	2.000
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.675
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.288

1404-16-20

$52.47

Attribute: 1404-16-20 (16MP-20FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	0.94
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.470
OVERALL LENGTH L2 IN	2.050
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.9167
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.684

1404-16-24

$56.36

Attribute: 1404-16-24 (16MP-24FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.550
OVERALL LENGTH L2 IN	2.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.9562
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.515

1404-20-16

$85.55

Attribute: 1404-20-16 (20MP-16FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.400
OVERALL LENGTH L2 IN	2.050
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.8
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.438

1404-20-16-SS

$571.10

Attribute: 1404-20-16-SS (20MP-16FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.400
OVERALL LENGTH L2 IN	2.050
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE PSI	2,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.438

1404-20-20

$44.84

Attribute: 1404-20-20 (20MP-20FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.01
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.520
OVERALL LENGTH L2 IN	2.100
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.85
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.859

1404-20-20-SS

$745.06

Attribute: 1404-20-20-SS (20MP-20FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.01
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.520
OVERALL LENGTH L2 IN	2.100
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.0625
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.859

1404-20-24

$73.49

Attribute: 1404-20-24 (20MP-24FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.470
OVERALL LENGTH L2 IN	2.090
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.06
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.154

1404-20-24-SS

$975.23

Attribute: 1404-20-24-SS (20MP-24FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.470
OVERALL LENGTH L2 IN	2.090
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.992
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.154

1404-24-20

$58.33

Attribute: 1404-24-20 (24MP-20FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.01
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.540
OVERALL LENGTH L2 IN	2.120
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.9562
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.47

1404-24-20-SS

$1,077.02

Attribute: 1404-24-20-SS (24MP-20FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.01
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.540
OVERALL LENGTH L2 IN	2.120
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.14
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	11.47

1404-24-24

$59.76

Attribute: 1404-24-24 (24MP-24FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.690
OVERALL LENGTH L2 IN	2.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.12
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	12.147

1404-24-24-SS

$1,123.74

Attribute: 1404-24-24-SS (24MP-24FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.25
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.690
OVERALL LENGTH L2 IN	2.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.2687
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	12.147

1404-32-32

$130.54

Attribute: 1404-32-32 (32MP-32FPS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.72
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.625
C HEX 1 IN	2.625
OVERALL LENGTH L IN	2.820
OVERALL LENGTH L2 IN	2.400
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.88
MAXIMUM DYNAMIC PRESSURE PSI	1,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	19.432

1404-32-32-SS

$1,666.53

Attribute: 1404-32-32-SS (32MP-32FPS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.72
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.625
C HEX 1 IN	2.625
OVERALL LENGTH L IN	2.820
OVERALL LENGTH L2 IN	2.400
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.8
MAXIMUM DYNAMIC PRESSURE PSI	1,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	19.432

Description

Description

Variations (55)

1404-02-02

1404-02-02 1/2" HEX

1404-02-02-SS

1404-02-04

1404-02-04-SS

1404-04-02

1404-04-02-SS

1404-04-04

1404-04-04-SS

1404-04-06

1404-04-06-SS

1404-04-08

1404-04-08-SS

1404-06-04

1404-06-04-SS

1404-06-06

1404-06-06-SS

1404-06-08

1404-06-08-SS

1404-08-04

1404-08-04-SS

1404-08-06

1404-08-06-SS

1404-08-08

1404-08-08-SS

1404-08-12

1404-08-12-SS

1404-12-06

1404-12-08

1404-12-08-SS

1404-12-12

1404-12-12-SS

1404-12-16

1404-12-16-SS

1404-12-20

1404-16-06

1404-16-08

1404-16-12

1404-16-12-SS

1404-16-16

1404-16-16-SS

1404-16-20

1404-16-24

1404-20-16

1404-20-16-SS

1404-20-20

1404-20-20-SS

1404-20-24

1404-20-24-SS

1404-24-20

1404-24-20-SS

1404-24-24

1404-24-24-SS

1404-32-32

1404-32-32-SS

General Attributes

PDF Documents
