0404

0404-04-02

$14.23

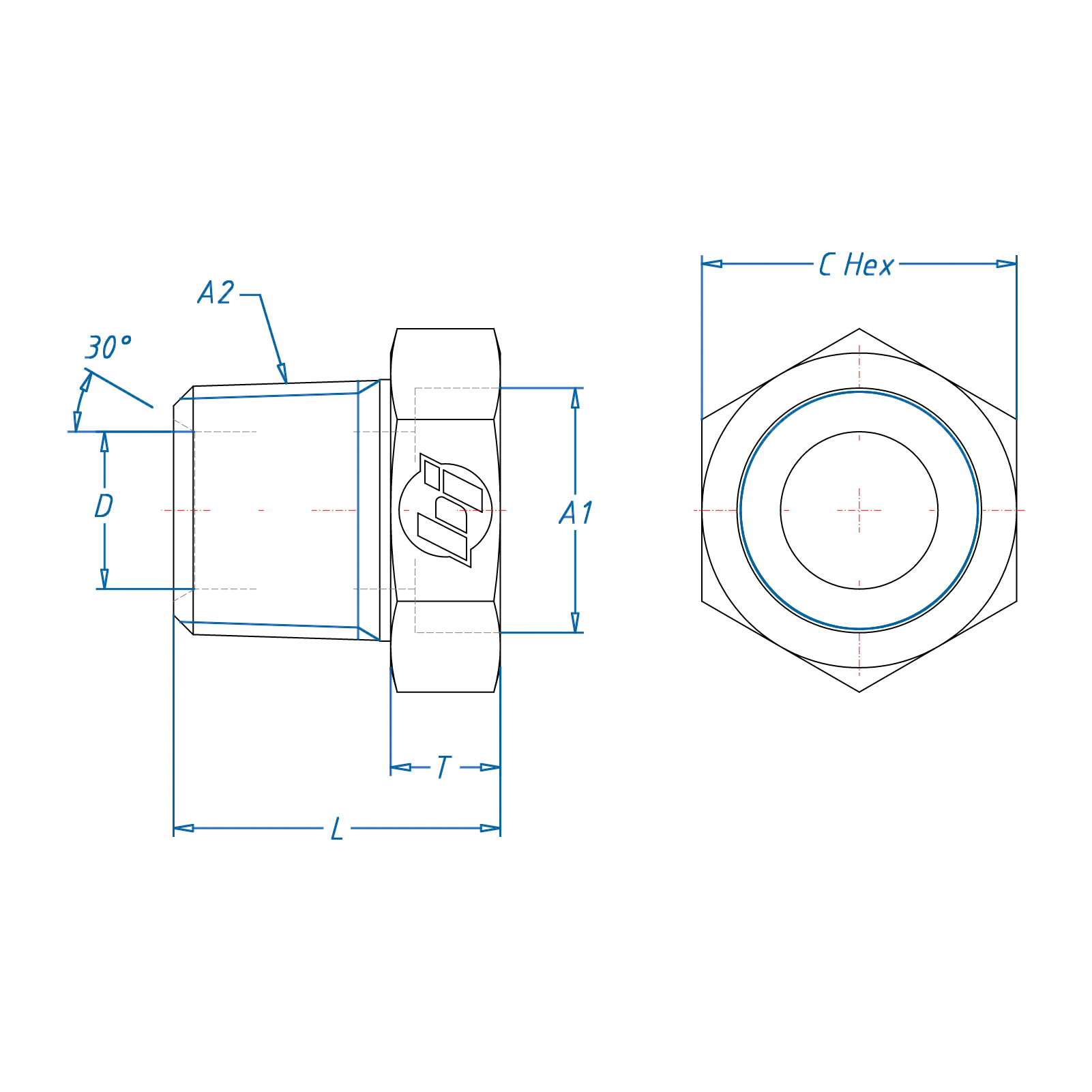

Attribute: 0404-04-02 (04Bore-02MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.256
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.500
OVERALL LENGTH L IN	0.562
OVERALL LENGTH L2 IN	0.180
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.021
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-04-02-SS

$47.62

Attribute: 0404-04-02-SS (04Bore-02MP Strai...)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.256
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.500
OVERALL LENGTH L IN	0.562
OVERALL LENGTH L2 IN	0.180
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-04-04

$9.89

Attribute: 0404-04-04 (04Bore-04MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	0.256
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	0.812
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-06-04

$10.48

Attribute: 0404-06-04 (06Bore-04MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.381
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	0.812
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.038
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-06-04-SS

$60.93

Attribute: 0404-06-04-SS (06Bore-04MP Strai...)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.381
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	0.812
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-06-06

$10.98

Attribute: 0404-06-06 (06Bore-06MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	0.379
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.850
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-06-08

$8.47

Attribute: 0404-06-08 (06Bore-08MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 3/8-1/2
THREAD B1 DRILL IN	0.379
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.060
OVERALL LENGTH L2 IN	0.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-08-06

$11.08

Attribute: 0404-08-06 (08Bore-06MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.506
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
OVERALL LENGTH L IN	0.850
OVERALL LENGTH L2 IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0613
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-08-08

$12.85

Attribute: 0404-08-08 (08Bore-08MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	0.506
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.100
OVERALL LENGTH L2 IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-10-06

$168.69

Attribute: 0404-10-06 (10Bore-06MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.631
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
OVERALL LENGTH L IN	0.843
OVERALL LENGTH L2 IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-10-08

$16.49

Attribute: 0404-10-08 (10Bore-08MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	0.631
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.078
OVERALL LENGTH L2 IN	0.330
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1022
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-12-08

$16.15

Attribute: 0404-12-08 (12Bore-08MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.757
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.937
OVERALL LENGTH L IN	1.100
OVERALL LENGTH L2 IN	0.350
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.087
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-12-12

$21.66

Attribute: 0404-12-12 (12Bore-12MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.757
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.100
OVERALL LENGTH L2 IN	0.340
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.152
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-12-12-SS

$109.82

Attribute: 0404-12-12-SS (12Bore-12MP Strai...)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	0.757
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.100
OVERALL LENGTH L2 IN	0.340
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-16-12

$193.20

Attribute: 0404-16-12 (16Bore-12MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1.007
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.260
OVERALL LENGTH L2 IN	0.500
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.19
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-16-16

$40.01

Attribute: 0404-16-16 (16Bore-16MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1.007
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11 1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.312
OVERALL LENGTH L2 IN	0.380
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.272
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-16-16-SS

$317.98

Attribute: 0404-16-16-SS (16Bore-16MP Strai...)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1.007
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11 1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.312
OVERALL LENGTH L2 IN	0.380
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-20-16

$68.62

Attribute: 0404-20-16 (20Bore-16MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.258
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11 1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.688
OVERALL LENGTH L IN	1.376
OVERALL LENGTH L2 IN	0.440
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.248
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-20-20

$43.31

Attribute: 0404-20-20 (20Bore-20MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.258
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.688
OVERALL LENGTH L IN	1.406
OVERALL LENGTH L2 IN	0.440
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4312
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-20-20-SS

$414.46

Attribute: 0404-20-20-SS (20Bore-20MP Strai...)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1.258
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.688
OVERALL LENGTH L IN	1.406
OVERALL LENGTH L2 IN	0.440
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4312
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-24-16

$200.15

Attribute: 0404-24-16 (24Bore-16MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.508
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11 1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.750
OVERALL LENGTH L IN	1.375
OVERALL LENGTH L2 IN	0.500
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-24-20

$231.16

Attribute: 0404-24-20 (24Bore-20MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1-1/2 1-1/4
THREAD B1 DRILL IN	1.508
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.480
OVERALL LENGTH L2 IN	0.500
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5135
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-24-24

$245.19

Attribute: 0404-24-24 (24Bore-24MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.508
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1 1/2-11 1/2
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.500
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.66
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-24-24-SS

$461.08

Attribute: 0404-24-24-SS (24Bore-24MP Strai...)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1.508
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1 1/2-11 1/2
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.500
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.6006
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-32-32

$301.60

Attribute: 0404-32-32 (32Bore-32MP Straight)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	2.008
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11 1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.625
OVERALL LENGTH L IN	1.781
OVERALL LENGTH L2 IN	0.750
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

0404-32-32-SS

$515.77

Attribute: 0404-32-32-SS (32Bore-32MP Strai...)

Stock Status: True

THREAD B1 TYPE	BORE
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	2.008
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11 1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.625
OVERALL LENGTH L IN	1.781
OVERALL LENGTH L2 IN	0.750
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, Bore
Shape	Straight

ID	10142243
Category	Tube Fittings and Adapters

Description

Description

Variations (26)

0404-04-02

0404-04-02-SS

0404-04-04

0404-06-04

0404-06-04-SS

0404-06-06

0404-06-08

0404-08-06

0404-08-08

0404-10-06

0404-10-08

0404-12-08

0404-12-12

0404-12-12-SS

0404-16-12

0404-16-16

0404-16-16-SS

0404-20-16

0404-20-20

0404-20-20-SS

0404-24-16

0404-24-20

0404-24-24

0404-24-24-SS

0404-32-32

0404-32-32-SS

General Attributes

PDF Documents
