Description

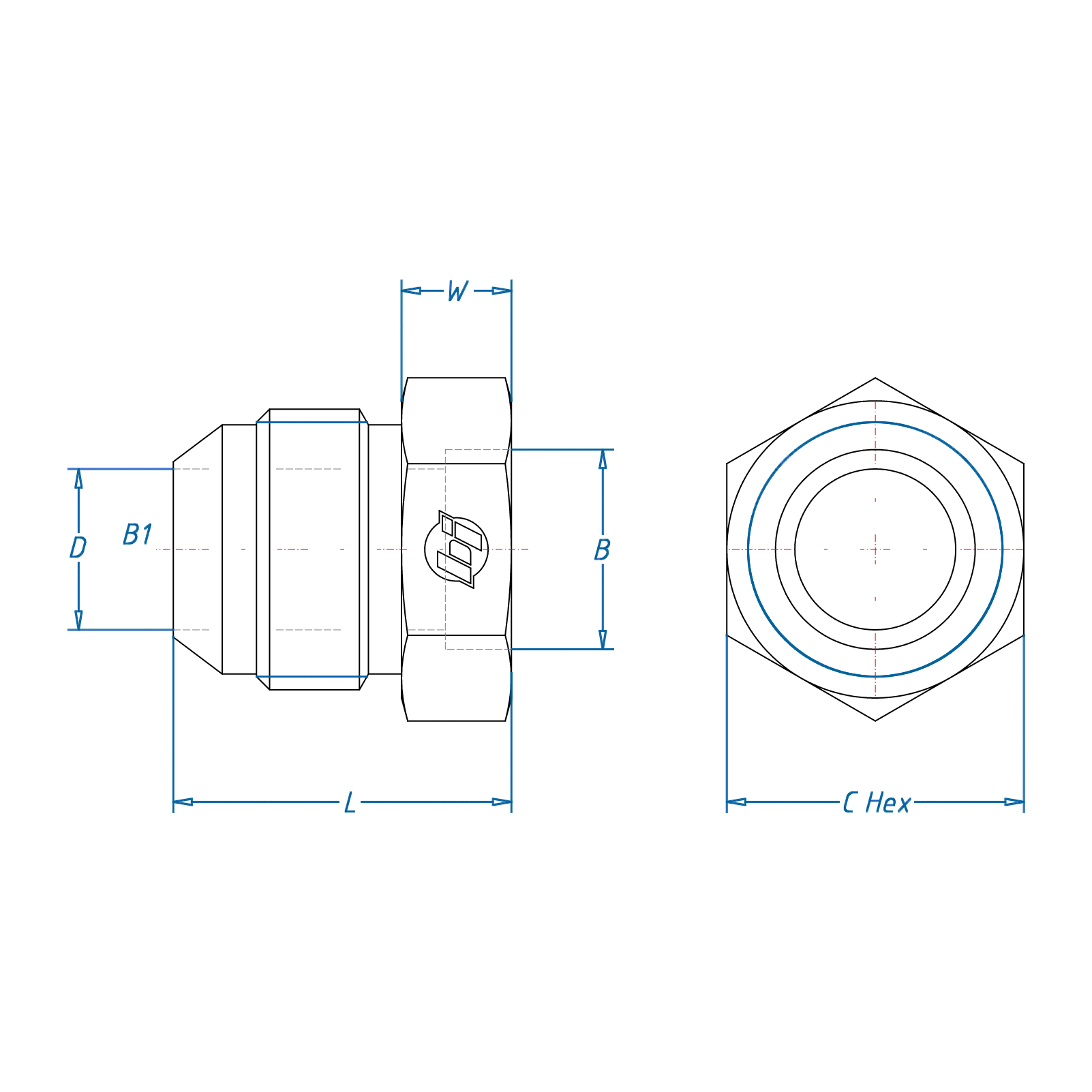

Bore-MJ Straight
Description
Variations (43)
0403-04-03-SS
$129.37Attribute: 0403-04-03-SS (04Bore-03MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/4 |
| THREAD B1 DRILL IN | 0.254 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-04-04
$4.18Attribute: 0403-04-04 (04Bore-04MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/4 |
| THREAD B1 DRILL IN | 0.254 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.500 |
| OVERALL LENGTH L IN | 0.800 |
| OVERALL LENGTH L2 IN | 0.250 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-04-04-SS
$52.42Attribute: 0403-04-04-SS (04Bore-04MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/4 |
| THREAD B1 DRILL IN | 0.254 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.500 |
| OVERALL LENGTH L IN | 0.800 |
| OVERALL LENGTH L2 IN | 0.250 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-05-04
$7.82Attribute: 0403-05-04 (05Bore-04MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/16-1/4 |
| THREAD B1 DRILL IN | 0.319 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.500 |
| OVERALL LENGTH L IN | 0.800 |
| OVERALL LENGTH L2 IN | 0.250 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.03 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-05-05
$12.01Attribute: 0403-05-05 (05Bore-05MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/16-5/16 |
| THREAD B1 DRILL IN | 0.319 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.800 |
| OVERALL LENGTH L2 IN | 0.250 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.03 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-05-05-SS
$144.58Attribute: 0403-05-05-SS (05Bore-05MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/16 |
| THREAD B1 DRILL IN | 0.319 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.800 |
| OVERALL LENGTH L2 IN | 0.250 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0332 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-06-06
$4.48Attribute: 0403-06-06 (06Bore-06MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/8-3/8 |
| THREAD B1 DRILL IN | 0.379 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| OVERALL LENGTH L IN | 0.840 |
| OVERALL LENGTH L2 IN | 0.284 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0406 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-06-06-SS
$65.96Attribute: 0403-06-06-SS (06Bore-06MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/8 |
| THREAD B1 DRILL IN | 0.381 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.625 |
| OVERALL LENGTH L IN | 0.840 |
| OVERALL LENGTH L2 IN | 0.284 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0437 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-06-08
$22.15Attribute: 0403-06-08 (06Bore-08MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/8-1/2 |
| THREAD B1 DRILL IN | 0.379 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 0.940 |
| OVERALL LENGTH L2 IN | 0.283 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.09 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-06-08-SS
$147.56Attribute: 0403-06-08-SS (06Bore-08MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/8 |
| THREAD B1 DRILL IN | 0.379 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 0.937 |
| OVERALL LENGTH L2 IN | 0.283 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-08-06
$14.86Attribute: 0403-08-06 (08Bore-06MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/2-3/8 |
| THREAD B1 DRILL IN | 0.504 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 0.940 |
| OVERALL LENGTH L2 IN | 0.384 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0413 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-08-08
$5.41Attribute: 0403-08-08 (08Bore-08MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/2-1/2 |
| THREAD B1 DRILL IN | 0.504 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 0.940 |
| OVERALL LENGTH L2 IN | 0.283 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0693 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-08-08-SS
$86.34Attribute: 0403-08-08-SS (08Bore-08MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/2 |
| THREAD B1 DRILL IN | 0.504 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.812 |
| OVERALL LENGTH L IN | 0.940 |
| OVERALL LENGTH L2 IN | 0.283 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.075 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-08-10
$34.22Attribute: 0403-08-10 (08Bore-10MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/2-5/8 |
| THREAD B1 DRILL IN | 0.506 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.937 |
| OVERALL LENGTH L IN | 1.093 |
| OVERALL LENGTH L2 IN | 0.310 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-10-08
$33.82Attribute: 0403-10-08 (10Bore-08MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/8-1/2 |
| THREAD B1 DRILL IN | 0.631 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.937 |
| OVERALL LENGTH L IN | 0.937 |
| OVERALL LENGTH L2 IN | 0.250 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0869 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-10-10
$8.47Attribute: 0403-10-10 (10Bore-10MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/8 |
| THREAD B1 DRILL IN | 0.631 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.937 |
| OVERALL LENGTH L IN | 1.100 |
| OVERALL LENGTH L2 IN | 0.342 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.112 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-10-10-SS
$88.51Attribute: 0403-10-10-SS (10Bore-10MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/8 |
| THREAD B1 DRILL IN | 0.631 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.937 |
| OVERALL LENGTH L IN | 1.100 |
| OVERALL LENGTH L2 IN | 0.342 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.1187 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-10-12
$45.54Attribute: 0403-10-12 (10Bore-12MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/8-3/4 |
| THREAD B1 DRILL IN | 0.631 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.280 |
| OVERALL LENGTH L2 IN | 0.412 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2187 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-12-08
$19.79Attribute: 0403-12-08 (12Bore-08MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/4-1/2 |
| THREAD B1 DRILL IN | 0.757 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.937 |
| OVERALL LENGTH L IN | 0.980 |
| OVERALL LENGTH L2 IN | 0.323 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.081 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-12-10
$31.01Attribute: 0403-12-10 (12Bore-10MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/4-5/8 |
| THREAD B1 DRILL IN | 0.756 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.938 |
| OVERALL LENGTH L IN | 1.100 |
| OVERALL LENGTH L2 IN | 0.380 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1062 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-12-12
$11.28Attribute: 0403-12-12 (12Bore-12MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/4-3/4 |
| THREAD B1 DRILL IN | 0.756 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.280 |
| OVERALL LENGTH L2 IN | 0.416 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1835 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-12-12-SS
$90.96Attribute: 0403-12-12-SS (12Bore-12MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/4 |
| THREAD B1 DRILL IN | 0.756 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.280 |
| OVERALL LENGTH L2 IN | 0.416 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.2 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-12-14-SS
$170.51Attribute: 0403-12-14-SS (12Bore-14MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/4 |
| THREAD B1 DRILL IN | 0.757 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-3/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.500 |
| OVERALL LENGTH L IN | 1.316 |
| OVERALL LENGTH L2 IN | 0.426 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-14-12-SS
$209.41Attribute: 0403-14-12-SS (14Bore-12MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 7/8-3/4 |
| THREAD B1 DRILL IN | 0.881 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.125 |
| OVERALL LENGTH L IN | 1.280 |
| OVERALL LENGTH L2 IN | 0.241 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-14-14
$31.75Attribute: 0403-14-14 (14Bore-14MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 7/8-7/8 |
| THREAD B1 DRILL IN | 0.881 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 3/16-12 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.250 |
| OVERALL LENGTH L IN | 1.312 |
| OVERALL LENGTH L2 IN | 0.422 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.235 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-16-12
$29.04Attribute: 0403-16-12 (16Bore-12MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-3/4 |
| THREAD B1 DRILL IN | 1.006 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.250 |
| OVERALL LENGTH L IN | 1.280 |
| OVERALL LENGTH L2 IN | 0.416 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1607 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-16-16
$14.37Attribute: 0403-16-16 (16Bore-16MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1 |
| THREAD B1 DRILL IN | 1.006 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.320 |
| OVERALL LENGTH L2 IN | 0.409 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-16-16-SS
$186.60Attribute: 0403-16-16-SS (16Bore-16MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1 |
| THREAD B1 DRILL IN | 1.006 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.375 |
| OVERALL LENGTH L IN | 1.320 |
| OVERALL LENGTH L2 IN | 0.409 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.2562 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-16-20
$45.48Attribute: 0403-16-20 (16Bore-20MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1 1-1/4 |
| THREAD B1 DRILL IN | 1.006 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 5/8-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.688 |
| OVERALL LENGTH L IN | 1.450 |
| OVERALL LENGTH L2 IN | 0.492 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.5687 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-20-16
$52.92Attribute: 0403-20-16 (20Bore-16MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 1-1 |
| THREAD B1 DRILL IN | 1.257 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.688 |
| OVERALL LENGTH L IN | 1.730 |
| OVERALL LENGTH L2 IN | 0.819 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.221 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-20-16-SS
$408.71Attribute: 0403-20-16-SS (20Bore-16MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 |
| THREAD B1 DRILL IN | 1.257 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.688 |
| OVERALL LENGTH L IN | 1.730 |
| OVERALL LENGTH L2 IN | 0.819 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.4937 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-20-20
$25.21Attribute: 0403-20-20 (20Bore-20MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 1-1/4 |
| THREAD B1 DRILL IN | 1.256 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.688 |
| OVERALL LENGTH L IN | 1.450 |
| OVERALL LENGTH L2 IN | 0.492 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.4307 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-20-20-SS
$473.09Attribute: 0403-20-20-SS (20Bore-20MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 |
| THREAD B1 DRILL IN | 1.256 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.688 |
| OVERALL LENGTH L IN | 1.450 |
| OVERALL LENGTH L2 IN | 0.492 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.425 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-20-24
$265.52Attribute: 0403-20-24 (20Bore-24MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 1-1/2 |
| THREAD B1 DRILL IN | 1.258 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.000 |
| OVERALL LENGTH L IN | 1.656 |
| OVERALL LENGTH L2 IN | 0.530 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.825 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-20-24-SS
$503.86Attribute: 0403-20-24-SS (20Bore-24MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 |
| THREAD B1 DRILL IN | 1.258 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.000 |
| OVERALL LENGTH L IN | 1.656 |
| OVERALL LENGTH L2 IN | 0.530 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-24-20
$247.94Attribute: 0403-24-20 (24Bore-20MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/2 1-1/4 |
| THREAD B1 DRILL IN | 1.506 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.000 |
| OVERALL LENGTH L IN | 1.450 |
| OVERALL LENGTH L2 IN | 0.492 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3613 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-24-20-SS
$549.39Attribute: 0403-24-20-SS (24Bore-20MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/2 |
| THREAD B1 DRILL IN | 1.506 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.000 |
| OVERALL LENGTH L IN | 1.450 |
| OVERALL LENGTH L2 IN | 0.492 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.5125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-24-24
$43.07Attribute: 0403-24-24 (24Bore-24MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/2 1-1/2 |
| THREAD B1 DRILL IN | 1.507 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.000 |
| OVERALL LENGTH L IN | 1.840 |
| OVERALL LENGTH L2 IN | 0.757 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.6 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-24-24-SS
$568.54Attribute: 0403-24-24-SS (24Bore-24MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/2 |
| THREAD B1 DRILL IN | 1.507 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1 7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.000 |
| OVERALL LENGTH L IN | 1.840 |
| OVERALL LENGTH L2 IN | 0.757 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.7125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-32-24-SS
$817.37Attribute: 0403-32-24-SS (32Bore-24MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 2 |
| THREAD B1 DRILL IN | 2.008 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.625 |
| OVERALL LENGTH L IN | 1.816 |
| OVERALL LENGTH L2 IN | 0.730 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-32-32
$148.02Attribute: 0403-32-32 (32Bore-32MJ Straight)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 2-2 |
| THREAD B1 DRILL IN | 2.008 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2 1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.625 |
| OVERALL LENGTH L IN | 2.160 |
| OVERALL LENGTH L2 IN | 0.830 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.44 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-32-32-SS
$1,054.08Attribute: 0403-32-32-SS (32Bore-32MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 2 |
| THREAD B1 DRILL IN | 2.008 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2 1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.625 |
| OVERALL LENGTH L IN | 2.160 |
| OVERALL LENGTH L2 IN | 0.830 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.475 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
0403-40-40-SS
$1,123.04Attribute: 0403-40-40-SS (40Bore-40MJ Strai...)
Stock Status: True
| THREAD B1 TYPE | BORE |
|---|---|
| THREAD B1 SIZE | TUBE OD 2-1/2-2-1/2 |
| THREAD B1 DRILL IN | 2.500 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3-12 |
| THREAD B2 DRILL IN | 2.318 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 2.250 |
| OVERALL LENGTH L IN | 2.225 |
| OVERALL LENGTH L2 IN | 1.115 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 2.2 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC, Bore |
|---|---|
| Shape | Straight |
PDF Documents
No PDF documents scraped.
