0318

0318-02

$4.97

Attribute: 0318-02 (02 JIC Tube Nut)

Stock Status: True

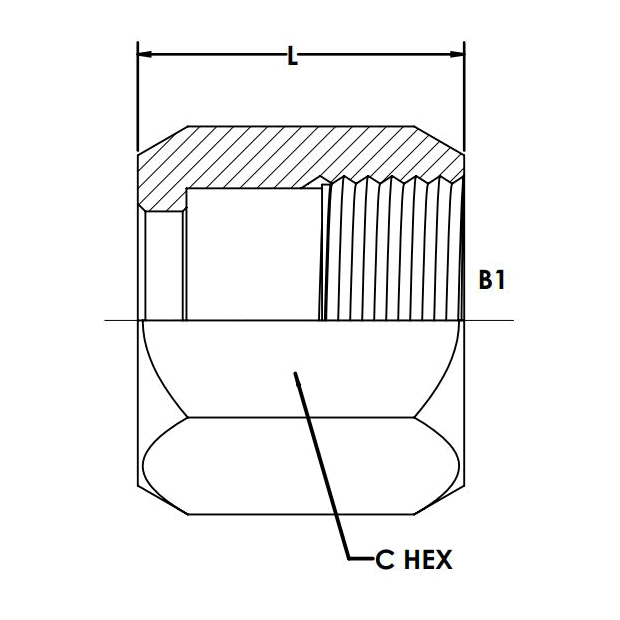

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.179
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.375
OVERALL LENGTH L IN	0.550
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0125
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.077

0318-02-SS

$10.14

Attribute: 0318-02-SS (02 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.179
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.375
OVERALL LENGTH L IN	0.550
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0125
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.077

0318-03

$2.76

Attribute: 0318-03 (03 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.241
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.610
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0187
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.117

0318-03-SS

$14.18

Attribute: 0318-03-SS (03 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.241
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.610
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.03
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.117

0318-04

$2.31

Attribute: 0318-04 (04 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.304
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.610
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0255
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.196

0318-04-SS

$9.69

Attribute: 0318-04-SS (04 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.304
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.610
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.03
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.196

0318-05

$4.38

Attribute: 0318-05 (05 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.373
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.680
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.032
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.266

0318-05-SS

$17.97

Attribute: 0318-05-SS (05 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.373
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.680
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.03
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.266

0318-06

$2.37

Attribute: 0318-06 (06 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.439
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.688
OVERALL LENGTH L IN	0.730
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.346

0318-06-SS

$15.50

Attribute: 0318-06-SS (06 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.439
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.688
OVERALL LENGTH L IN	0.730
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.346

0318-08

$3.05

Attribute: 0318-08 (08 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.568
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0675
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.651

0318-08-SS

$19.59

Attribute: 0318-08-SS (08 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.568
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.651

0318-10

$5.12

Attribute: 0318-10 (10 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.696
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	0.980
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.094
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.980

0318-10-SS

$53.16

Attribute: 0318-10-SS (10 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.696
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	0.980
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.07
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.980

0318-12

$6.99

Attribute: 0318-12 (12 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.832
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.030
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1767
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.609

0318-12-SS

$64.44

Attribute: 0318-12-SS (12 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.832
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.030
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.18
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.609

0318-14

$11.18

Attribute: 0318-14 (14 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.959
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.204
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.061

0318-14-SS

$91.56

Attribute: 0318-14-SS (14 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.959
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.061

0318-16

$8.81

Attribute: 0318-16 (16 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	1.087
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.130
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.23
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.543

0318-16-SS

$84.02

Attribute: 0318-16-SS (16 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	1.087
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.130
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.23
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.543

0318-20

$17.03

Attribute: 0318-20 (20 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.344
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.000
OVERALL LENGTH L IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.920

0318-20-SS

$169.83

Attribute: 0318-20-SS (20 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.344
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.000
OVERALL LENGTH L IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.534
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.920

0318-24

$27.02

Attribute: 0318-24 (24 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.614
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.250
OVERALL LENGTH L IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.7143
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.189

0318-24-SS

$243.26

Attribute: 0318-24-SS (24 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.614
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.250
OVERALL LENGTH L IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.68
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.189

0318-32

$94.66

Attribute: 0318-32 (32 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	2.164
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.875
OVERALL LENGTH L IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.25
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.465

0318-32-SS

$646.02

Attribute: 0318-32-SS (32 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	2.164
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.875
OVERALL LENGTH L IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.24
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.465

0318-40

$742.74

Attribute: 0318-40 (40 JIC Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	3-12
THREAD B1 DRILL IN	2.665
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	3.375
OVERALL LENGTH L IN	1.640
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	22.8
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	18.681

0318-40-SS

$2,347.18

Attribute: 0318-40-SS (40 JIC Tube Nut Stnl...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	3-12
THREAD B1 DRILL IN	3.180
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	3.375
OVERALL LENGTH L IN	1.640
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	18.681

ID	10142135
Category	Tube Fittings and Adapters

Description

Description

Variations (28)

0318-02

0318-02-SS

0318-03

0318-03-SS

0318-04

0318-04-SS

0318-05

0318-05-SS

0318-06

0318-06-SS

0318-08

0318-08-SS

0318-10

0318-10-SS

0318-12

0318-12-SS

0318-14

0318-14-SS

0318-16

0318-16-SS

0318-20

0318-20-SS

0318-24

0318-24-SS

0318-32

0318-32-SS

0318-40

0318-40-SS

General Attributes

PDF Documents

Connections	Tube
Shape	Nut
