0306-N

0306-N-02-SS

$26.14

Attribute: 0306-N-02-SS (02NWO Backup Nut S...)

Stock Status: True

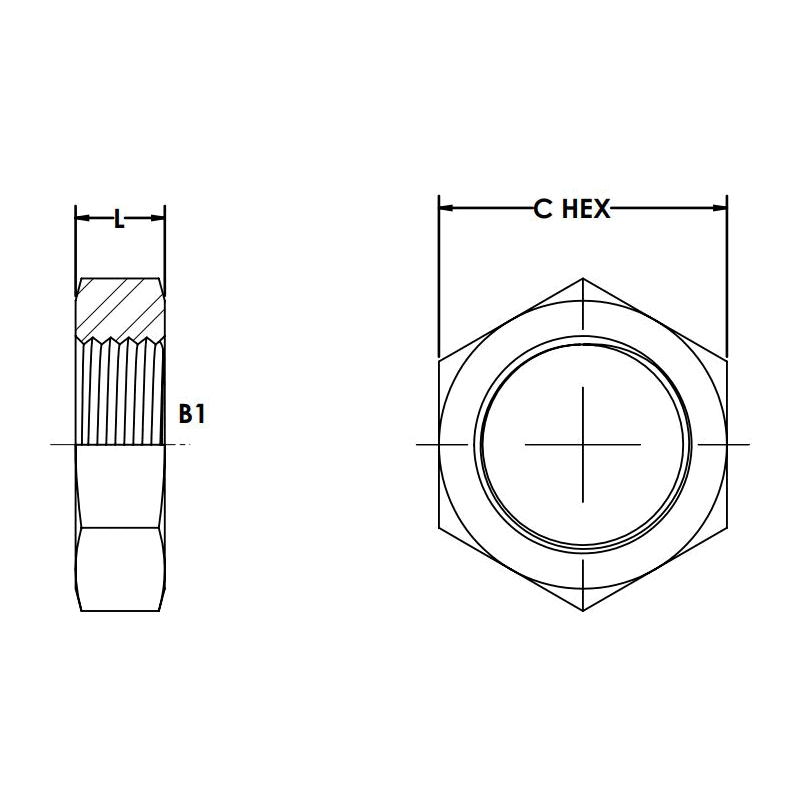

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/8
THREAD B1 DRILL IN	5/16-24
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0058
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-03

$2.37

Attribute: 0306-N-03 (03NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/16
THREAD B1 DRILL IN	3/8-24
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.500
OVERALL LENGTH L IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.008
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-03-SS

$26.78

Attribute: 0306-N-03-SS (03NWO Backup Nut S...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/16
THREAD B1 DRILL IN	3/8-24
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.500
OVERALL LENGTH L IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-04

$1.87

Attribute: 0306-N-04 (04NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	7/16-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0108
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-04-SS

$17.77

Attribute: 0306-N-04-SS (04NWO Backup Nut S...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	7/16-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0062
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-05

$2.01

Attribute: 0306-N-05 (05NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	1/2-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.015
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-05-SS

$19.10

Attribute: 0306-N-05-SS (05NWO Backup Nut S...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	1/2-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-06

$2.51

Attribute: 0306-N-06 (06NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	9/16-18
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.687
OVERALL LENGTH L IN	0.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-06-SS

$18.31

Attribute: 0306-N-06-SS (06NWO Backup Nut S...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	9/16-18
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.687
OVERALL LENGTH L IN	0.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0125
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-08

$3.00

Attribute: 0306-N-08 (08NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	3/4-16
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.005
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-08-SS

$19.14

Attribute: 0306-N-08-SS (08NWO Backup Nut S...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	3/4-16
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.310
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-10

$4.33

Attribute: 0306-N-10 (10NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	7/8-14
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	0.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0333
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-10-SS

$19.34

Attribute: 0306-N-10-SS (10NWO Backup Nut S...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	7/8-14
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	0.360
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0312
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-12

$6.11

Attribute: 0306-N-12 (12NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	1 1/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0637
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-12-SS

$27.27

Attribute: 0306-N-12-SS (12NWO Backup Nut S...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	1 1/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-14

$6.79

Attribute: 0306-N-14 (14NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 7/8
THREAD B1 DRILL IN	1 3/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.375
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.07
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-16

$7.24

Attribute: 0306-N-16 (16NWO Backup Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1 5/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.118
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-N-16-SS

$47.59

Attribute: 0306-N-16-SS (16NWO Backup Nut S...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1 5/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	Other
Shape	Nut

ID	10142114
Category	Tube Fittings and Adapters

Description

Description

Variations (18)

0306-N-02-SS

0306-N-03

0306-N-03-SS

0306-N-04

0306-N-04-SS

0306-N-05

0306-N-05-SS

0306-N-06

0306-N-06-SS

0306-N-08

0306-N-08-SS

0306-N-10

0306-N-10-SS

0306-N-12

0306-N-12-SS

0306-N-14

0306-N-16

0306-N-16-SS
