0306

0306-02

$2.46

Attribute: 0306-02 (02JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/8
THREAD B1 DRILL IN	5/16-24
THREAD B1 SPECIFICATION	SAE J514

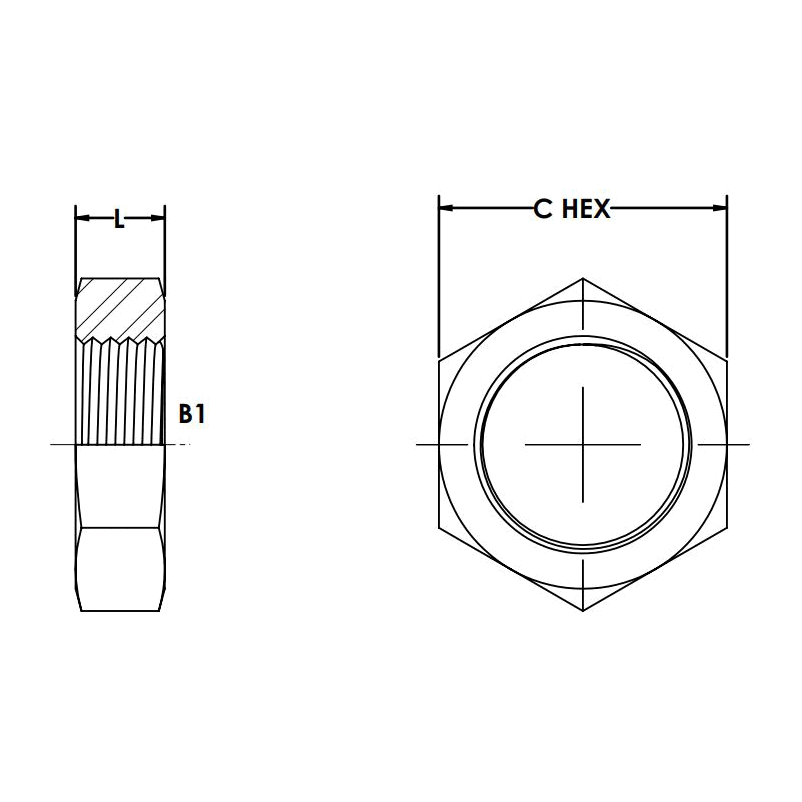

C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0105
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-02-SS

$13.15

Attribute: 0306-02-SS (02JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/8
THREAD B1 DRILL IN	5/16-24
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-03

$2.46

Attribute: 0306-03 (03JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/16
THREAD B1 DRILL IN	3/8-24
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0104
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-03-SS

$15.40

Attribute: 0306-03-SS (03JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/16
THREAD B1 DRILL IN	3/8-24
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.01
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-04

$1.23

Attribute: 0306-04 (04JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	7/16-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.687
OVERALL LENGTH L IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0171
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-04-SS

$10.83

Attribute: 0306-04-SS (04JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	7/16-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.687
OVERALL LENGTH L IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.02
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-05

$2.21

Attribute: 0306-05 (05JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	1/2-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.750
OVERALL LENGTH L IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0217
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-05-SS

$17.47

Attribute: 0306-05-SS (05JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	1/2-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.750
OVERALL LENGTH L IN	0.280
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-06

$1.53

Attribute: 0306-06 (06JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	9/16-18
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.812
OVERALL LENGTH L IN	0.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-06-SS

$14.37

Attribute: 0306-06-SS (06JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	9/16-18
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.812
OVERALL LENGTH L IN	0.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.02
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-08

$1.87

Attribute: 0306-08 (08JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	3/4-16
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	0.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0427
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-08-SS

$22.60

Attribute: 0306-08-SS (08JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	3/4-16
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	0.310
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-10

$2.81

Attribute: 0306-10 (10JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	7/8-14
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.125
OVERALL LENGTH L IN	0.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0509
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-10-SS

$30.96

Attribute: 0306-10-SS (10JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	7/8-14
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.125
OVERALL LENGTH L IN	0.360
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.06
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-12

$3.88

Attribute: 0306-12 (12JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	1 1/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.375
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.093
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-12-SS

$39.93

Attribute: 0306-12-SS (12JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	1 1/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.375
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-14

$5.37

Attribute: 0306-14 (14JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 7/8
THREAD B1 DRILL IN	1 3/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.126
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-14-SS

$90.92

Attribute: 0306-14-SS (14JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 7/8
THREAD B1 DRILL IN	1 3/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-16

$5.47

Attribute: 0306-16 (16JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1 5/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.625
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1266
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-16-SS

$62.22

Attribute: 0306-16-SS (16JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1 5/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.625
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.113
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-20

$8.47

Attribute: 0306-20 (20JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1 5/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.875
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1228
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-20-SS

$74.92

Attribute: 0306-20-SS (20JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1 5/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.875
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-24

$11.12

Attribute: 0306-24 (24JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1 7/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.125
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.144
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-24-SS

$132.61

Attribute: 0306-24-SS (24JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1 7/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.125
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.141
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-32

$26.04

Attribute: 0306-32 (32JIC Bulkhead Lock Nut)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	2-1/2-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.750
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1867
CALIFORNIA RESIDENTS	PROP-65 WARNING

0306-32-SS

$169.09

Attribute: 0306-32-SS (32JIC Bulkhead Lock ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	2-1/2-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.750
OVERALL LENGTH L IN	0.410
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.19
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	Other
Shape	Nut

ID	10142085
Category	Tube Fittings and Adapters

Description

Description

Variations (26)

0306-02

0306-02-SS

0306-03

0306-03-SS

0306-04

0306-04-SS

0306-05

0306-05-SS

0306-06

0306-06-SS

0306-08

0306-08-SS

0306-10

0306-10-SS

0306-12

0306-12-SS

0306-14

0306-14-SS

0306-16

0306-16-SS

0306-20

0306-20-SS

0306-24

0306-24-SS

0306-32

0306-32-SS

General Attributes

PDF Documents
