Description
JIC CAP
Description
Variations (28)
0304-C-02
$4.63Attribute: 0304-C-02 (02 JIC Cap)
Stock Status: True

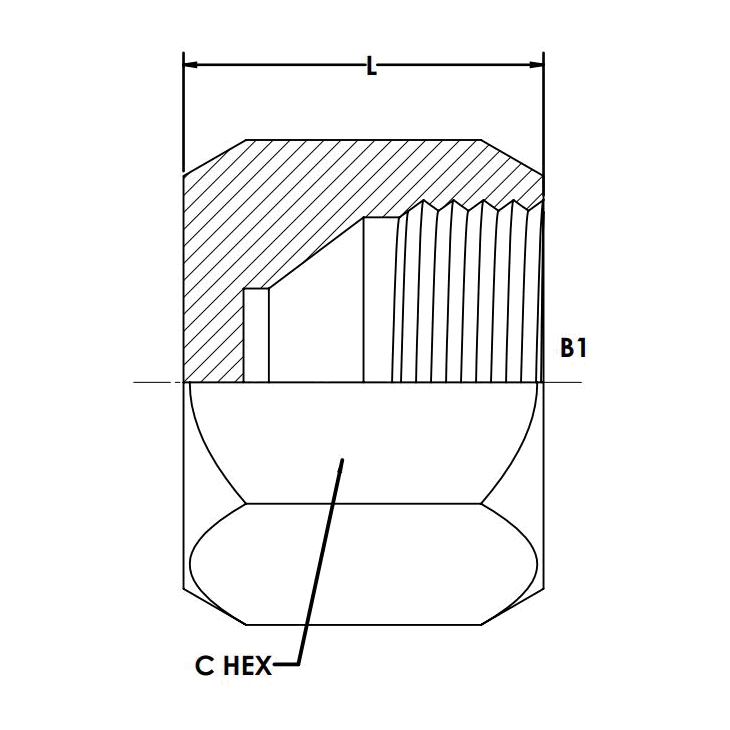

| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/8 |
| THREAD B1 DRILL IN | 5/16-24 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.375 |
| OVERALL LENGTH L IN | 0.500 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.070 |
0304-C-02-SS
$22.05Attribute: 0304-C-02-SS (02 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/8 |
| THREAD B1 DRILL IN | 5/16-24 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.375 |
| OVERALL LENGTH L IN | 0.500 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.02 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.070 |
0304-C-03
$5.47Attribute: 0304-C-03 (03 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/16 |
| THREAD B1 DRILL IN | 3/8-24 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.437 |
| OVERALL LENGTH L IN | 0.560 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0187 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.107 |
0304-C-03-SS
$25.65Attribute: 0304-C-03-SS (03 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/16 |
| THREAD B1 DRILL IN | 3/8-24 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.437 |
| OVERALL LENGTH L IN | 0.560 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.02 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.107 |
0304-C-04
$2.41Attribute: 0304-C-04 (04 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/4 |
| THREAD B1 DRILL IN | 7/16-20 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 0.590 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0304 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.186 |
0304-C-04-SS
$22.30Attribute: 0304-C-04-SS (04 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/4 |
| THREAD B1 DRILL IN | 7/16-20 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 0.590 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0341 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.186 |
0304-C-05
$3.10Attribute: 0304-C-05 (05 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUDE OD 5/16 |
| THREAD B1 DRILL IN | 1/2-20 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 0.610 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.036 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.238 |
0304-C-05-SS
$32.43Attribute: 0304-C-05-SS (05 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUDE OD 5/16 |
| THREAD B1 DRILL IN | 1/2-20 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 0.610 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.03 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.238 |
0304-C-06
$2.86Attribute: 0304-C-06 (06 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/8 |
| THREAD B1 DRILL IN | 9/16-18 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 0.630 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0434 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.297 |
0304-C-06-SS
$32.88Attribute: 0304-C-06-SS (06 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/8 |
| THREAD B1 DRILL IN | 9/16-18 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 0.630 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.04 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.297 |
0304-C-08
$5.27Attribute: 0304-C-08 (08 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/2 |
| THREAD B1 DRILL IN | 3/4-16 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 0.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.0802 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.574 |
0304-C-08-SS
$36.97Attribute: 0304-C-08-SS (08 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/2 |
| THREAD B1 DRILL IN | 3/4-16 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 0.750 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.574 |
0304-C-10
$5.61Attribute: 0304-C-10 (10 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/8 |
| THREAD B1 DRILL IN | 7/8-14 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 0.840 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1073 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.840 |
0304-C-10-SS
$75.41Attribute: 0304-C-10-SS (10 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/8 |
| THREAD B1 DRILL IN | 7/8-14 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 0.840 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.07 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.840 |
0304-C-12
$7.04Attribute: 0304-C-12 (12 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/4 |
| THREAD B1 DRILL IN | 1-1/16-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 0.910 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1838 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.422 |
0304-C-12-SS
$94.56Attribute: 0304-C-12-SS (12 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/4 |
| THREAD B1 DRILL IN | 1-1/16-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 0.910 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.18 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.422 |
0304-C-14
$13.98Attribute: 0304-C-14 (14 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 7/8 |
| THREAD B1 DRILL IN | 1-3/16-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 0.970 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.244 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.834 |
0304-C-14-SS
$264.49Attribute: 0304-C-14-SS (14 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 7/8 |
| THREAD B1 DRILL IN | 1-3/16-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 0.970 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.245 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.834 |
0304-C-16
$10.58Attribute: 0304-C-16 (16 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1 |
| THREAD B1 DRILL IN | 1-5/16-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 1.020 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2911 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.295 |
0304-C-16-SS
$144.03Attribute: 0304-C-16-SS (16 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1 |
| THREAD B1 DRILL IN | 1-5/16-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 1.500 |
| OVERALL LENGTH L IN | 1.020 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.23 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.295 |
0304-C-20
$20.93Attribute: 0304-C-20 (20 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 |
| THREAD B1 DRILL IN | 1-5/8-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 2.000 |
| OVERALL LENGTH L IN | 1.060 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.55 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.240 |
0304-C-20-SS
$222.45Attribute: 0304-C-20-SS (20 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 |
| THREAD B1 DRILL IN | 1-5/8-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 2.000 |
| OVERALL LENGTH L IN | 1.060 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.534 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.240 |
0304-C-24
$38.14Attribute: 0304-C-24 (24 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/2 |
| THREAD B1 DRILL IN | 1-7/8-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 2.250 |
| OVERALL LENGTH L IN | 1.190 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.8 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 6.024 |
0304-C-24-SS
$375.13Attribute: 0304-C-24-SS (24 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/2 |
| THREAD B1 DRILL IN | 1-7/8-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 2.250 |
| OVERALL LENGTH L IN | 1.190 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.69 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 6.024 |
0304-C-32
$121.68Attribute: 0304-C-32 (32 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUDE OD 2 |
| THREAD B1 DRILL IN | 2-1/2-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 2.880 |
| OVERALL LENGTH L IN | 1.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.345 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 11.944 |
0304-C-32-SS
$590.74Attribute: 0304-C-32-SS (32 JIC Cap Stnls)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUDE OD 2 |
| THREAD B1 DRILL IN | 2-1/2-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 2.875 |
| OVERALL LENGTH L IN | 1.440 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.448 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 11.903 |
0304-C-40
$671.61Attribute: 0304-C-40 (40 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 2-1/2 |
| THREAD B1 DRILL IN | 3-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 3.500 |
| OVERALL LENGTH L IN | 1.220 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.8687 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 14.945 |
0304-C-48
$1,652.30Attribute: 0304-C-48 (48 JIC Cap)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | TUBE OD 3 |
| THREAD B1 DRILL IN | 3-1/2-12 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 4.000 |
| OVERALL LENGTH L IN | 1.220 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 2.4 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 19.520 |
General Attributes
| Connections | Other |
|---|---|
| Shape | Cap |
PDF Documents
Download CAD and Drawings
Open PDF
