Tube Fittings and Adapters

0304

Scraped 2026-02-15 08:27:50

Description

Standard Nut

Variations (14)

0304-03

$3.54

Attribute: 0304-03 (03 JIC Long Tube Nut)

Stock Status: True

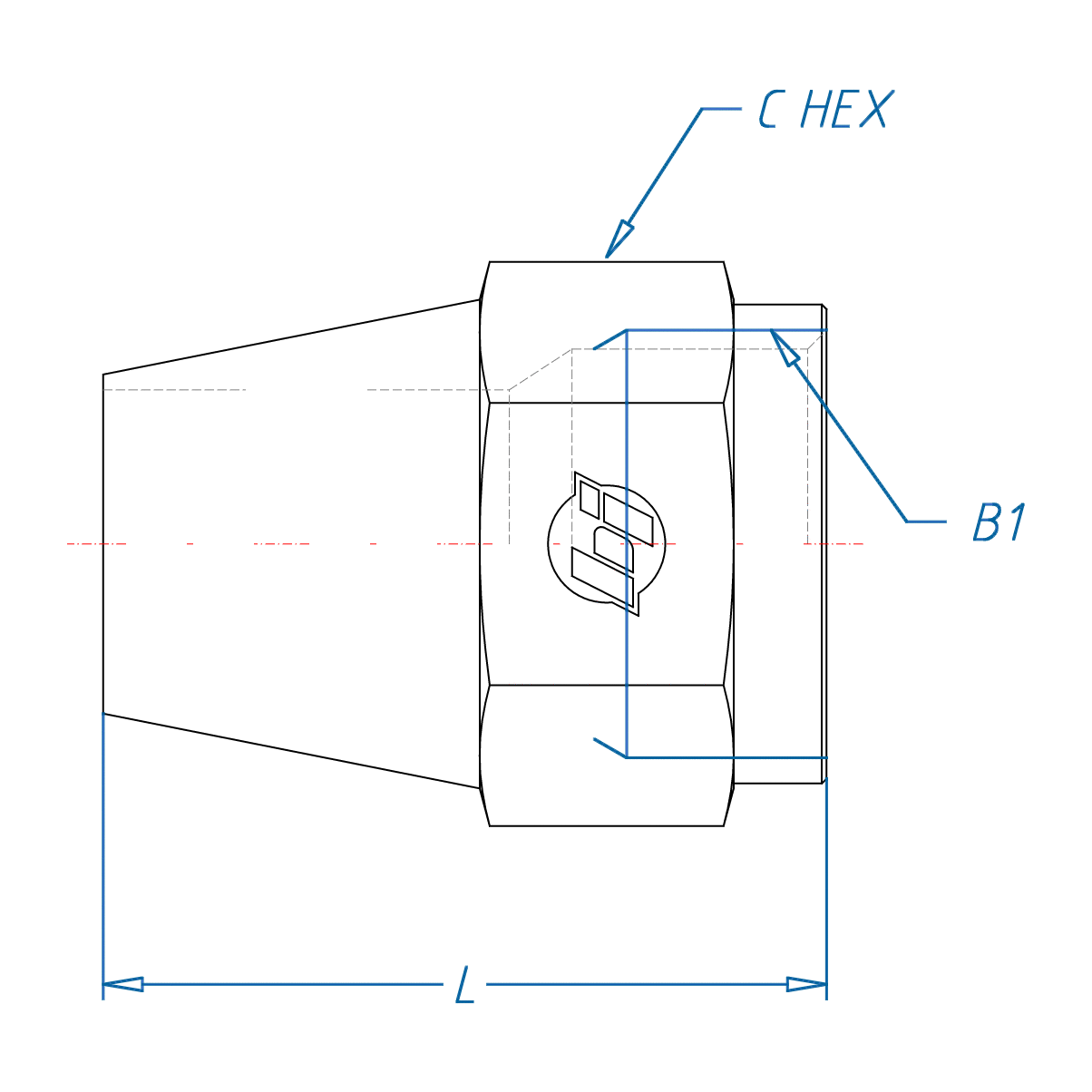

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 3/16
THREAD B1 DRILL IN	3/8-24
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.940
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-04

$3.70

Attribute: 0304-04 (04 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	7/16-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-04-SS

$156.13

Attribute: 0304-04-SS (04 JIC Long Tube Nut...)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	7/16-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-05

$5.02

Attribute: 0304-05 (05 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	1/2-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.060
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-06

$4.38

Attribute: 0304-06 (06 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	9/16-18
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.058
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-08

$8.57

Attribute: 0304-08 (08 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	3/4-16
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0927
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-10

$9.41

Attribute: 0304-10 (10 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	7/8-14
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.480
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-12

$25.74

Attribute: 0304-12 (12 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	1 1/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.660
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.236
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-14

$79.84

Attribute: 0304-14 (14 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 7/8
THREAD B1 DRILL IN	1 3/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.810
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.28
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-16

$36.13

Attribute: 0304-16 (16 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1-5/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.940
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3533
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-16-SS

$161.65

Attribute: 0304-16-SS (16 JIC Long Tube Nut...)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1 5/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.940
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3625
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-20

$63.35

Attribute: 0304-20 (20 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1 5/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.190
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.77
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-24

$147.97

Attribute: 0304-24 (24 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1-7/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.24
CALIFORNIA RESIDENTS	PROP-65 WARNING

0304-32

$187.64

Attribute: 0304-32 (32 JIC Long Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC LONG TUBE NUT
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	2 1/2-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.750
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.62
CALIFORNIA RESIDENTS	PROP-65 WARNING

General Attributes

Connections	Other
Shape	Nut
