0302

$0.00

Attribute: 0302-04 (04 JIC Short Tube Nut)

Stock Status: True

0302-04-SS

$87.58

Attribute: 0302-04-SS (04 JIC Short Tube Nu...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1/4
THREAD B1 DRILL IN	7/16-20
THREAD B1 SPECIFICATION	SAE J514

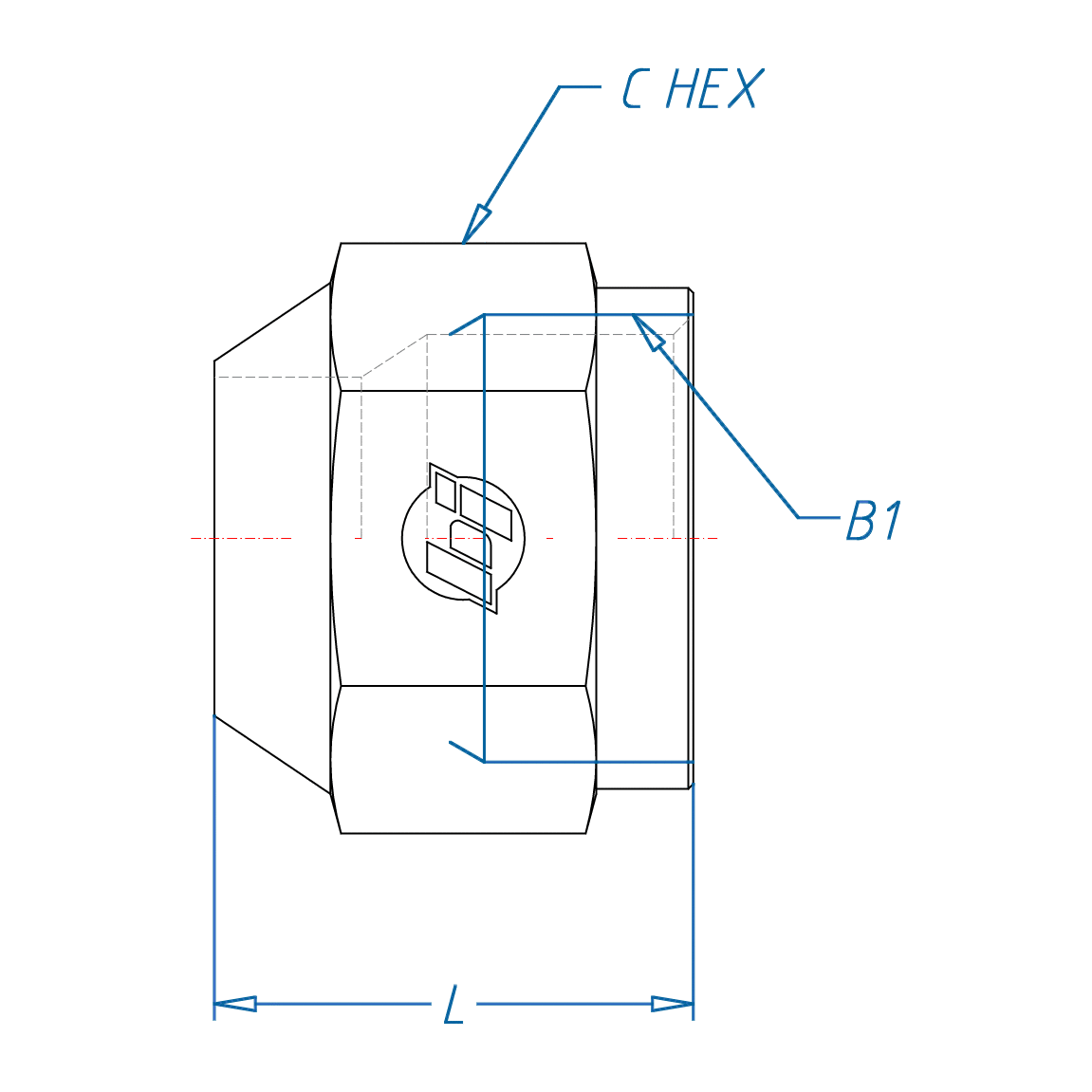

C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.593
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-05

$6.45

Attribute: 0302-05 (05 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 5/16
THREAD B1 DRILL IN	1/2-20
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.593
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.03
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-06

$5.17

Attribute: 0302-06 (06 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	9/16-18
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.687
OVERALL LENGTH L IN	0.656
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.03
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-06-SS

$95.20

Attribute: 0302-06-SS (06 JIC Short Tube Nu...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 3/8
THREAD B1 DRILL IN	9/16-18
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.687
OVERALL LENGTH L IN	0.656
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-08

$6.30

Attribute: 0302-08 (08 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	3/4-16
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.812
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.06
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-08-SS

$104.72

Attribute: 0302-08-SS (08 JIC Short Tube Nu...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1/2
THREAD B1 DRILL IN	3/4-16
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.812
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-10

$14.42

Attribute: 0302-10 (10 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 5/8
THREAD B1 DRILL IN	7/8-14
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	0.937
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-12

$22.00

Attribute: 0302-12 (12 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	1 1/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.140
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1829
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-12-SS

$154.23

Attribute: 0302-12-SS (12 JIC Short Tube Nu...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 3/4
THREAD B1 DRILL IN	1 1/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.140
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-14

$28.45

Attribute: 0302-14 (14 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 7/8
THREAD B1 DRILL IN	1 3/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.203
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.22
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-16

$22.74

Attribute: 0302-16 (16 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1 5/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.281
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-16-SS

$201.81

Attribute: 0302-16-SS (16 JIC Short Tube Nu...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1
THREAD B1 DRILL IN	1 5/16-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.281
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-20

$42.04

Attribute: 0302-20 (20 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1 5/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.000
OVERALL LENGTH L IN	1.437
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5867
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-20-SS

$200.79

Attribute: 0302-20-SS (20 JIC Short Tube Nu...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B1 DRILL IN	1 5/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.000
OVERALL LENGTH L IN	1.437
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-24

$78.37

Attribute: 0302-24 (24 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1 7/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.250
OVERALL LENGTH L IN	1.562
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.74
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-24-SS

$260.83

Attribute: 0302-24-SS (24 JIC Short Tube Nu...)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B1 DRILL IN	1 7/8-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.250
OVERALL LENGTH L IN	1.562
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

0302-32

$718.73

Attribute: 0302-32 (32 JIC Short Tube Nut)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	TUBE OD 2
THREAD B1 DRILL IN	2 1/2-12
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	Other
Shape	Nut

ID	10142017
Category	Tube Fittings and Adapters
