Description

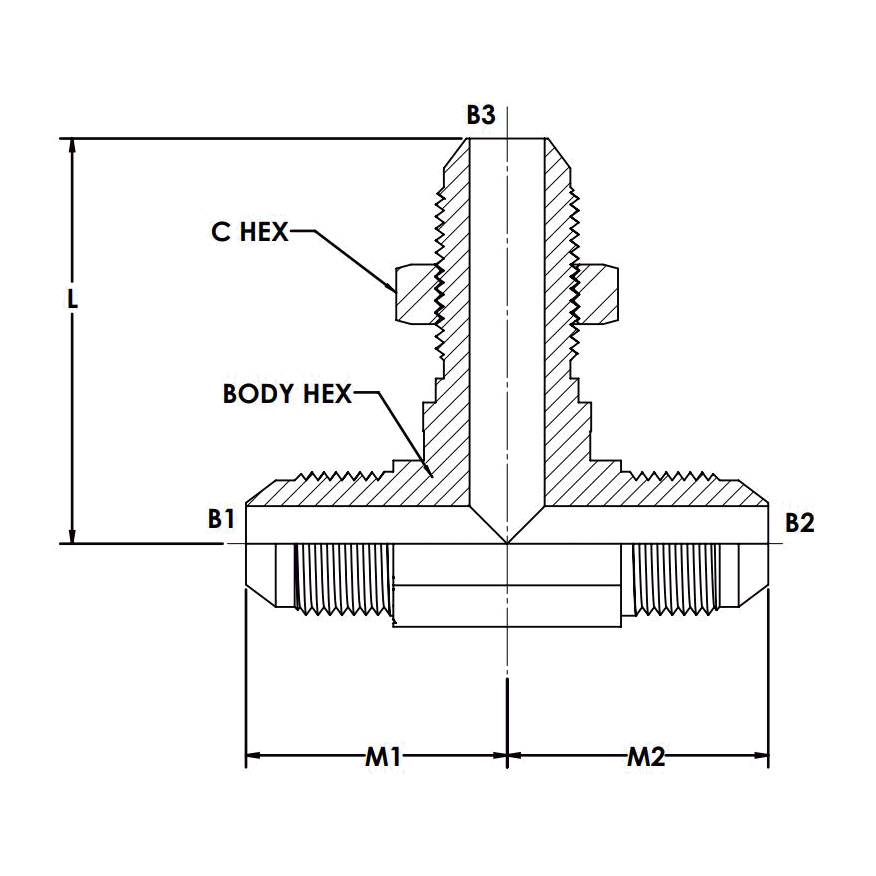

MJ-MJ-MJ Bulkhead Branch Tee With Locknut
Description
Variations (34)
2703-LN-03-03-03-FG
$20.67Attribute: 2703-LN-03-03-03-FG (03MJ-03MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/8-24 |
| THREAD 3 DRILL IN | 0.125 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 1.880 |
| OVERALL LENGTH L2 IN | 1.500 |
| CENTERLINE LENGTH M IN | 0.940 |
| CENTERLINE LENGTH M2 IN | 0.940 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1041 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-03-03-03-FG-BB
$86.73Attribute: 2703-LN-03-03-03-FG-BB (03MJ-03M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/8-24 |
| THREAD 3 DRILL IN | 0.125 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03-BB |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 1.880 |
| OVERALL LENGTH L2 IN | 1.500 |
| CENTERLINE LENGTH M IN | 0.940 |
| CENTERLINE LENGTH M2 IN | 0.940 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1041 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-03-03-03-SS
$106.28Attribute: 2703-LN-03-03-03-SS (03MJ-03MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/8-24 |
| THREAD 3 DRILL IN | 0.125 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-03-SS |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 1.880 |
| OVERALL LENGTH L2 IN | 1.500 |
| CENTERLINE LENGTH M IN | 0.940 |
| CENTERLINE LENGTH M2 IN | 0.940 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.21 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-04-04-04-FG
$20.08Attribute: 2703-LN-04-04-04-FG (04MJ-04MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04 |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 1.940 |
| OVERALL LENGTH L2 IN | 1.590 |
| CENTERLINE LENGTH M IN | 0.970 |
| CENTERLINE LENGTH M2 IN | 0.970 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1306 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-04-04-04-FG-BB
$70.95Attribute: 2703-LN-04-04-04-FG-BB (04MJ-04M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-BB |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 1.940 |
| OVERALL LENGTH L2 IN | 1.590 |
| CENTERLINE LENGTH M IN | 0.970 |
| CENTERLINE LENGTH M2 IN | 0.970 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1231 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-04-04-04-SS
$127.73Attribute: 2703-LN-04-04-04-SS (04MJ-04MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-04-SS |
| BODY HEX IN | 0.438 |
| C HEX 1 IN | 0.687 |
| OVERALL LENGTH L IN | 1.940 |
| OVERALL LENGTH L2 IN | 1.590 |
| CENTERLINE LENGTH M IN | 0.970 |
| CENTERLINE LENGTH M2 IN | 0.970 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.02 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-04-04-06-FG
$27.96Attribute: 2703-LN-04-04-06-FG (04MJ-04MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.160 |
| OVERALL LENGTH L2 IN | 1.810 |
| CENTERLINE LENGTH M IN | 1.080 |
| CENTERLINE LENGTH M2 IN | 1.080 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2007 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-05-05-05-FG
$47.11Attribute: 2703-LN-05-05-05-FG (05MJ-05MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1/2-20 |
| THREAD 3 DRILL IN | 0.234 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-05 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 2.120 |
| OVERALL LENGTH L2 IN | 1.720 |
| CENTERLINE LENGTH M IN | 1.060 |
| CENTERLINE LENGTH M2 IN | 1.060 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1717 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-05-05-05-FG-BB
$241.55Attribute: 2703-LN-05-05-05-FG-BB (05MJ-05M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1/2-20 |
| THREAD 3 DRILL IN | 0.234 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-05-BB |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 2.120 |
| OVERALL LENGTH L2 IN | 1.720 |
| CENTERLINE LENGTH M IN | 1.060 |
| CENTERLINE LENGTH M2 IN | 1.060 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1717 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-05-05-05-SS
$314.66Attribute: 2703-LN-05-05-05-SS (05MJ-05MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1/2-20 |
| THREAD 3 DRILL IN | 0.234 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-05-SS |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.750 |
| OVERALL LENGTH L IN | 2.120 |
| OVERALL LENGTH L2 IN | 1.720 |
| CENTERLINE LENGTH M IN | 1.060 |
| CENTERLINE LENGTH M2 IN | 1.060 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-06-06-06-FG
$24.67Attribute: 2703-LN-06-06-06-FG (06MJ-06MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.180 |
| OVERALL LENGTH L2 IN | 1.810 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2007 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-06-06-06-FG-BB
$79.85Attribute: 2703-LN-06-06-06-FG-BB (06MJ-06M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06-BB |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.180 |
| OVERALL LENGTH L2 IN | 1.810 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.2007 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-06-06-06-SS
$240.12Attribute: 2703-LN-06-06-06-SS (06MJ-06MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-06-SS |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.812 |
| OVERALL LENGTH L IN | 2.180 |
| OVERALL LENGTH L2 IN | 1.810 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.02 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-06-06-08-FG
$45.87Attribute: 2703-LN-06-06-08-FG (06MJ-06MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.280 |
| OVERALL LENGTH L2 IN | 2.110 |
| CENTERLINE LENGTH M IN | 1.140 |
| CENTERLINE LENGTH M2 IN | 1.140 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-08-08-08-FG
$38.14Attribute: 2703-LN-08-08-08-FG (08MJ-08MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.720 |
| OVERALL LENGTH L2 IN | 2.110 |
| CENTERLINE LENGTH M IN | 1.360 |
| CENTERLINE LENGTH M2 IN | 1.360 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3962 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-08-08-08-FG-BB
$120.41Attribute: 2703-LN-08-08-08-FG-BB (08MJ-08M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-BB |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.720 |
| OVERALL LENGTH L2 IN | 2.110 |
| CENTERLINE LENGTH M IN | 1.360 |
| CENTERLINE LENGTH M2 IN | 1.360 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.3962 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-08-08-08-SS
$329.17Attribute: 2703-LN-08-08-08-SS (08MJ-08MJ-0...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08-SS |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 1.000 |
| OVERALL LENGTH L IN | 2.720 |
| OVERALL LENGTH L2 IN | 2.110 |
| CENTERLINE LENGTH M IN | 1.360 |
| CENTERLINE LENGTH M2 IN | 1.360 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.04 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-08-08-10-FG
$56.09Attribute: 2703-LN-08-08-10-FG (08MJ-08MJ-1...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 2.660 |
| OVERALL LENGTH L2 IN | 2.390 |
| CENTERLINE LENGTH M IN | 1.330 |
| CENTERLINE LENGTH M2 IN | 1.330 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-08-08-12-SS
$500.87Attribute: 2703-LN-08-08-12-SS (08MJ-08MJ-1...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12-SS |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 2.840 |
| OVERALL LENGTH L2 IN | 2.670 |
| CENTERLINE LENGTH M IN | 1.420 |
| CENTERLINE LENGTH M2 IN | 1.420 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-10-10-10-FG
$57.59Attribute: 2703-LN-10-10-10-FG (10MJ-10MJ-1...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 3.120 |
| OVERALL LENGTH L2 IN | 2.390 |
| CENTERLINE LENGTH M IN | 1.560 |
| CENTERLINE LENGTH M2 IN | 1.560 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5977 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-10-10-10-FG-BB
$256.42Attribute: 2703-LN-10-10-10-FG-BB (10MJ-10M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-10-BB |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 1.125 |
| OVERALL LENGTH L IN | 3.120 |
| OVERALL LENGTH L2 IN | 2.390 |
| CENTERLINE LENGTH M IN | 1.560 |
| CENTERLINE LENGTH M2 IN | 1.560 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.5977 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-12-12-12-FG
$81.12Attribute: 2703-LN-12-12-12-FG (12MJ-12MJ-1...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 3.560 |
| OVERALL LENGTH L2 IN | 2.670 |
| CENTERLINE LENGTH M IN | 1.780 |
| CENTERLINE LENGTH M2 IN | 1.780 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.9492 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-12-12-12-FG-BB
$251.00Attribute: 2703-LN-12-12-12-FG-BB (12MJ-12M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12-BB |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 3.560 |
| OVERALL LENGTH L2 IN | 2.670 |
| CENTERLINE LENGTH M IN | 1.780 |
| CENTERLINE LENGTH M2 IN | 1.780 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.9492 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-12-12-12-SS
$487.32Attribute: 2703-LN-12-12-12-SS (12MJ-12MJ-1...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-12-SS |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.375 |
| OVERALL LENGTH L IN | 3.560 |
| OVERALL LENGTH L2 IN | 2.670 |
| CENTERLINE LENGTH M IN | 1.780 |
| CENTERLINE LENGTH M2 IN | 1.780 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-16-16-16-FG
$103.76Attribute: 2703-LN-16-16-16-FG (16MJ-16MJ-1...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.880 |
| OVERALL LENGTH L2 IN | 2.800 |
| CENTERLINE LENGTH M IN | 1.940 |
| CENTERLINE LENGTH M2 IN | 1.940 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.3328 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-16-16-16-FG-BB
$863.41Attribute: 2703-LN-16-16-16-FG-BB (16MJ-16M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16-BB |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.880 |
| OVERALL LENGTH L2 IN | 2.800 |
| CENTERLINE LENGTH M IN | 1.940 |
| CENTERLINE LENGTH M2 IN | 1.940 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 1.3328 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-16-16-16-SS
$859.75Attribute: 2703-LN-16-16-16-SS (16MJ-16MJ-1...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-16-SS |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.625 |
| OVERALL LENGTH L IN | 3.880 |
| OVERALL LENGTH L2 IN | 2.800 |
| CENTERLINE LENGTH M IN | 1.940 |
| CENTERLINE LENGTH M2 IN | 1.940 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.113 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-20-20-20-FG
$171.10Attribute: 2703-LN-20-20-20-FG (20MJ-20MJ-2...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/8-12 |
| THREAD 3 DRILL IN | 1.078 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20 |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 4.340 |
| OVERALL LENGTH L2 IN | 3.120 |
| CENTERLINE LENGTH M IN | 2.170 |
| CENTERLINE LENGTH M2 IN | 2.170 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.2 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-20-20-20-FG-BB
$629.46Attribute: 2703-LN-20-20-20-FG-BB (20MJ-20M...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/8-12 |
| THREAD 3 DRILL IN | 1.078 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20-BB |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 4.340 |
| OVERALL LENGTH L2 IN | 3.120 |
| CENTERLINE LENGTH M IN | 2.170 |
| CENTERLINE LENGTH M2 IN | 2.170 |
| SHAPE | TEE |
| BODY MATERIAL | COATED STEEL |
| RAW MATERIAL TYPE | CARBON STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.1228 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-20-20-20-SS
$1,201.33Attribute: 2703-LN-20-20-20-SS (20MJ-20MJ-2...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/8-12 |
| THREAD 3 DRILL IN | 1.078 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-20-SS |
| BODY HEX IN | 1.625 |
| C HEX 1 IN | 1.875 |
| OVERALL LENGTH L IN | 4.340 |
| OVERALL LENGTH L2 IN | 3.120 |
| CENTERLINE LENGTH M IN | 2.170 |
| CENTERLINE LENGTH M2 IN | 2.170 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-24-24-24-FG
$207.67Attribute: 2703-LN-24-24-24-FG (24MJ-24MJ-2...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-7/8-12 |
| THREAD 3 DRILL IN | 1.312 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24 |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 4.680 |
| OVERALL LENGTH L2 IN | 3.420 |
| CENTERLINE LENGTH M IN | 2.340 |
| CENTERLINE LENGTH M2 IN | 2.340 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.8002 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-24-24-24-SS
$1,475.49Attribute: 2703-LN-24-24-24-SS (24MJ-24MJ-2...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-7/8-12 |
| THREAD 3 DRILL IN | 1.312 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-24-SS |
| BODY HEX IN | 1.875 |
| C HEX 1 IN | 2.125 |
| OVERALL LENGTH L IN | 4.680 |
| OVERALL LENGTH L2 IN | 3.420 |
| CENTERLINE LENGTH M IN | 2.340 |
| CENTERLINE LENGTH M2 IN | 2.340 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-32-32-32-FG
$625.34Attribute: 2703-LN-32-32-32-FG (32MJ-32MJ-3...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 2-1/2-12 |
| THREAD 3 DRILL IN | 1.781 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-32 |
| BODY HEX IN | 2.500 |
| C HEX 1 IN | 2.750 |
| OVERALL LENGTH L IN | 5.780 |
| OVERALL LENGTH L2 IN | 4.110 |
| CENTERLINE LENGTH M IN | 2.890 |
| CENTERLINE LENGTH M2 IN | 2.890 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 3.0567 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2703-LN-32-32-32-SS
$3,014.39Attribute: 2703-LN-32-32-32-SS (32MJ-32MJ-3...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 2-1/2-12 |
| THREAD 3 DRILL IN | 1.781 |
| THREAD 3 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-32-SS |
| BODY HEX IN | 2.500 |
| C HEX 1 IN | 2.750 |
| OVERALL LENGTH L IN | 5.780 |
| OVERALL LENGTH L2 IN | 4.110 |
| CENTERLINE LENGTH M IN | 2.890 |
| CENTERLINE LENGTH M2 IN | 2.890 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC |
|---|---|
| Shape | Tee |
PDF Documents
No PDF documents scraped.
