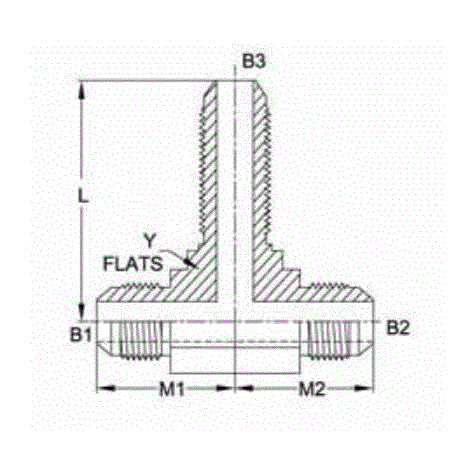

2703-FG

2703-03-03-03-FG

$16.24

Attribute: 2703-03-03-03-FG (03MJ-03MJ-03MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.880
OVERALL LENGTH L2 IN	1.500
CENTERLINE LENGTH M IN	0.940
CENTERLINE LENGTH M2 IN	0.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-03-03-03-FG-BB

$75.89

Attribute: 2703-03-03-03-FG-BB (03MJ-03MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.880
OVERALL LENGTH L2 IN	1.500
CENTERLINE LENGTH M IN	0.940
CENTERLINE LENGTH M2 IN	0.940
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-03-03-03-SS

$56.16

Attribute: 2703-03-03-03-SS (03MJ-03MJ-03MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.880
OVERALL LENGTH L2 IN	1.500
CENTERLINE LENGTH M IN	0.940
CENTERLINE LENGTH M2 IN	0.940
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0929
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-04-04-04-FG

$17.92

Attribute: 2703-04-04-04-FG (04MJ-04MJ-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.940
OVERALL LENGTH L2 IN	1.590
CENTERLINE LENGTH M IN	0.970
CENTERLINE LENGTH M2 IN	0.970
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.106
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-04-04-04-FG-BB

$61.90

Attribute: 2703-04-04-04-FG-BB (04MJ-04MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.940
OVERALL LENGTH L2 IN	1.590
CENTERLINE LENGTH M IN	0.970
CENTERLINE LENGTH M2 IN	0.970
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.106
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-04-04-04-SS

$114.10

Attribute: 2703-04-04-04-SS (04MJ-04MJ-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.940
OVERALL LENGTH L2 IN	1.590
CENTERLINE LENGTH M IN	0.970
CENTERLINE LENGTH M2 IN	0.970
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-04-04-06-FG

$24.37

Attribute: 2703-04-04-06-FG (04MJ-04MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.160
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.080
CENTERLINE LENGTH M2 IN	1.080
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-04-04-06-FG-BB

$59.98

Attribute: 2703-04-04-06-FG-BB (04MJ-04MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.160
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.080
CENTERLINE LENGTH M2 IN	1.080
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-05-05-05-FG

$42.68

Attribute: 2703-05-05-05-FG (05MJ-05MJ-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	1.720
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-05-05-05-FG-BB

$232.27

Attribute: 2703-05-05-05-FG-BB (05MJ-05MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	1.720
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-05-05-05-SS

$285.56

Attribute: 2703-05-05-05-SS (05MJ-05MJ-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	1.720
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-06-06-06-FG

$19.89

Attribute: 2703-06-06-06-FG (06MJ-06MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.180
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-06-06-06-FG-BB

$73.00

Attribute: 2703-06-06-06-FG-BB (06MJ-06MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.180
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-06-06-06-SS

$226.29

Attribute: 2703-06-06-06-SS (06MJ-06MJ-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.180
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.090
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-06-06-08-FG

$42.35

Attribute: 2703-06-06-08-FG (06MJ-06MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.540
OVERALL LENGTH L2 IN	2.120
CENTERLINE LENGTH M IN	1.270
CENTERLINE LENGTH M2 IN	1.270
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.18
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-08-08-08-FG

$24.81

Attribute: 2703-08-08-08-FG (08MJ-08MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.720
OVERALL LENGTH L2 IN	2.110
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3562
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-08-08-08-FG-BB

$112.82

Attribute: 2703-08-08-08-FG-BB (08MJ-08MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.720
OVERALL LENGTH L2 IN	2.110
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.3562
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-08-08-08-SS

$305.24

Attribute: 2703-08-08-08-SS (08MJ-08MJ-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.720
OVERALL LENGTH L2 IN	2.110
CENTERLINE LENGTH M IN	1.360
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.6812
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-08-08-10-FG

$51.66

Attribute: 2703-08-08-10-FG (08MJ-08MJ-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.660
OVERALL LENGTH L2 IN	2.390
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	1.330
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-08-08-12-SS

$462.05

Attribute: 2703-08-08-12-SS (08MJ-08MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.840
OVERALL LENGTH L2 IN	2.670
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.420
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-10-10-10-FG

$49.02

Attribute: 2703-10-10-10-FG (10MJ-10MJ-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	3.120
OVERALL LENGTH L2 IN	2.390
CENTERLINE LENGTH M IN	1.560
CENTERLINE LENGTH M2 IN	1.560
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5437
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-10-10-10-FG-BB

$248.80

Attribute: 2703-10-10-10-FG-BB (10MJ-10MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	3.120
OVERALL LENGTH L2 IN	2.390
CENTERLINE LENGTH M IN	1.560
CENTERLINE LENGTH M2 IN	1.560
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.5437
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-12-12-12-FG

$71.08

Attribute: 2703-12-12-12-FG (12MJ-12MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.560
OVERALL LENGTH L2 IN	2.670
CENTERLINE LENGTH M IN	1.780
CENTERLINE LENGTH M2 IN	1.780
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.8562
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-12-12-12-FG-BB

$236.51

Attribute: 2703-12-12-12-FG-BB (12MJ-12MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.560
OVERALL LENGTH L2 IN	2.670
CENTERLINE LENGTH M IN	1.780
CENTERLINE LENGTH M2 IN	1.780
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.8562
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-12-12-12-SS

$457.78

Attribute: 2703-12-12-12-SS (12MJ-12MJ-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.560
OVERALL LENGTH L2 IN	2.670
CENTERLINE LENGTH M IN	1.780
CENTERLINE LENGTH M2 IN	1.780
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-16-16-16-FG

$122.47

Attribute: 2703-16-16-16-FG (16MJ-16MJ-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.880
OVERALL LENGTH L2 IN	2.800
CENTERLINE LENGTH M IN	1.940
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-16-16-16-FG-BB

$850.50

Attribute: 2703-16-16-16-FG-BB (16MJ-16MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.880
OVERALL LENGTH L2 IN	2.800
CENTERLINE LENGTH M IN	1.940
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-16-16-16-SS

$813.87

Attribute: 2703-16-16-16-SS (16MJ-16MJ-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.880
OVERALL LENGTH L2 IN	2.800
CENTERLINE LENGTH M IN	1.940
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-20-20-20-FG

$190.40

Attribute: 2703-20-20-20-FG (20MJ-20MJ-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.340
OVERALL LENGTH L2 IN	3.120
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	2.170
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.95
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-20-20-20-FG-BB

$605.23

Attribute: 2703-20-20-20-FG-BB (20MJ-20MJ-2...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.340
OVERALL LENGTH L2 IN	3.120
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	2.170
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.95
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-20-20-20-SS

$1,108.91

Attribute: 2703-20-20-20-SS (20MJ-20MJ-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.340
OVERALL LENGTH L2 IN	3.120
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	2.170
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-24-24-24-FG

$224.16

Attribute: 2703-24-24-24-FG (24MJ-24MJ-24MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.680
OVERALL LENGTH L2 IN	3.420
CENTERLINE LENGTH M IN	2.340
CENTERLINE LENGTH M2 IN	2.340
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.6562
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-24-24-24-SS

$1,353.50

Attribute: 2703-24-24-24-SS (24MJ-24MJ-24MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.680
OVERALL LENGTH L2 IN	3.420
CENTERLINE LENGTH M IN	2.340
CENTERLINE LENGTH M2 IN	2.340
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-32-32-32-FG

$633.17

Attribute: 2703-32-32-32-FG (32MJ-32MJ-32MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	5.780
OVERALL LENGTH L2 IN	4.110
CENTERLINE LENGTH M IN	2.890
CENTERLINE LENGTH M2 IN	2.890
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.6562
CALIFORNIA RESIDENTS	PROP-65 WARNING

2703-32-32-32-SS

$2,855.46

Attribute: 2703-32-32-32-SS (32MJ-32MJ-32MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	5.780
OVERALL LENGTH L2 IN	4.110
CENTERLINE LENGTH M IN	2.890
CENTERLINE LENGTH M2 IN	2.890
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Tee

ID	10141942
Category	Tube Fittings and Adapters

Description

Description

Variations (35)

2703-03-03-03-FG

2703-03-03-03-FG-BB

2703-03-03-03-SS

2703-04-04-04-FG

2703-04-04-04-FG-BB

2703-04-04-04-SS

2703-04-04-06-FG

2703-04-04-06-FG-BB

2703-05-05-05-FG

2703-05-05-05-FG-BB

2703-05-05-05-SS

2703-06-06-06-FG

2703-06-06-06-FG-BB

2703-06-06-06-SS

2703-06-06-08-FG

2703-08-08-08-FG

2703-08-08-08-FG-BB

2703-08-08-08-SS

2703-08-08-10-FG

2703-08-08-12-SS

2703-10-10-10-FG

2703-10-10-10-FG-BB

2703-12-12-12-FG

2703-12-12-12-FG-BB

2703-12-12-12-SS

2703-16-16-16-FG

2703-16-16-16-FG-BB

2703-16-16-16-SS

2703-20-20-20-FG

2703-20-20-20-FG-BB

2703-20-20-20-SS

2703-24-24-24-FG

2703-24-24-24-SS

2703-32-32-32-FG

2703-32-32-32-SS

General Attributes

PDF Documents
