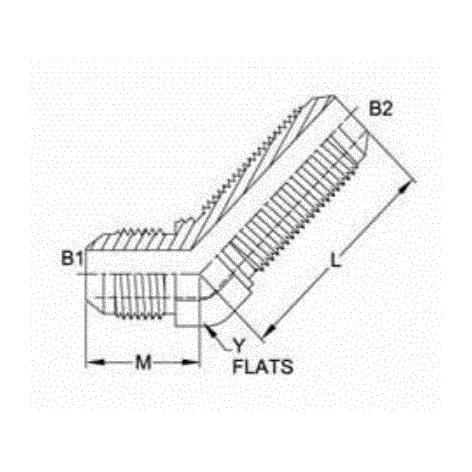

2702-FG

2702-02-02-SS

$35.10

Attribute: 2702-02-02-SS (02MJ-02MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-03-03-FG

$13.29

Attribute: 2702-03-03-FG (03MJ-03MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	0.690
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-03-03-FG-BB

$64.25

Attribute: 2702-03-03-FG-BB (03MJ-03MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	0.690
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-03-03-SS

$474.52

Attribute: 2702-03-03-SS (03MJ-03MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	0.690
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-04-04-FG

$8.61

Attribute: 2702-04-04-FG (04MJ-04MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.530
CENTERLINE LENGTH M IN	0.720
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.068
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-04-04-FG-BB

$56.89

Attribute: 2702-04-04-FG-BB (04MJ-04MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.530
CENTERLINE LENGTH M IN	0.720
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.068
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-04-04-SS

$141.22

Attribute: 2702-04-04-SS (04MJ-04MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.530
CENTERLINE LENGTH M IN	0.720
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-05-05-FG

$15.95

Attribute: 2702-05-05-FG (05MJ-05MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	0.770
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-05-05-FG-BB

$137.21

Attribute: 2702-05-05-FG-BB (05MJ-05MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	0.770
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-06-06-FG

$12.55

Attribute: 2702-06-06-FG (06MJ-06MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.670
CENTERLINE LENGTH M IN	0.830
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-06-06-FG-BB

$55.79

Attribute: 2702-06-06-FG-BB (06MJ-06MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.670
CENTERLINE LENGTH M IN	0.830
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-06-06-SS

$122.12

Attribute: 2702-06-06-SS (06MJ-06MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.670
CENTERLINE LENGTH M IN	0.830
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2875
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-08-08-FG

$18.26

Attribute: 2702-08-08-FG (08MJ-08MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-08-08-FG-BB

$91.83

Attribute: 2702-08-08-FG-BB (08MJ-08MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-08-08-FG-ZN

$17.06

Attribute: 2702-08-08-FG-ZN (08MJ-08MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	ZINC NICKEL
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-08-08-SS

$144.03

Attribute: 2702-08-08-SS (08MJ-08MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.24
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-10-10-FG

$24.27

Attribute: 2702-10-10-FG (10MJ-10MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.170
CENTERLINE LENGTH M IN	1.110
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-10-10-FG-BB

$76.19

Attribute: 2702-10-10-FG-BB (10MJ-10MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.170
CENTERLINE LENGTH M IN	1.110
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-12-12-FG

$33.18

Attribute: 2702-12-12-FG (12MJ-12MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.440
CENTERLINE LENGTH M IN	1.280
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-12-12-FG-BB

$111.16

Attribute: 2702-12-12-FG-BB (12MJ-12MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.440
CENTERLINE LENGTH M IN	1.280
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.5687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-12-12-SS

$519.61

Attribute: 2702-12-12-SS (12MJ-12MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.440
CENTERLINE LENGTH M IN	1.280
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-16-16-FG

$60.20

Attribute: 2702-16-16-FG (16MJ-16MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.560
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.8062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-16-16-FG-BB

$216.64

Attribute: 2702-16-16-FG-BB (16MJ-16MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.560
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.8062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-16-16-SS

$660.15

Attribute: 2702-16-16-SS (16MJ-16MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	2.560
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-20-20-FG

$112.03

Attribute: 2702-20-20-FG (20MJ-20MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.650
CENTERLINE LENGTH M IN	1.590
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-20-20-FG-BB

$738.19

Attribute: 2702-20-20-FG-BB (20MJ-20MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.650
CENTERLINE LENGTH M IN	1.590
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-20-20-SS

$916.60

Attribute: 2702-20-20-SS (20MJ-20MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.650
CENTERLINE LENGTH M IN	1.590
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-24-24-FG

$164.51

Attribute: 2702-24-24-FG (24MJ-24MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-24-24-FG-BB

$1,222.65

Attribute: 2702-24-24-FG-BB (24MJ-24MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-24-24-SS

$1,016.51

Attribute: 2702-24-24-SS (24MJ-24MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.670
CENTERLINE LENGTH M IN	1.780
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-32-32-FG

$395.96

Attribute: 2702-32-32-FG (32MJ-32MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	2.910
CENTERLINE LENGTH M IN	2.220
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.3125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-32-32-FG-BB

$1,790.94

Attribute: 2702-32-32-FG-BB (32MJ-32MJ Bulk...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	2.910
CENTERLINE LENGTH M IN	2.220
SHAPE	45 DEGREE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	3.3125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2702-32-32-SS

$2,284.37

Attribute: 2702-32-32-SS (32MJ-32MJ Bulkhea...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	2.910
CENTERLINE LENGTH M IN	2.220
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Elbow

ID	10141905
Category	Tube Fittings and Adapters

Description

Description

Variations (33)

2702-02-02-SS

2702-03-03-FG

2702-03-03-FG-BB

2702-03-03-SS

2702-04-04-FG

2702-04-04-FG-BB

2702-04-04-SS

2702-05-05-FG

2702-05-05-FG-BB

2702-06-06-FG

2702-06-06-FG-BB

2702-06-06-SS

2702-08-08-FG

2702-08-08-FG-BB

2702-08-08-FG-ZN

2702-08-08-SS

2702-10-10-FG

2702-10-10-FG-BB

2702-12-12-FG

2702-12-12-FG-BB

2702-12-12-SS

2702-16-16-FG

2702-16-16-FG-BB

2702-16-16-SS

2702-20-20-FG

2702-20-20-FG-BB

2702-20-20-SS

2702-24-24-FG

2702-24-24-FG-BB

2702-24-24-SS

2702-32-32-FG

2702-32-32-FG-BB

2702-32-32-SS

General Attributes

PDF Documents
