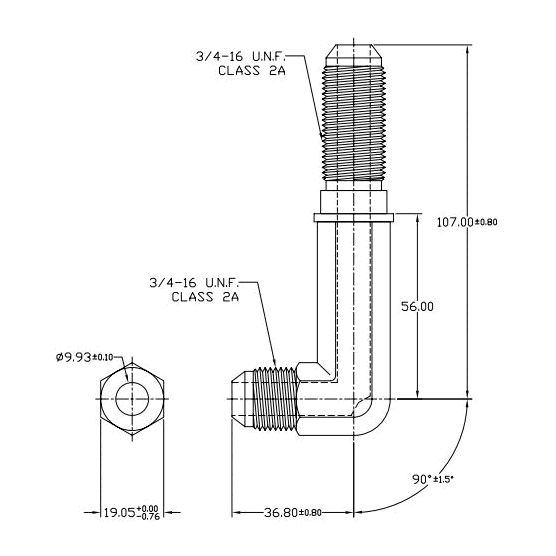

MJ-MJ Bulkhead 90 Elbow Long With Bulkhead Locknut
Description
Variations (1)
2701-L-LN-08-08-FG
$0.00Attribute: 2701-L-LN-08-08-FG (08MJ-08MJ Bl...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 4 SPECIFICATION | LOCKNUT 0306-08 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 4.213 |
| CENTERLINE LENGTH M IN | 1.449 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | JIC |
|---|---|
| Shape | Elbow |
